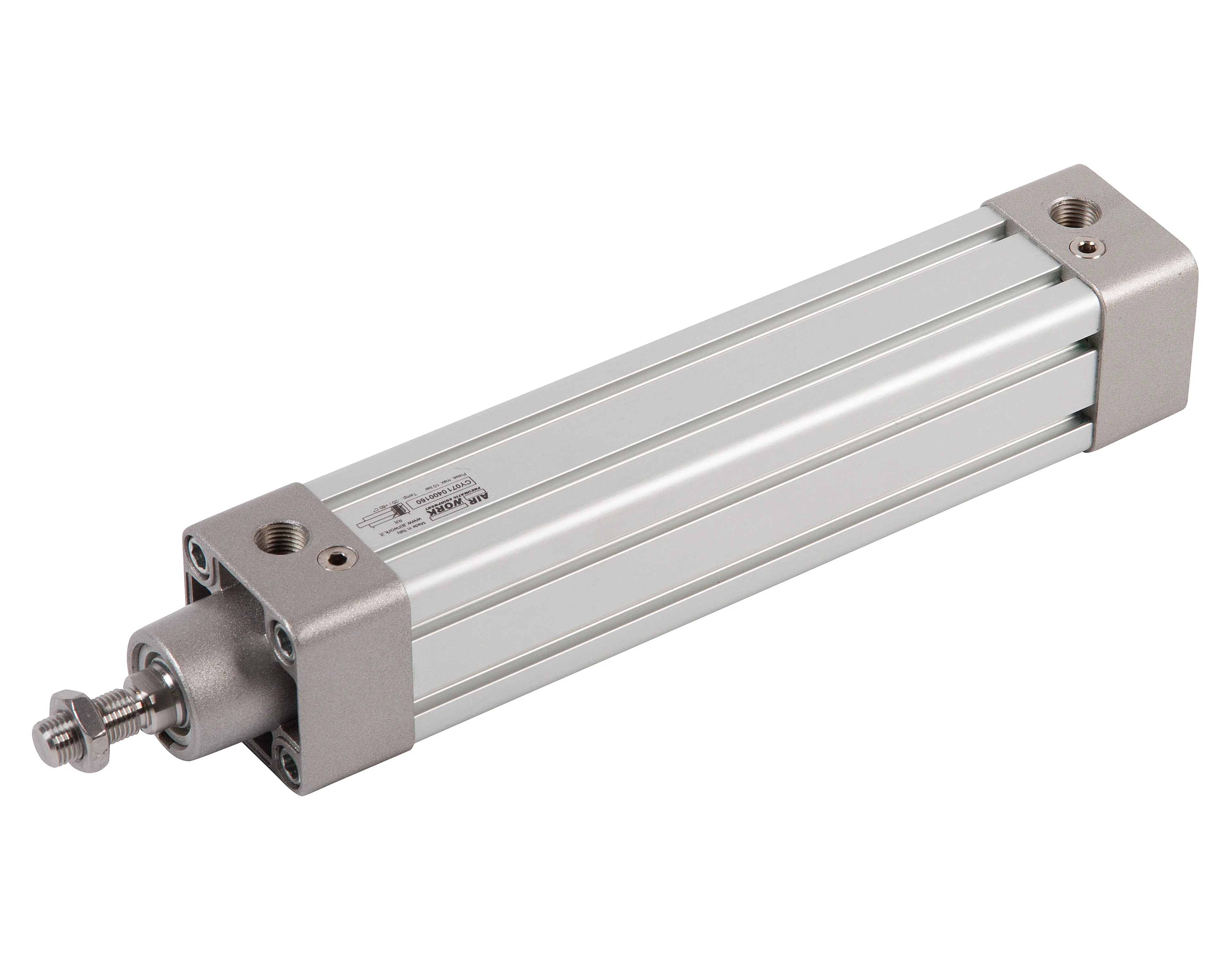

AW-CY - Pneumatiska cylindrar ISO15552
Ersatt av en annan produkt
Ersättande produkter:
Dubbelverkande pneumatisk cylinder från Airwork enligt ISO 15552.
- tätningar PU/NBR
- Fråga även efter andra storlekar och material!
- Tillval: aluminiumkolv, bälg, metallavstrykare, tandem, lås
- Motsvarar bl.a. SMC C95 C92 CP95, Festo DNC CDN DNG, Metal Work 120 serie, Camozzi 60M2L 61M2P 62 40M2L 41M2P, Pneumax serie 1319 1320 1321, Univer K KD, Pimatic P2520 P2020
- CY-modellen har två spår på varje sida för montering av givare
| Kod | Kolv Ø (mm) | Slag (mm) | Portar | Adaptergänga | Kolvmaterial | Förpackningsstorlek (KPL) |
|---|---|---|---|---|---|---|
| AW-CY0110320025 | 32 | 25 | G 1/8" | M10x1,25 | PU | 1 |
| AW-CY0110320050 | 32 | 50 | G 1/8" | M10x1,25 | PU | 1 |
| AW-CY0110320080 | 32 | 80 | G 1/8" | M10x1,25 | PU | 1 |
| AW-CY0110320100 | 32 | 100 | G 1/8" | M10x1,25 | PU | 1 |
| AW-CY0110320125 | 32 | 125 | G 1/8" | M10x1,25 | PU | 1 |
| AW-CY0110320160 | 32 | 160 | G 1/8" | M10x1,25 | PU | 1 |
| AW-CY0110320200 | 32 | 200 | G 1/8" | M10x1,25 | PU | 1 |
| AW-CY0110320250 | 32 | 250 | G 1/8" | M10x1,25 | PU | 1 |
| AW-CY0110320300 | 32 | 300 | G 1/8" | M10x1,25 | PU | 1 |
| AW-CY0110320320 | 32 | 320 | G 1/8" | M10x1,25 | PU | 1 |
| AW-CY0110320400 | 32 | 400 | G 1/8" | M10x1,25 | PU | 1 |
| AW-CY0110320500 | 32 | 500 | G 1/8" | M10x1,25 | PU | 1 |
| AW-CY0110400025 | 40 | 25 | G 1/4" | M12x1,25 | PU | 1 |
| AW-CY0110400050 | 40 | 50 | G 1/4" | M12x1,25 | PU | 1 |
| AW-CY0110400080 | 40 | 80 | G 1/4" | M12x1,25 | PU | 1 |
| AW-CY0110400100 | 40 | 100 | G 1/4" | M12x1,25 | PU | 1 |
| AW-CY0110400125 | 40 | 125 | G 1/4" | M12x1,25 | PU | 1 |
| AW-CY0110400160 | 40 | 160 | G 1/4" | M12x1,25 | PU | 1 |
| AW-CY0110400200 | 40 | 200 | G 1/4" | M12x1,25 | PU | 1 |
| AW-CY0110400250 | 40 | 250 | G 1/4" | M12x1,25 | PU | 1 |
| AW-CY0110400300 | 40 | 300 | G 1/4" | M12x1,25 | PU | 1 |
| AW-CY0110400400 | 40 | 400 | G 1/4" | M12x1,25 | PU | 1 |
| AW-CY0110400500 | 40 | 500 | G 1/4" | M12x1,25 | PU | 1 |
| AW-CY0110400780 | 40 | 780 | G 1/4" | M12x1,25 | PU | 1 |
| AW-CY0110500050 | 50 | 50 | G 1/4" | M16x1,5 | PU | 1 |
| AW-CY0110500080 | 50 | 80 | G 1/4" | M16x1,5 | PU | 1 |
| AW-CY0110500100 | 50 | 100 | G 1/4" | M16x1,5 | PU | 1 |
| AW-CY0110500150 | 50 | 150 | G 1/4" | M16x1,5 | PU | 1 |
| AW-CY0110500160 | 50 | 160 | G 1/4" | M16x1,5 | PU | 1 |
| AW-CY0110500200 | 50 | 200 | G 1/4" | M16x1,5 | PU | 1 |
| AW-CY0110500250 | 50 | 250 | G 1/4" | M16x1,5 | PU | 1 |
| AW-CY0110500300 | 50 | 300 | G 1/4" | M16x1,5 | PU | 1 |
| AW-CY0110500320 | 50 | 320 | G 1/4" | M16x1,5 | PU | 1 |
| AW-CY0110500400 | 50 | 400 | G 1/4" | M16x1,5 | PU | 1 |
| AW-CY0110500500 | 50 | 500 | G 1/4" | M16x1,5 | PU | 1 |
| AW-CY0110630025 | 63 | 25 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110630050 | 63 | 50 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110630060 | 63 | 60 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110630080 | 63 | 80 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110630100 | 63 | 100 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110630125 | 63 | 125 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110630160 | 63 | 160 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110630200 | 63 | 200 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110630250 | 63 | 250 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110630300 | 63 | 300 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110630320 | 63 | 320 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110630600 | 63 | 600 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110631000 | 63 | 1000 | G 3/8" | M16x1,5 | PU | 1 |
| AW-CY0110800050 | 80 | 50 | G 3/8" | M20x1,5 | PU | 1 |
| AW-CY0110800100 | 80 | 100 | G 3/8" | M20x1,5 | PU | 1 |
| AW-CY0110800160 | 80 | 160 | G 3/8" | M20x1,5 | PU | 1 |
| AW-CY0110800200 | 80 | 200 | G 3/8" | M20x1,5 | PU | 1 |
| AW-CY0110800300 | 80 | 300 | G 3/8" | M20x1,5 | PU | 1 |
| AW-CY0110800400 | 80 | 400 | G 3/8" | M20x1,5 | PU | 1 |
| AW-CY0110800500 | 80 | 500 | G 3/8" | M20x1,5 | PU | 1 |
| AW-CY0110800800 | 80 | 800 | G 3/8'' | M20X1,5 | PU | 1 |
| AW-CY0110801000 | 80 | 1000 | G 3/8" | M20x1,5 | PU | 1 |
| AW-CY0111000050 | 100 | 50 | G 1/2" | M20x1,5 | PU | 1 |
| AW-CY0111000080 | 100 | 80 | G 1/2" | M20x1,5 | PU | 1 |
| AW-CY0111000100 | 100 | 100 | G 1/2" | M20x1,5 | PU | 1 |
| AW-CY0111000200 | 100 | 200 | G 1/2" | M20x1,5 | PU | 1 |
| AW-CY0111000300 | 100 | 300 | G 1/2" | M20x1,5 | PU | 1 |
| AW-CY0111000320 | 100 | 320 | G 1/2" | M20x1,5 | PU | 1 |
| AW-CY0111000400 | 100 | 400 | G 1/2" | M20x1,5 | PU | 1 |
| AW-CY0111000500 | 100 | 500 | G 1/2" | M20x1,5 | PU | 1 |
| AW-CY0111000600 | 100 | 600 | G 1/2" | M20x1,5 | PU | 1 |
| AW-CY0111001000 | 100 | 1000 | G 1/2" | M20x1,5 | PU | 1 |
| AW-CY0111250025 | 125 | 25 | G 1/2" | M27x2 | PU | 1 |
| AW-CY0111250450 | 125 | 450 | G 1/2" | M27x2 | PU | 1 |
| AW-CY0111250500 | 125 | 500 | G 1/2" | M27x2 | PU | 1 |
| AW-CY0111250550 | 125 | 550 | G 1/2" | M27x2 | PU | 1 |
| AW-CY01A0320250 | 32 | 250 | G 1/8" | M10x1,25 | Alumiini | 1 |
| AW-CY01A0400160 | 40 | 160 | G 1/4" | M12x1,25 | Alumiini | 1 |
| AW-CY01A0400320 | 40 | 320 | G 1/4" | M12x1,25 | Alumiini | 1 |
| AW-CY01A0500320 | 50 | 320 | G 1/4" | M16x1,5 | Alumiini | 1 |
| AW-CY01A0800200 | 80 | 200 | G 3/8" | M20x1,5 | Alumiini | 1 |
