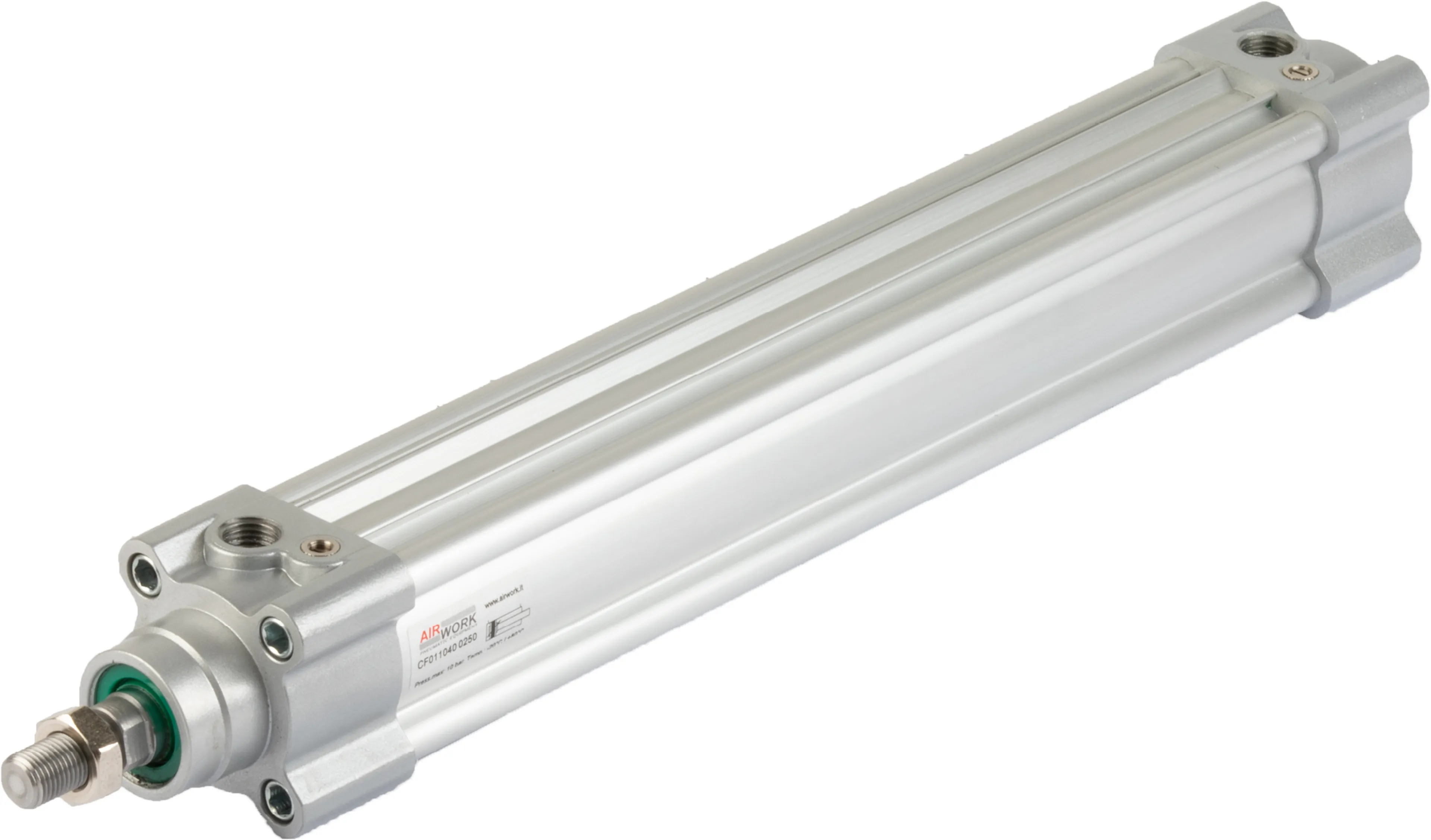

AW-CF - Pneumatisk cylinder ISO15552 kompakt profil
Airwork pneumatisk cylinder enligt ISO 15552 med kompakt profilrör.
- Aluminiumkolv med magnet som standard
- Två sensorspår, på två sidor
- Finns i ATEX-utförande
- Tätningsalternativ:
- Standardtätning PU -20°C +80°C, lämplig för de flesta användningsområden
- Högtemperaturtätning Viton -10°C +150°C, när cylindern sitter nära kraftiga värmekällor
- Köldtålig tätning PU -40C°+ 80C°, för kalla förhållanden
- Extrema förhållanden Metallskrapa -20°C +80°C, för extrema förhållanden, t.ex. svetssprut, is osv.
- Även andra längder på beställning
| Kod | Kolv Ø (mm) | Slag (mm) | Portar | Adaptergänga | Förpackningsstorlek (KPL) |
|---|---|---|---|---|---|
| AW-CF0110320025 | 32 | 25 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320050 | 32 | 50 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320080 | 32 | 80 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320100 | 32 | 100 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320125 | 32 | 125 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320150 | 32 | 150 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320160 | 32 | 160 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320200 | 32 | 200 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320250 | 32 | 250 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320300 | 32 | 300 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320320 | 32 | 320 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320350 | 32 | 350 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320400 | 32 | 400 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320500 | 32 | 500 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320600 | 32 | 600 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320700 | 32 | 700 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320800 | 32 | 800 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110320900 | 32 | 900 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110321000 | 32 | 1000 | G 1/8" | M10x1,25 | 1 |
| AW-CF0110400025 | 40 | 25 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400040 | 40 | 40 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400050 | 40 | 50 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400080 | 40 | 80 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400100 | 40 | 100 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400125 | 40 | 125 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400150 | 40 | 150 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400160 | 40 | 160 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400200 | 40 | 200 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400250 | 40 | 250 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400300 | 40 | 300 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400400 | 40 | 400 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400460 | 40 | 460 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400500 | 40 | 500 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400600 | 40 | 600 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400700 | 40 | 700 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400750 | 40 | 750 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400780 | 40 | 780 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400800 | 40 | 800 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110400900 | 30 | 900 | G 1/4" | M12x1,25 | 1 |
| AW-CF0110500005 | 50 | 5 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500010 | 50 | 10 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500025 | 50 | 25 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500040 | 50 | 40 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500050 | 50 | 50 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500060 | 50 | 60 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500080 | 50 | 80 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500100 | 50 | 100 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500125 | 50 | 124 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500150 | 50 | 150 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500160 | 50 | 160 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500200 | 50 | 200 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500250 | 50 | 250 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500300 | 50 | 300 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500320 | 50 | 320 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500400 | 50 | 400 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500500 | 50 | 500 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500600 | 50 | 600 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500700 | 50 | 700 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110500800 | 50 | 800 | G 1/4" | M16x1,5 | 1 |
| AW-CF0110630025 | 63 | 25 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630050 | 63 | 50 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630080 | 63 | 80 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630100 | 63 | 100 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630125 | 63 | 125 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630150 | 63 | 150 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630160 | 63 | 160 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630200 | 63 | 200 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630250 | 63 | 250 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630300 | 63 | 300 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630320 | 63 | 320 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630350 | 63 | 350 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630400 | 63 | 400 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630500 | 63 | 500 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630550 | 63 | 550 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630600 | 63 | 600 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630700 | 63 | 700 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630800 | 63 | 800 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110630900 | 63 | 900 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110631000 | 63 | 1000 | G 3/8" | M16x1,5 | 1 |
| AW-CF0110800010 | 80 | 10 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800025 | 80 | 25 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800040 | 80 | 40 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800050 | 80 | 50 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800080 | 80 | 80 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800100 | 80 | 100 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800125 | 80 | 125 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800150 | 80 | 150 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800160 | 80 | 160 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800200 | 80 | 200 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800250 | 80 | 250 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800300 | 80 | 300 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800320 | 80 | 320 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800350 | 80 | 350 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800450 | 80 | 450 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800500 | 80 | 500 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800600 | 80 | 600 | G 3/8" | M20x1,5 | 1 |
| AW-CF0110800700 | 80 | 700 | G 3/8" | M20x1,5 | 1 |
| AW-CF0111000010 | 100 | 10 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000025 | 100 | 25 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000030 | 100 | 30 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000040 | 100 | 40 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000050 | 100 | 50 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000080 | 100 | 80 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000100 | 100 | 100 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000125 | 100 | 125 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000150 | 100 | 150 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000160 | 100 | 160 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000200 | 100 | 200 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000240 | 100 | 240 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000250 | 100 | 250 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000300 | 100 | 300 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000320 | 100 | 320 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000350 | 100 | 350 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000400 | 100 | 400 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000500 | 100 | 500 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000600 | 100 | 600 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000700 | 100 | 700 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000800 | 100 | 800 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111000900 | 100 | 900 | G 1/2" | M20x1,5 | 1 |
| AW-CF0111001000 | 100 | 1000 | G 1/2" | M20x1,5 | 1 |
