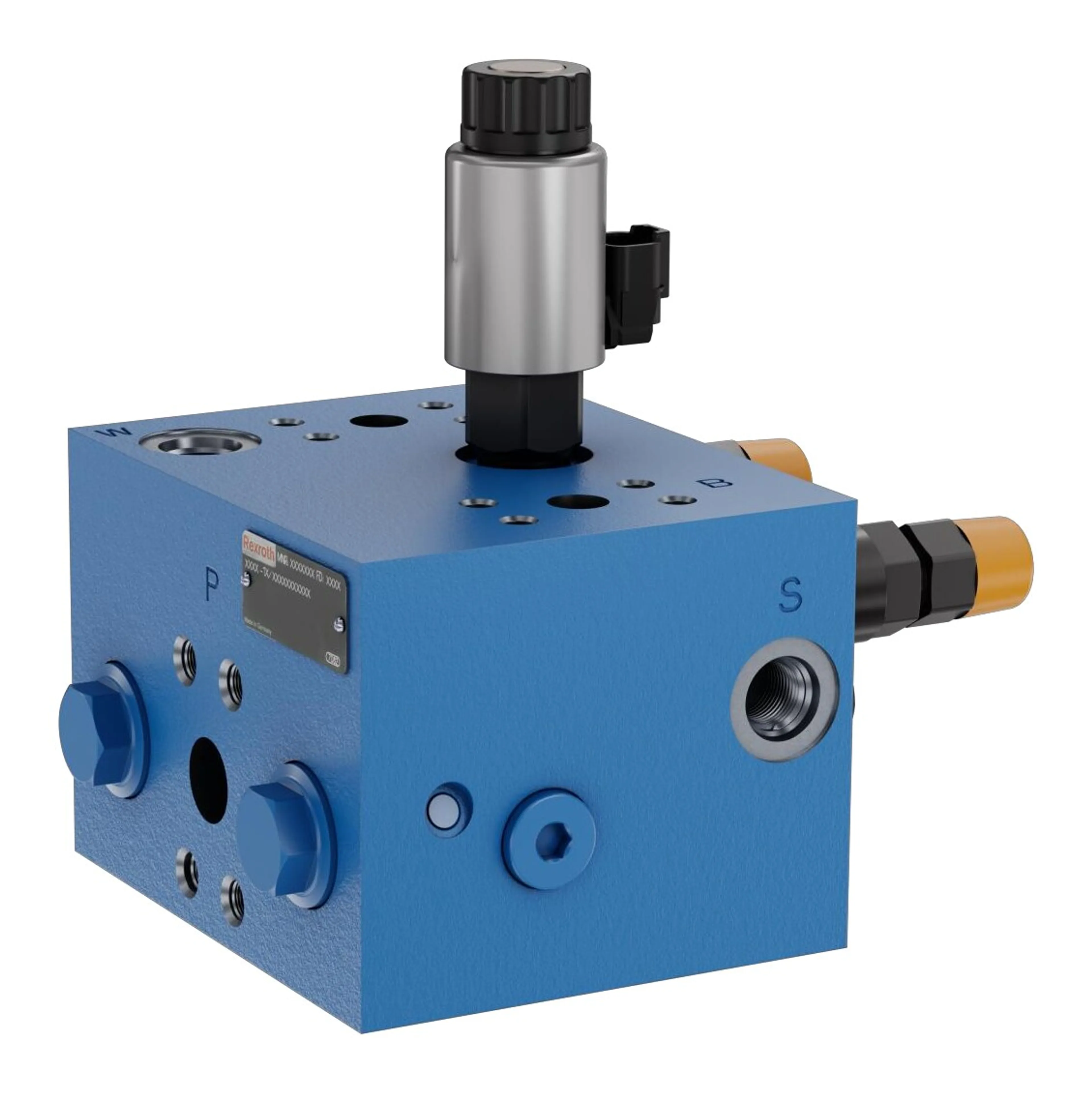

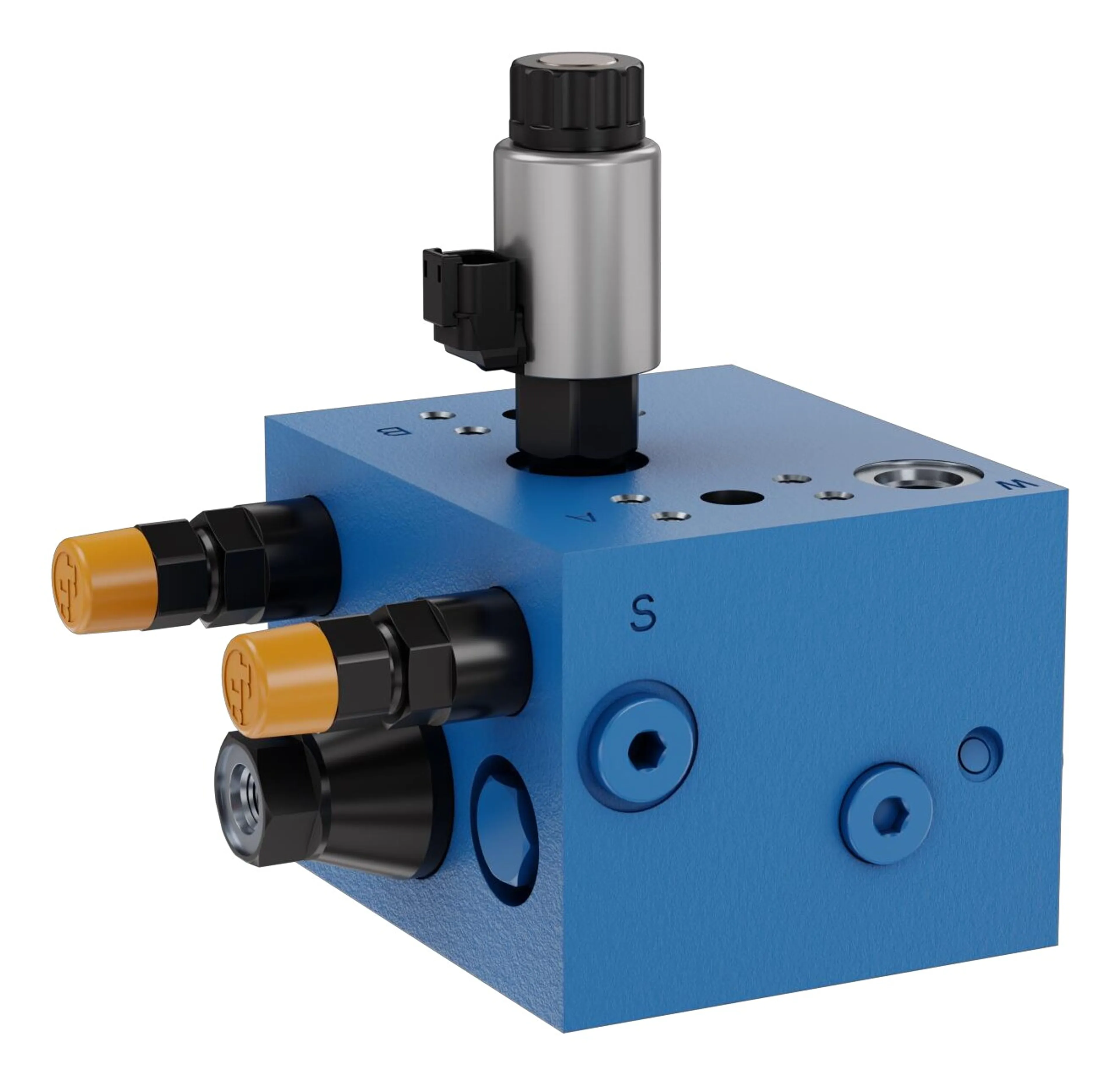

RTM16 - Traction module (flow divider) 4-fold Bosch Rexroth
The Bosch Rexroth RTM traction module is a hydraulic differential lock for hydrostatically propelled vehicles. The double-acting (dividing and summing) flow divider protects hydraulic motors from overspinning and synchronises parallel consumers.
- Size 16, 4 consumers, division ratio 25/25/25/25 %
- Nominal flow 160 l/min
- Maximum working pressure 500 bar
- Pressure relief/feed valves 420 bar
- With free-wheel function
- Division accuracy control with proportional orifice 24 V, Deutsch DT04-2P connector
- Pressure compensators in parallel: low pressure drop, no interference between consumers
- SAE flange connections ISO 6162-2, FKM seals
- For open and closed circuits, e.g. rollers, milling machines and special machines
| Code | Factory code | Package size (KPL) |
|---|---|---|
| 32-R901367120 | RTM16S4A-1X/160H420A2A911SSA2S2V4 | 1 |
