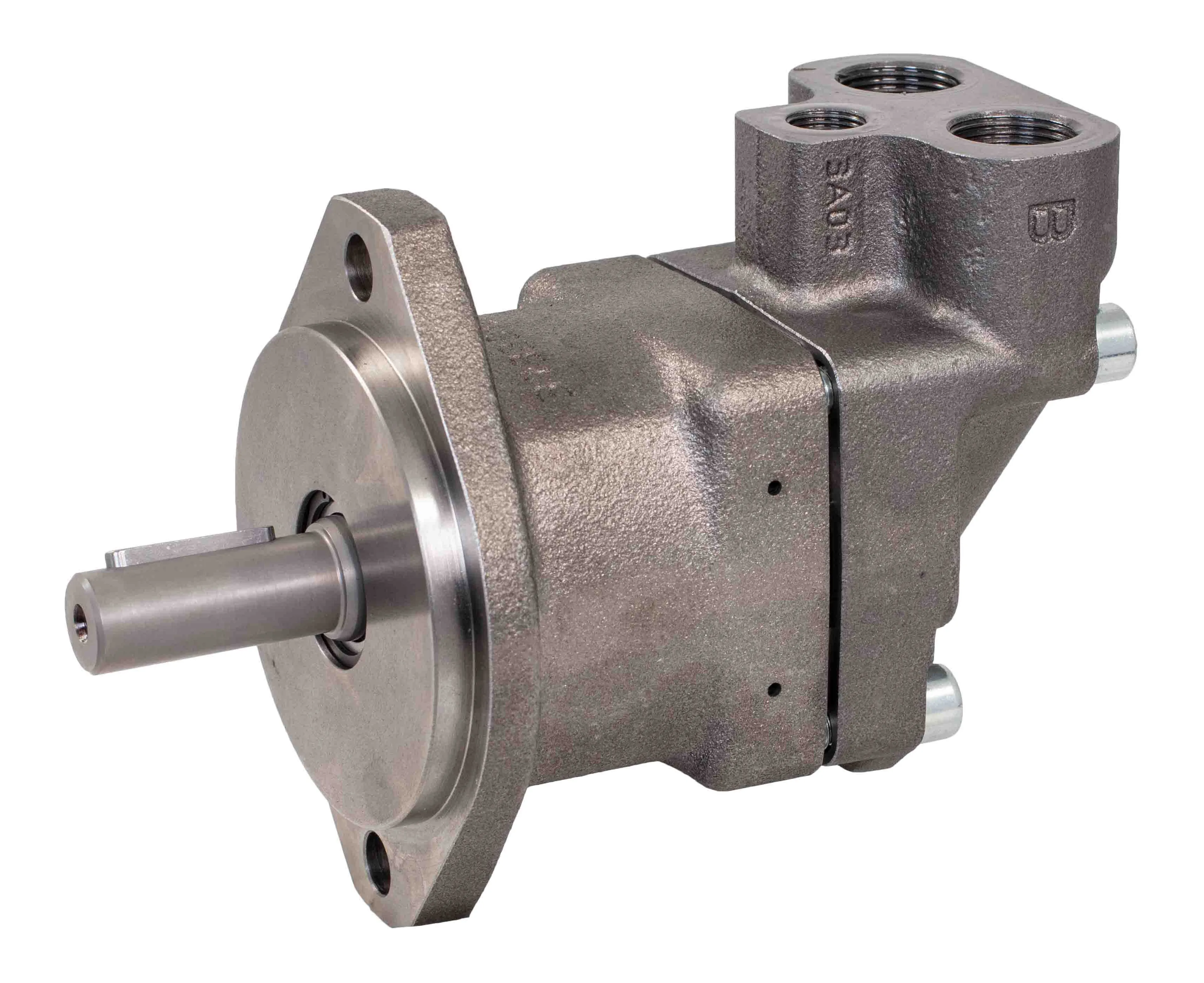

Parker F11 - Cetop - piston motor with cylindrical shaft
Parker F11 axial piston motor, e.g. for saw applications. The drain connection must be connected in both pump and motor operation.
- Cetop mounting
- BSP 3/4" working connections
- 3707249 = F11-005-MB-CV-K-000-0000-00
- 3706030 = F11-010-MB-CV-K-000-0000-00
- 3786585 = F11-014-SB-CV-K-000-0000-P0
- 3707893 = F11-019-MB-CV-K-000-0000-00
| Code | Flange outer Ø (mm) | Displacement (cm3/r) | Max. oper. press. (bar) | Max. r/min continuous/ intermittent | Shaft | Factory code | Package size (KPL) |
|---|---|---|---|---|---|---|---|
| 32-F11-005-MB-CV-K | 100 | 4,9 | 350/420 | 12800/14000 | 18mm | 3707249 | 1 |
| 32-F11-010-MB-CV-K | 100 | 9,8 | 350/420 | 11200/10200 | 20mm | 3706030 | 1 |
| 32-F11-014-SB-CV-K-0 | 100 | 14,3 | 350/420 | 9000 / 9900 | 25mm | 3786585 | 1 |
| 32-F11-019-MB-CV-K | 112 | 19,0 | 350/420 | 8100/8900 | 25mm | 3707893 | 1 |
