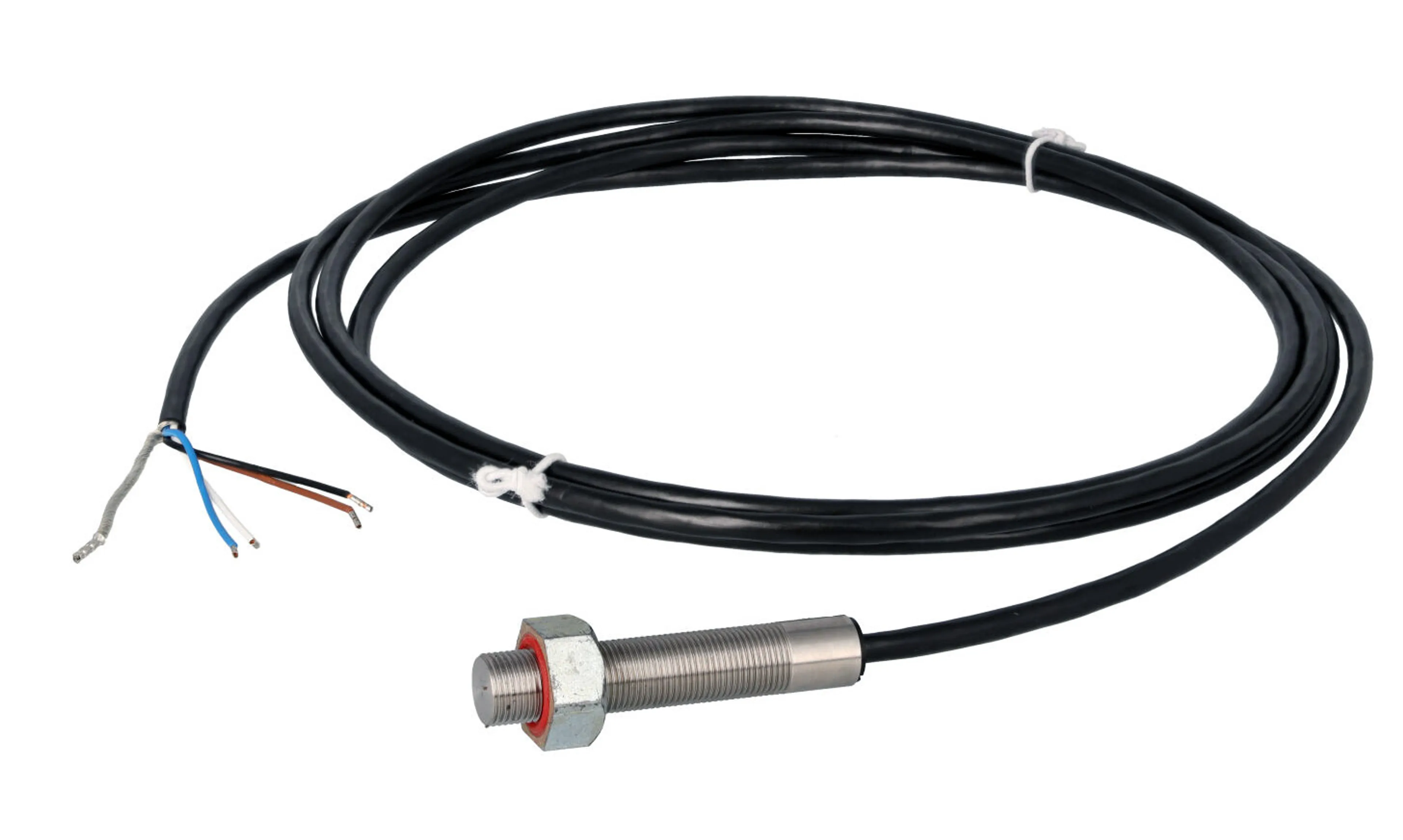

3785190 - Parker speed and direction sensor
Parker motor inductive speed and direction sensor (dual channel)
The Parker 3785190 is a dual-channel ferrostat differential sensor that measures both rotational speed and direction. The sensor installs in a threaded hole in the F12, V12 and V14 bearing housing and in the F11 barrel housing. The output is two phase-shifted square waves over a frequency range of 0 Hz to 15 kHz.
Technical data
- Function: speed + direction of rotation (Dual Channel)
- Power supply: 8–32 V (reverse-polarity protected)
- Current consumption: max 20 mA (without load)
- Output: 2 phase-shifted square waves, NPN open-collector (10 kΩ pull-up)
- Frequency range: 0 Hz…15 kHz
- Operating temperature: −40…+125 °C
- Protection class: IP68 (DIN 40050)
- Sensor head max pressure: 25 bar
- Sensing distance: 0.1–2.0 mm (1.0 mm recommended)
- Thread: M12x1
- Cable: PUR, 2.5 m, 4 wires + screen
- Weight: 0.15 kg (incl. cable)
Suitable for Parker F11, F12, V12 and V14 piston motors. Note: the screen must be connected to 0 V.
| Code | Function | Outer thread | Cable length (m) | Factory code | Package size (KPL) |
|---|---|---|---|---|---|
| PA-3785190 | Nopeus + suunta (NPN) | M12x1 | 2,5m | 3785190 | 1 |
