PDV74 - Proportional sectional valve

Details summary

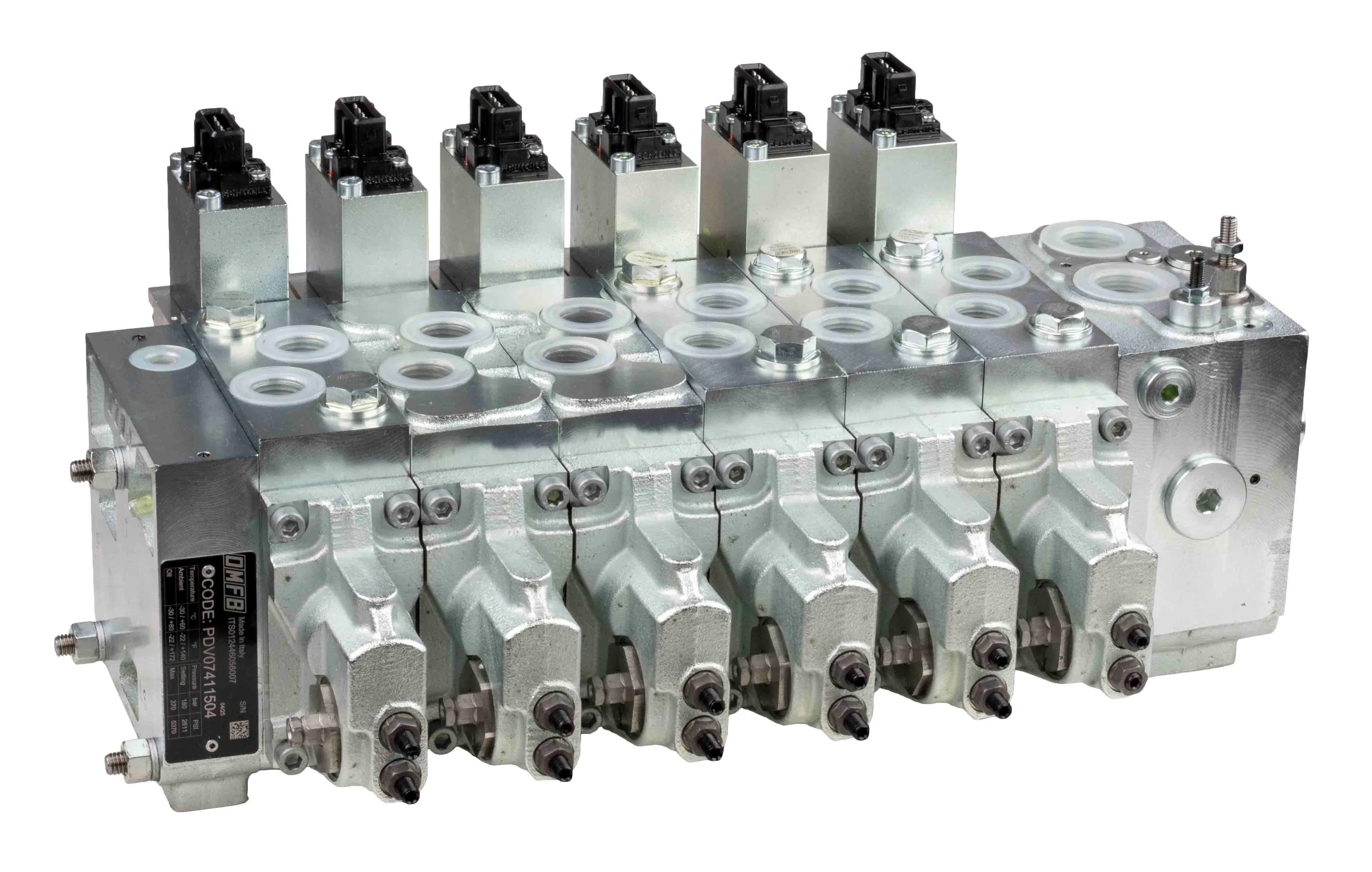

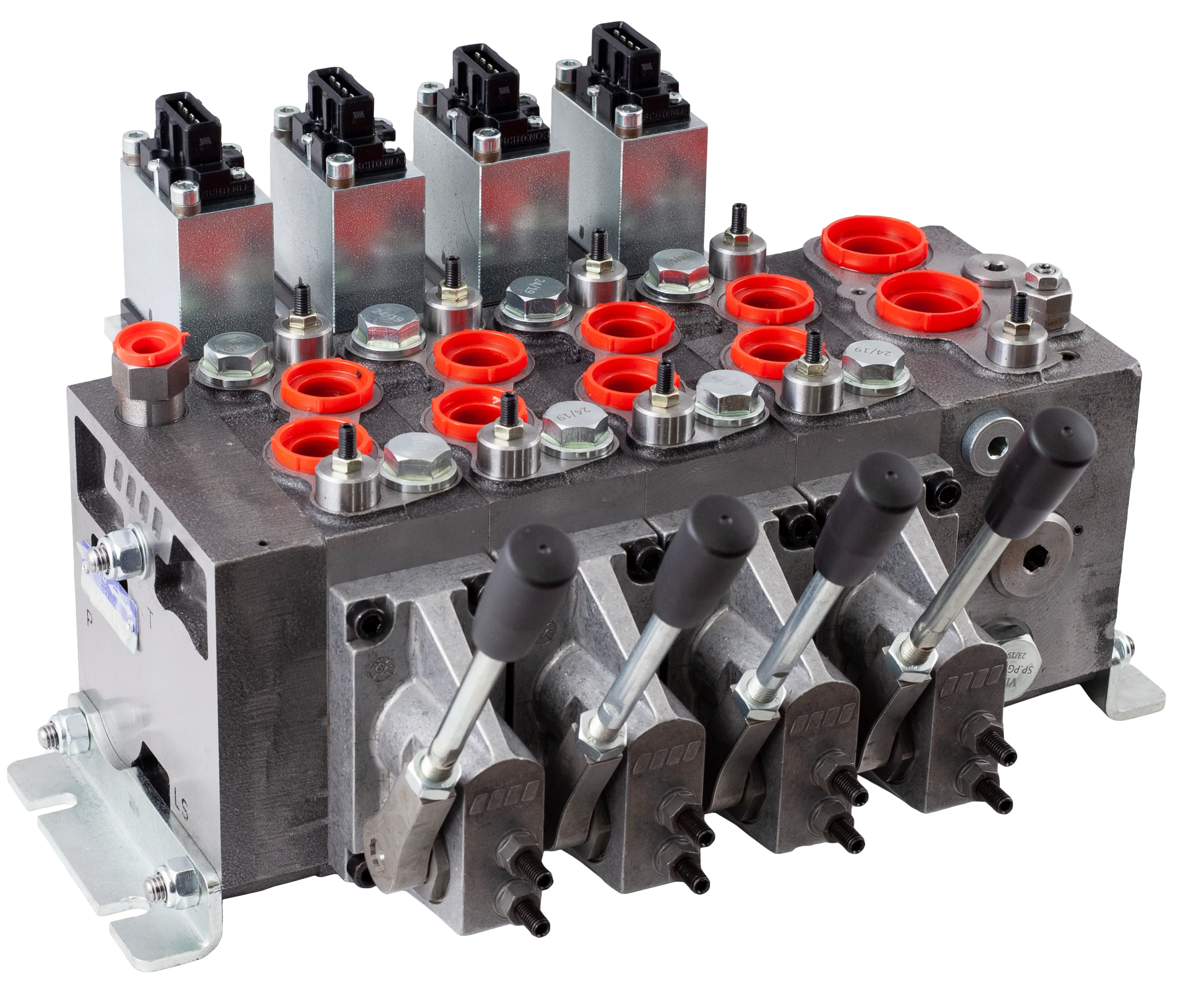

Proportional directional valve assembled from sections.

OMFB PDV 74
Standard PWM current control 12V 200-1200mA and 24V 100-600mA
On-off, voltage (0-10v) and current-controlled (4-20mA) control ends available in the series
max. flow in P port 160l/min, with center feed 250l/min
max. spool-specific flow in A and B ports 130l/min
max. operating pressure 370bar, peak pressure 400bar

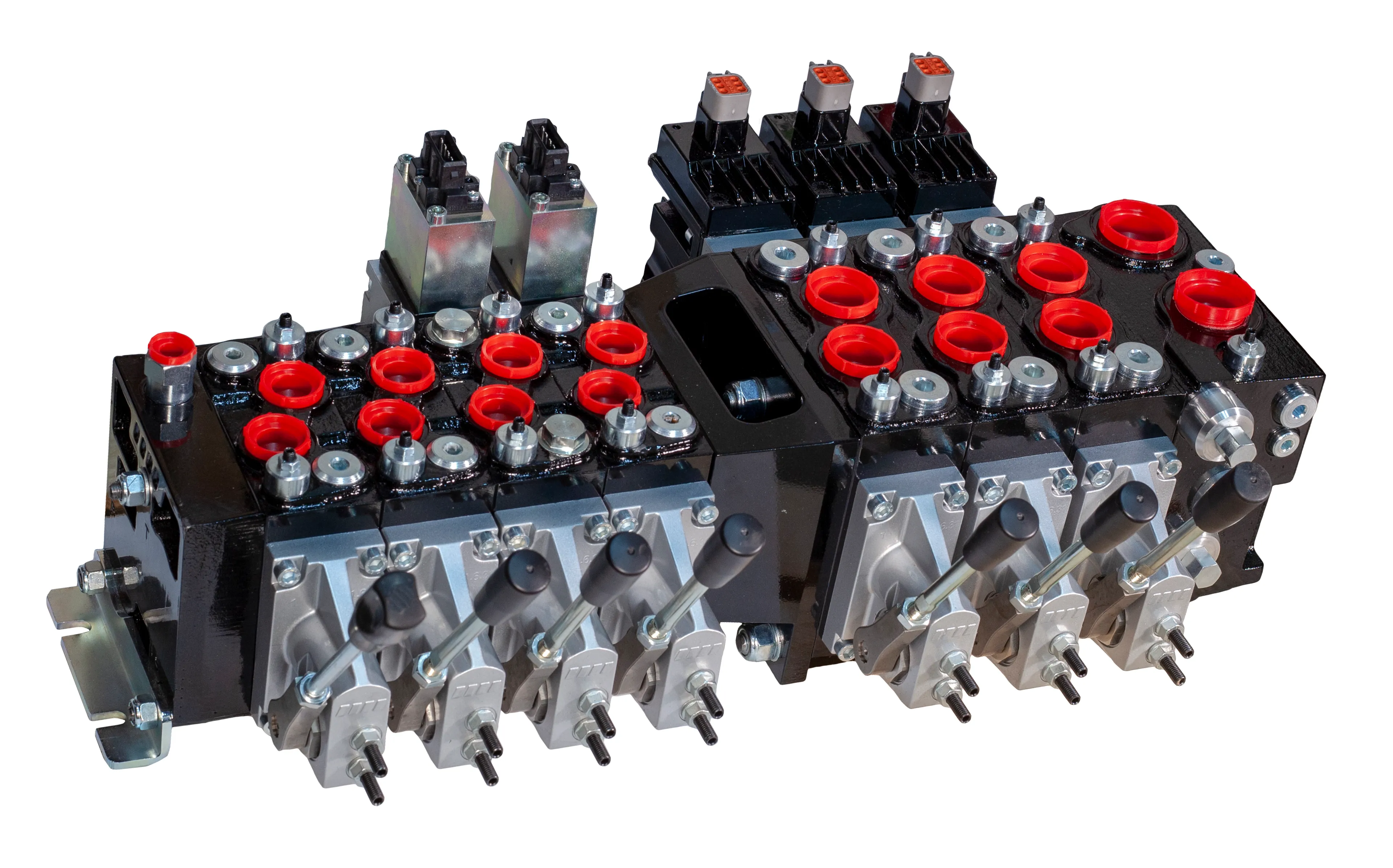

Also available in larger series PDV 114 ( 250 l/min ) and PD V315 ( 600 l/min ). The auxiliary image shows PDV 114 & PDV 74 sections connected with an intermediate section.
