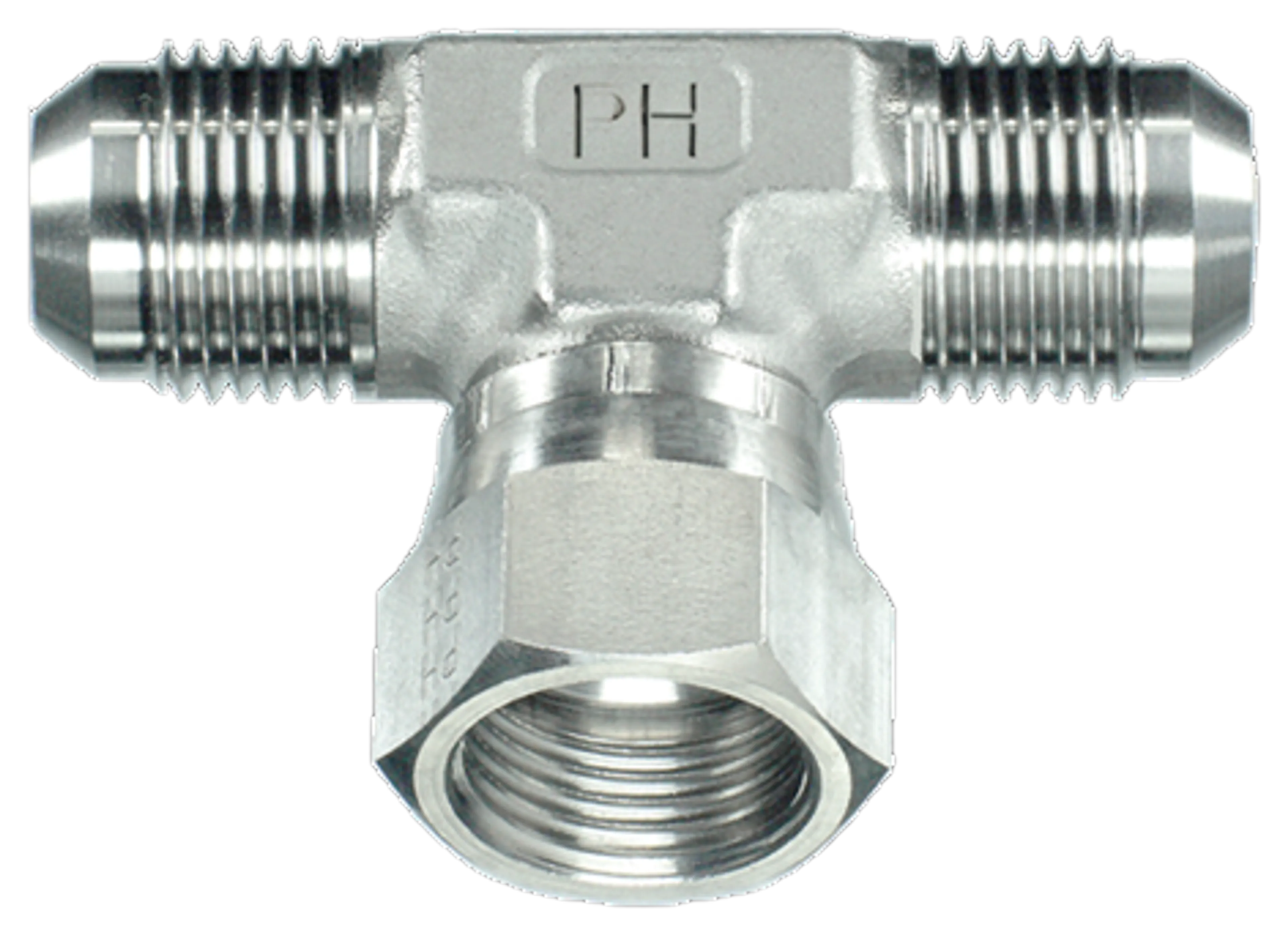

SS1240 - JIC swivel branch tee stainless steel
JIC swivel branch tee: male threads on the run, swivel female nut on the branch. Stainless steel.
| Code | Thread (UNF) | Package size (KPL) |
|---|---|---|
| SS1240-04 | 7/16'' | 1 |
| SS1240-05 | 1/2'' | 1 |
| SS1240-06 | 9/16'' | 1 |
| SS1240-08 | 3/4'' | 1 |
| SS1240-10 | 7/8'' | 1 |
| SS1240-12 | 1 1/16'' | 1 |
| SS1240-16 | 1 5/16'' | 1 |
| SS1240-20 | 1 5/8'' | 1 |
| SS1240-24 | 1 7/8'' | 1 |
| SS1240-32 | 2 1/2'' | 1 |
