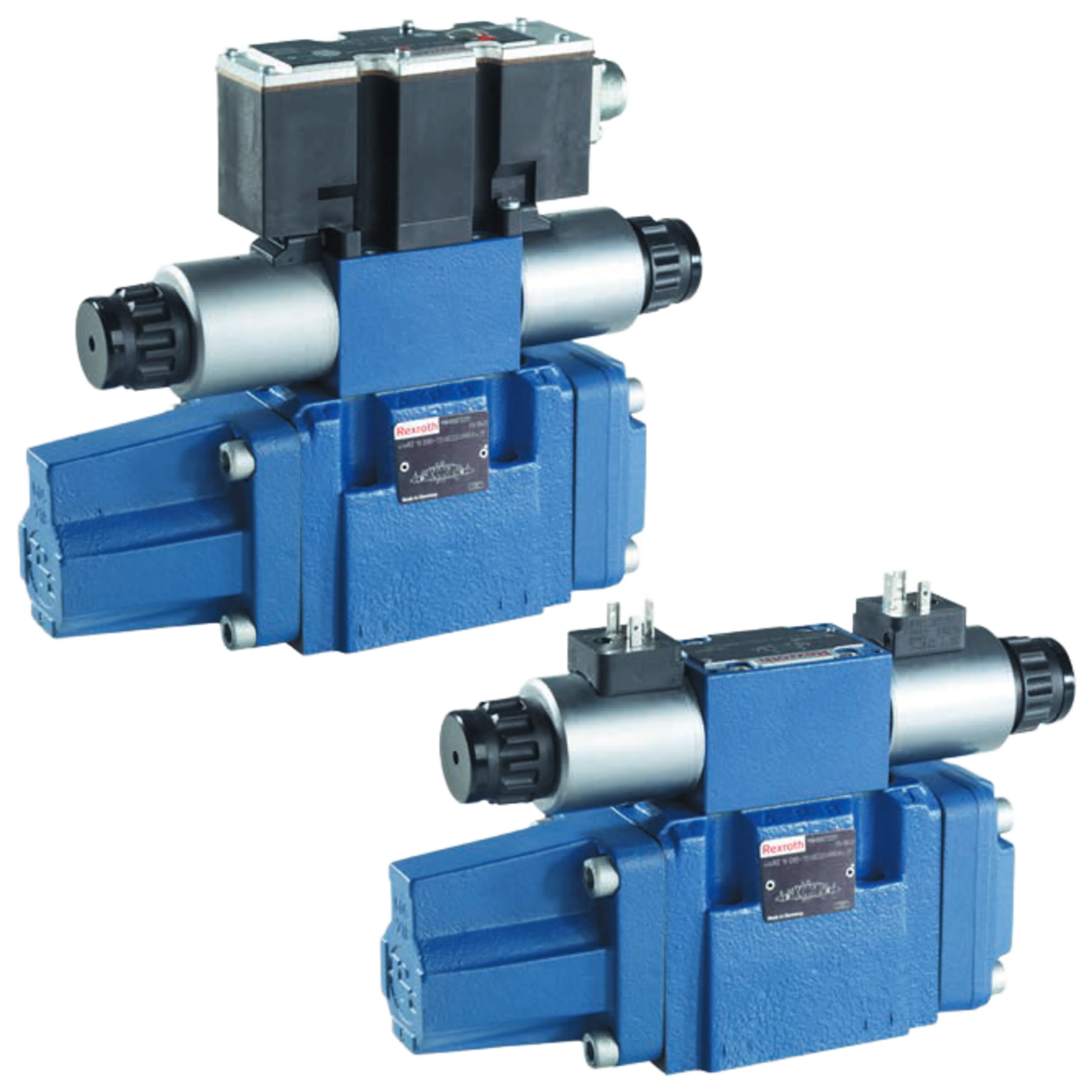

4WRZ16 / 4WRZE16 Cetop 7 / NK16 proportional directional valves Rexroth
Product also in categories: Directional valves
Bosch Rexroth pilot-operated proportional directional valve, subplate mounting ISO 4401-07-07-0-05 (Cetop 7 / size 16). Control of flow direction and size by proportional solenoids.
- Max. operating pressure 350 bar
- Max. flow 460 l/min
- Nominal flow 150 l/min (∆p 5 bar / control edge)
- External control electronics or on-board electronics (OBE)
- Spring-centred main spool, detachable coils
| Code | Spool | Voltage | Factory code | Electronics | Package size (KPL) |
|---|---|---|---|---|---|
| 32-R900966566 | E | 24V | 4WRZ16E150-7X/6EG24N9ETK4/D3M | Ulkoinen elektroniikka | 1 |
