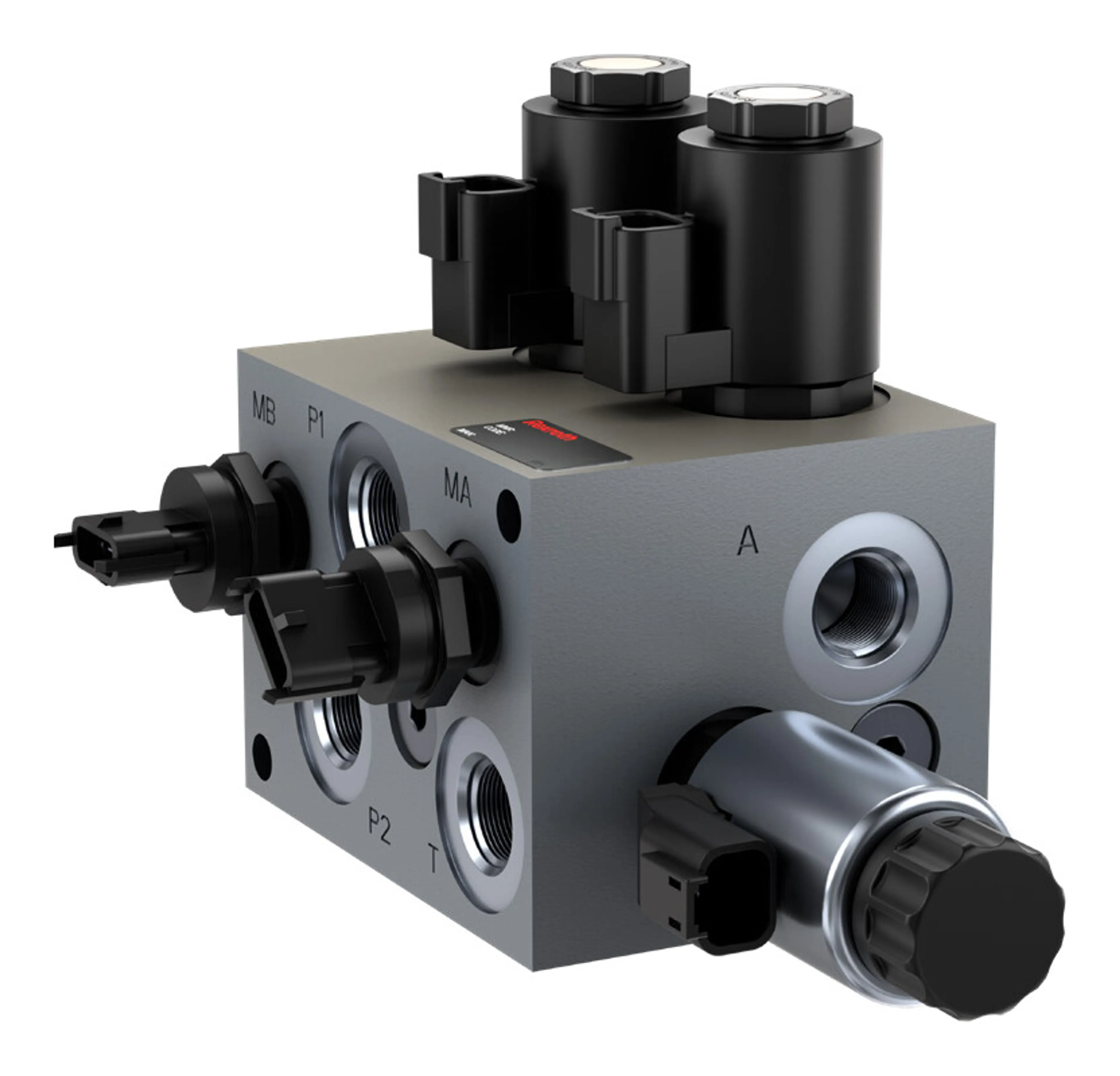

HICBBW-2 - Electro-hydraulic brake-by-wire valve 24 V Bosch Rexroth
Bosch Rexroth HICBBW is an electro-hydraulic control block for brake-by-wire systems. Proportional pressure reducing valves DRET5 regulate the brake pressure infinitely in proportion to the solenoid current. The double block has two separate brake circuits.
- Double block, two brake circuits (A and B)
- Maximum control pressure 100 bar
- Maximum inlet pressure 210 bar (250 bar including pressure peaks)
- Flow P→A 15 l/min (Δp ≤ 7 bar)
- Coil 24 V DC, Deutsch DT04-2P connector
- Filter in port P
- Ports G1/2 (T, P1, P2, A, B), measurement ports G1/4
- Steel block, FKM seals, weight approx. 6.5 kg
- Minimum pressure at zero setpoint or power failure
| Code | Factory code | Package size (KPL) |
|---|---|---|
| 32-R901502540 | HICBBW-2A-ST-1X/100PG24N0K40XXXV | 1 |
