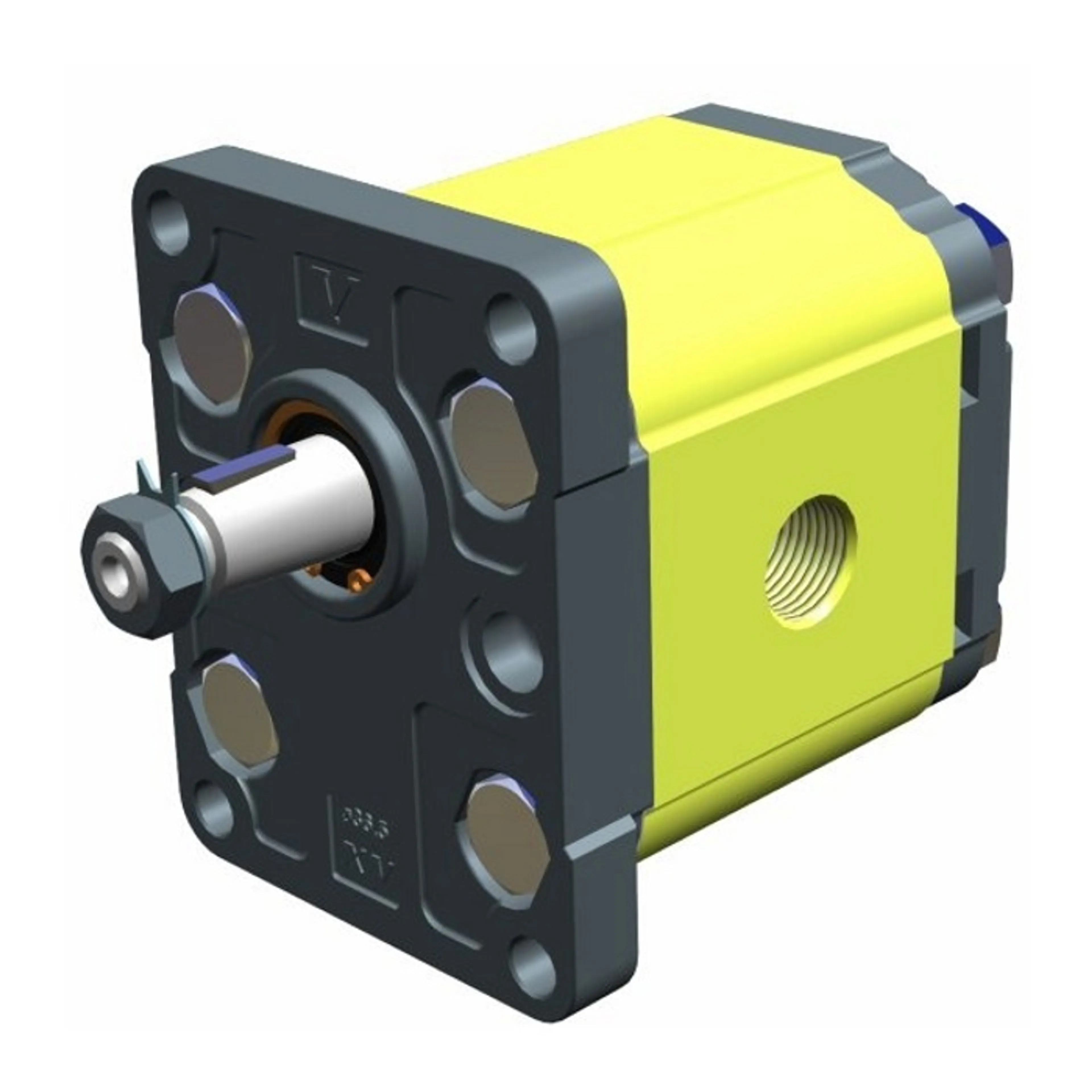

XV-2M - gear motors, 2-series with BSP ports
- with threaded ports
- leak line G1/4", to be connected directly to tank (pmax 0.5bar)
- tapered shaft 1:8
| Code | Displacement (cm3/r) | Max. oper. press. (bar) | Speed (rpm) | Female thread return (BSP) | Internal thrd. press. (BSP) | Leak line | Package size (KPL) |
|---|---|---|---|---|---|---|---|
| HMT-X2M4101EBBE | 4,20 | 260 | 700-3500 | 1/2" | 1/2" | 1/4" | 1 |
| HMT-X2M4301EBBE | 6,00 | 260 | 700-3500 | 1/2" | 1/2" | 1/4" | 1 |
| HMT-X2M4301EBBF | 6,00 | 260 | 700-3500 | 1/2" | 1/2" | Ei | 1 |
| HMT-X2M4501EBBE | 8,40 | 260 | 700-3500 | 1/2" | 1/2" | 1/4" | 1 |
| HMT-X2M4501EBBF | 8,40 | 260 | 700-3500 | 1/2" | 1/2" | Ei | 1 |
| HMT-X2M4701EBBF | 10,80 | 260 | 700-3500 | 1/2" | 1/2" | Ei | 1 |
| HMT-X2M5501ECCE | 22,8 | 200 | 700-3000 | 3/4" | 3/4" | 1/4" | 1 |
| HMT-X2M5901EDDE | 30,0 | 160 | 700-2500 | 1" | 1" | 1/4" | 1 |
| HMT-X2M6101EDDE | 34,20 | 150 | 700-2000 | 1" | 1" | 1/4" | 1 |
