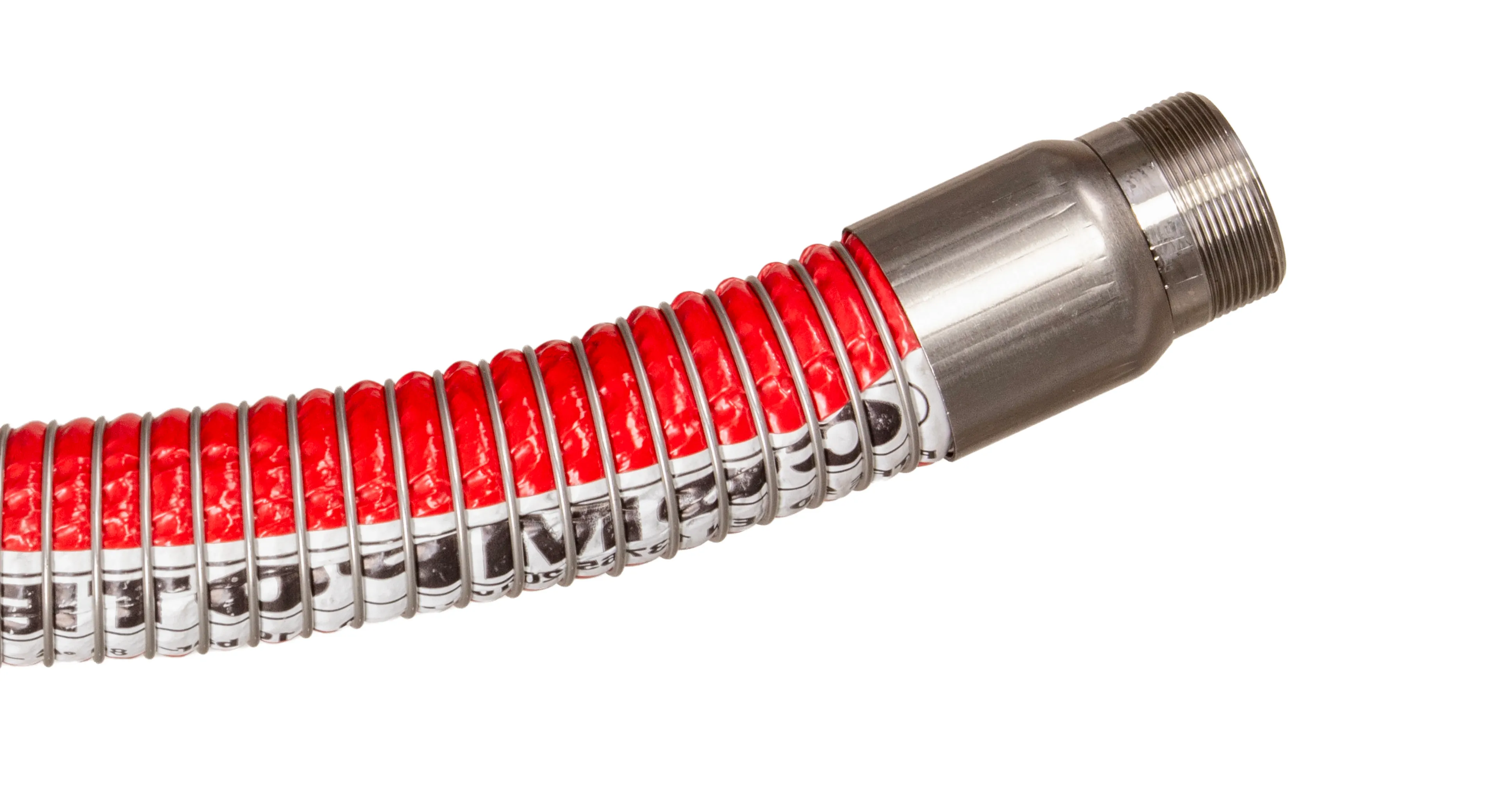

PTFE SD - Standard duty PTFE-hose
EN 13765:2015 TYPE 2 compliant medium-duty PTFE hose for safe transfer of chemicals under suction and pressure.
Composite hose assemblies are manufactured in Nurmijärvi up to 4'', where they are pressure tested and marked. As a factory order, we can supply assemblies up to 12''. .
- Pressure testing and marking according to customer requirements.
- Hose assemblies available with several different fitting and material types
- Hose construction
- Liquid-contact layer: tight ECTFE film
- Lining: strong polypropylene and polyester films
- Inner spiral: AISI316
- Outer spiral: AISI316
| Code | koko (") | väri | lämpötila-alue | työpaine (varmuuskerroin 4:1)) | työpaine (varmuuskerroin 5:1) | taivutussäde (mm) | Package size (M) |
|---|---|---|---|---|---|---|---|
| LDPTSDXX-051 | DN50 | Punainen | -30° - +80° | 14bar | 10bar | 150mm | 1 |
| LDPTSDXX-080 | DN80 | Punainen | -30° - +80° | 14bar | 10bar | 250mm | 1 |
| LDPTSDXX-102 | DN100 | Punainen | -30° - +80° | 14bar | 10bar | 300mm | 1 |
