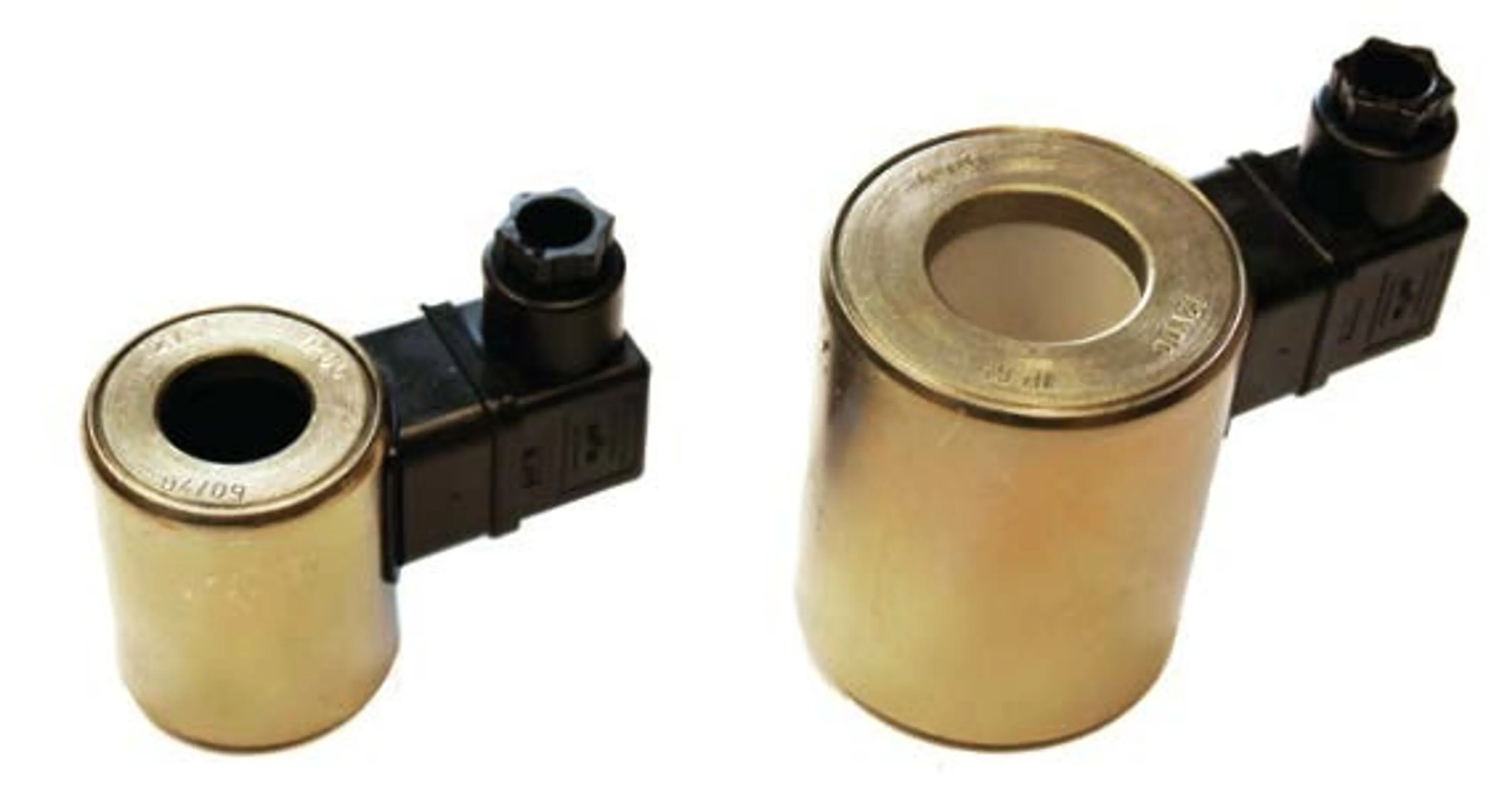

Kladivar coils
Poclain - Kladivar solenoid coils for 3/2, 6/2 and 8/3 valves.
- Protection class IP65
- To use 230RAC coils with 230VAC voltage, the voltage must be rectified, for example with a rectifier plug
- RAC = Rapid Arc Control arc technology that limits mains follow current and is gentle on terminal devices.
- In the 22,5mm coil, the hole at one end is 22mm
| Code | Voltage | Item | Hole (mm) | Length (mm) | For valve (NK) | For valve (model) | Package size (KPL) |
|---|---|---|---|---|---|---|---|
| KV1438255 | 24 VDC | MR-045-O-OC | 22,5 | 53 | NK6 | KV624/KV626/KV628 | 1 |
| KV1548417 | 12 VDC | MR-045-O-OB | 22,5 | 53 | NK6 | KV624/KV626/KV628 | 1 |
| KV1548451 | 230 RAC | MR-045-O-OZ | 22,5 | 53 | NK6 | KV624/KV626/KV628 | 1 |
| KV4000168 | 48 VDC | MR-045-O-OD | 22,5 | 53 | NK6 | KV624/KV626/KV628 | 1 |
| KV4000191 | 12 VDC | MR-060-0-OB | 31 | 72 | NK10 | kV628/KV621/KVC3 | 1 |
| KV4000197 | 24 VDC | MR-060-0-OC | 31 | 72 | NK10 | KV628/KV621/KVC3 | 1 |
| KV4000192 | 230 RAC | MR-060-0-OZ | 31 | 72 | NK10 | KV628/KV621/KVC3 | 1 |
