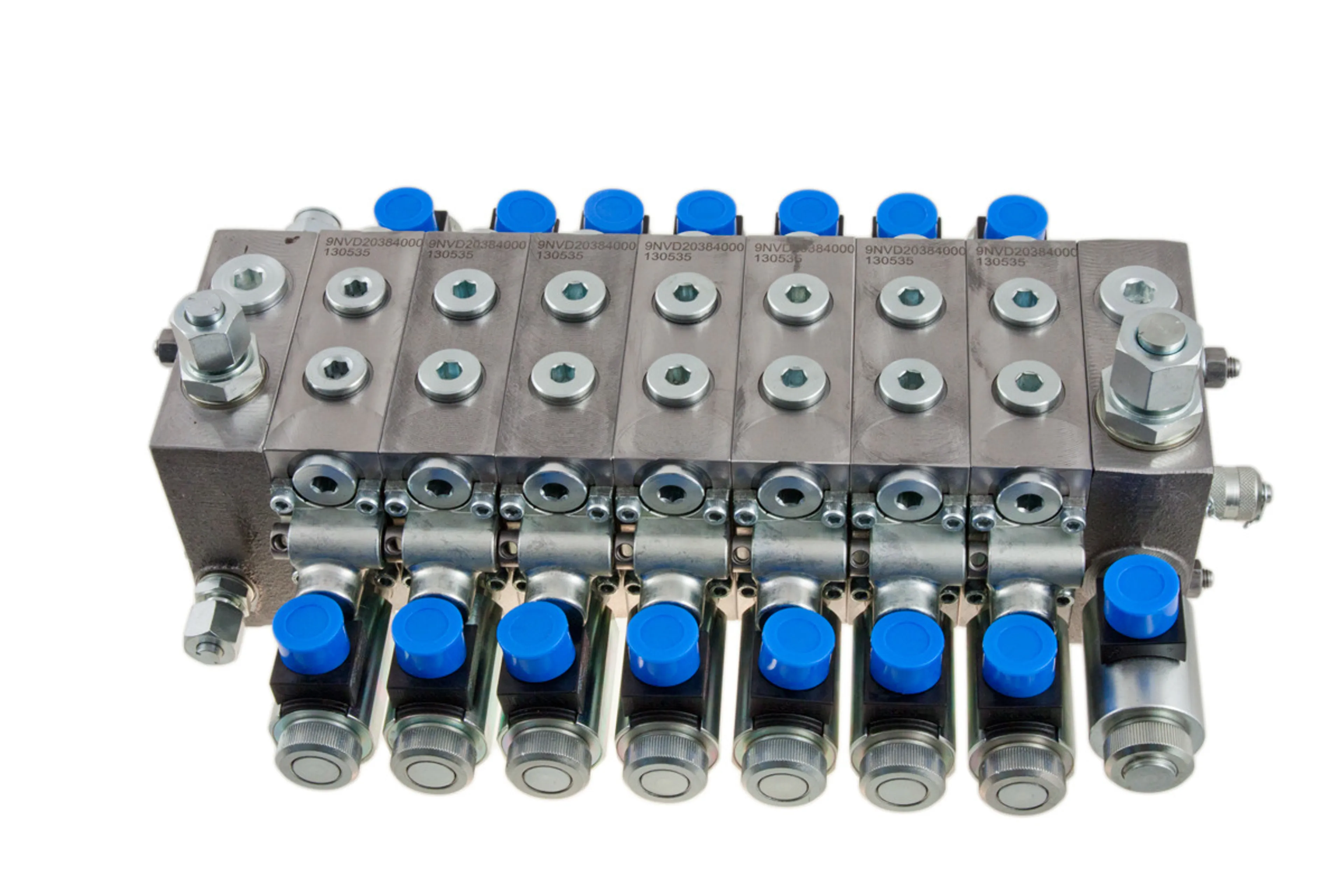

NVD2 proportional sectional valve 50l/min
Nem Hydraulics NVD2 proportional sectional valve with 1-8 sections. NVD2 is designed for fixed-displacement pumps without an LS line. The valve is always pressure compensated, meaning operation is load-independent and it enables simultaneous movement of multiple spools without mutual interference. For fault situations, the valve bank also operates manually with lever control.
- max. flow in P and P1 ports 50l/min
- max. section flow in A and B ports 40l/min
- max. operating pressure 350bar
- operating voltage 12VDC or 24VDC
- recommended PWM frequency 60-90Hz
- available with free circulation cartridge (dump valve)
- available with section-specific shock valves
- available with main pressure relief valve
- section-specific flow adjustable with orifices
| Code | selite | Package size () |
|---|
