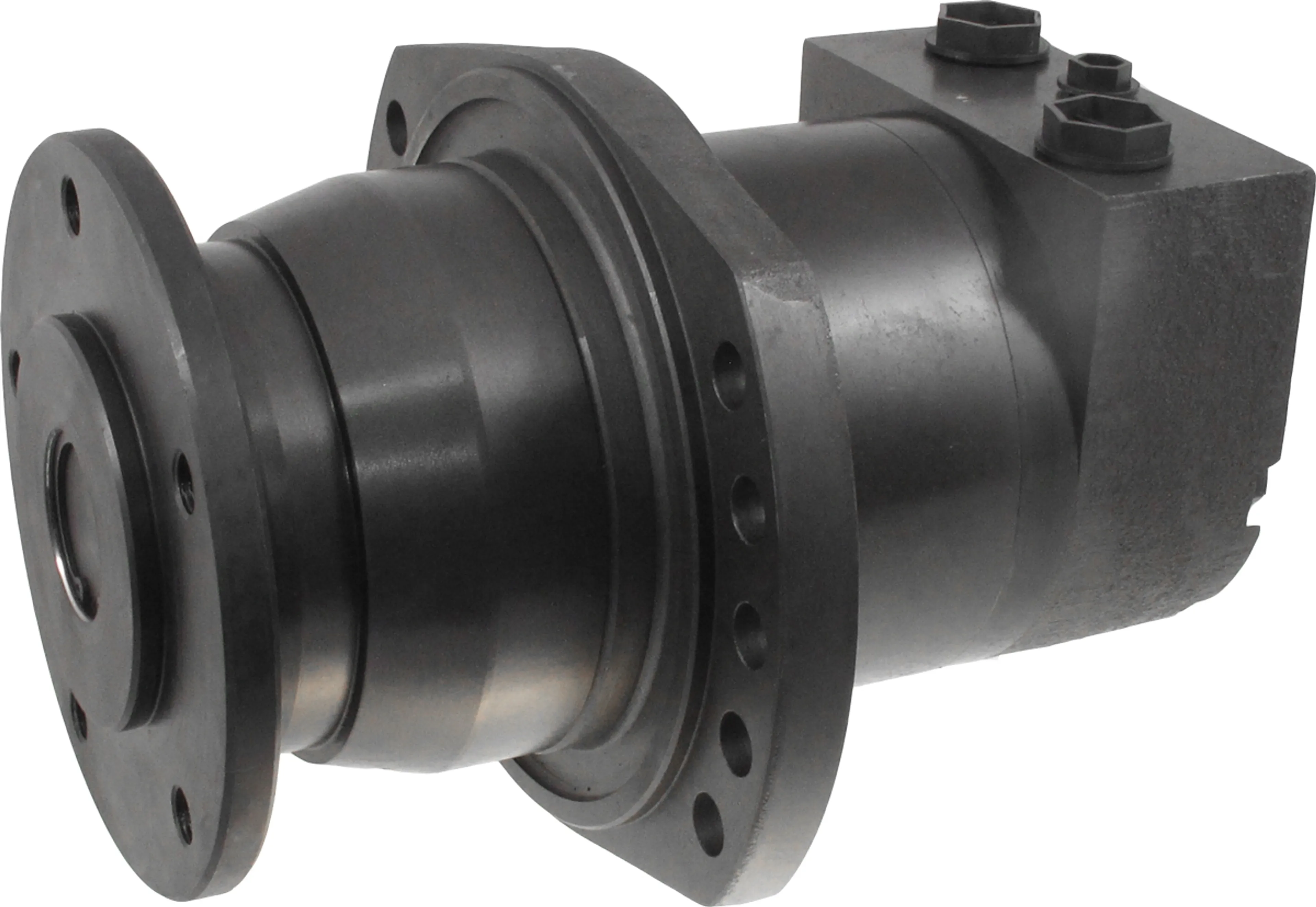

TMF - Hydraulic motor (TMTW) with flange shaft, hub-mounted

TMF - Hydraulic motor (TMTW) with flange shaft, hub-mounted
Details summary

M+S Hydraulics hydraulic motor with flange shaft and hub mounting. A Danfoss TMTW-compatible hydraulic motor widely used especially in forestry machines.

  • flange shaft with M14 threads
  • hub-mounted
  • side ports G3/4"
  • case drain G1/4"
  • disc valve motor
  • used e.g. in John Deere and Valmet harvester heads
  • the case drain must always be connected
  • M+S TMF series
CodeDisplacement (cm3/r)Maximum speed (r/min) continuous/instantaneousMaximum continuous torque (daNm) cont./momentary/shockMax. cont. power (kW) cont./inst.Max. cont. op. press. = dP (bar) cont./inst./strokePackage size (KPL)3D
TMF-250HD251,7500/60090/128/14441/70250/350/4001
TMF-315HD326,3380/460116/163/18641/70250/350/4001
TMF-400HD410,9305/365147/206/23541/70250/350/4001
TMF-470HD475,0260/315171/21524041/55250/315/3501
TMF-500HD523,6240/285172/215/24037,5/51230/280/3201
TMF-630HD631,2190/230183/229/27428/42200/250/3001
