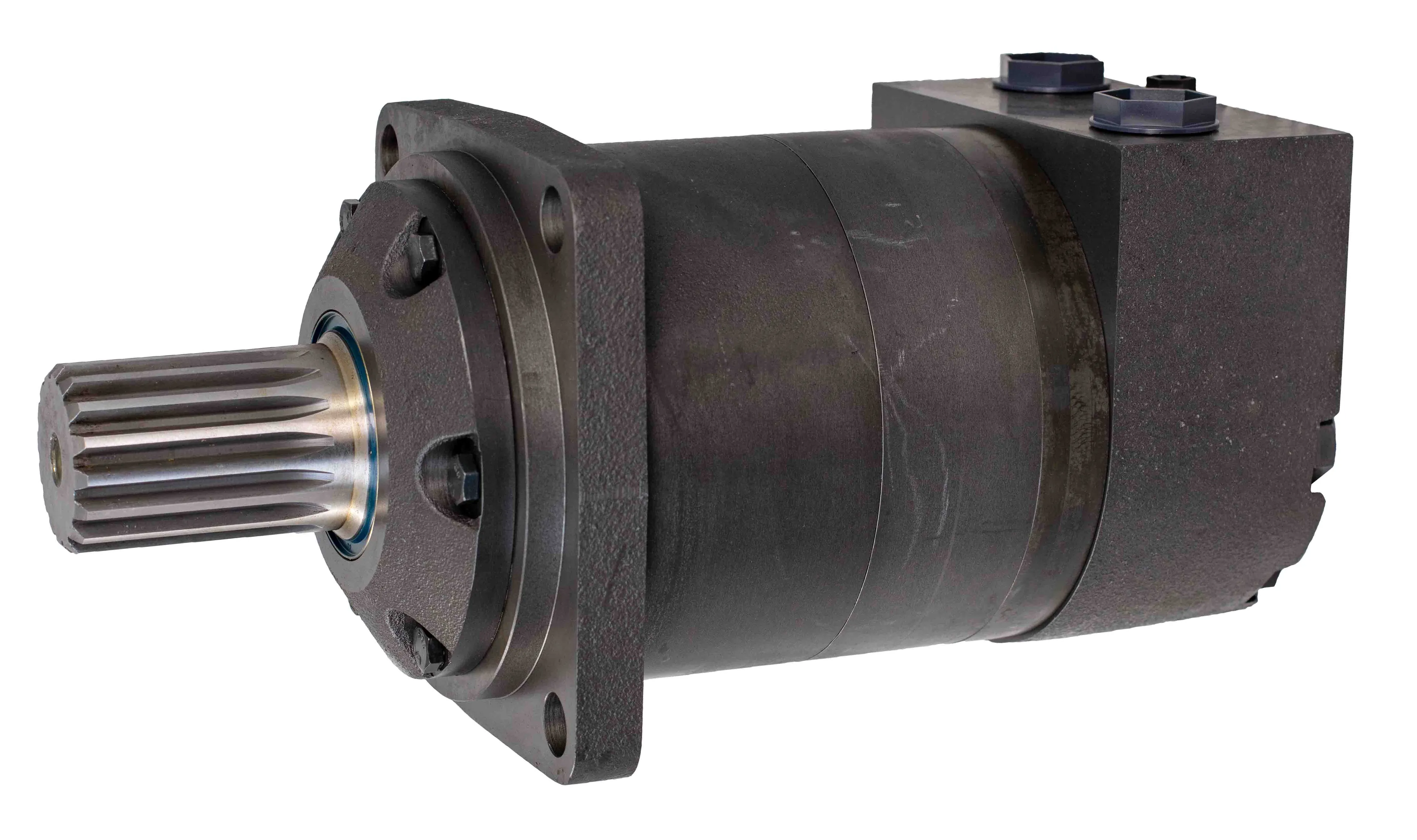

EPMVM - Hydraulic motor with splined shaft
M+S Hydraulics gerotor motor MMV with large displacement for applications requiring high torque.
- 16-spline shaft 2 1/8" (53,975mm)
- 4-bolt mounting
- pilot flange diameter 160mm
- side ports G1"
- case drain G1/4"
- disc valve motor (disc valve)
- M+S MVM series - MVM 630 SH 2 HD
| Code | Displacement (cm3/r) | Maximum speed (r/min) continuous/instantaneous | Maximum continuous torque (daNm) cont./momentary/shock | Max. cont. power (kW) cont./inst. | Max. cont. op. press. = dP (bar) cont./inst./stroke | Package size (KPL) |
|---|---|---|---|---|---|---|
| EPMVM-630SH2-HD | 629,1 | 315/380 | 227/310/360 | 67/112 | 250/350/400 | 1 |
