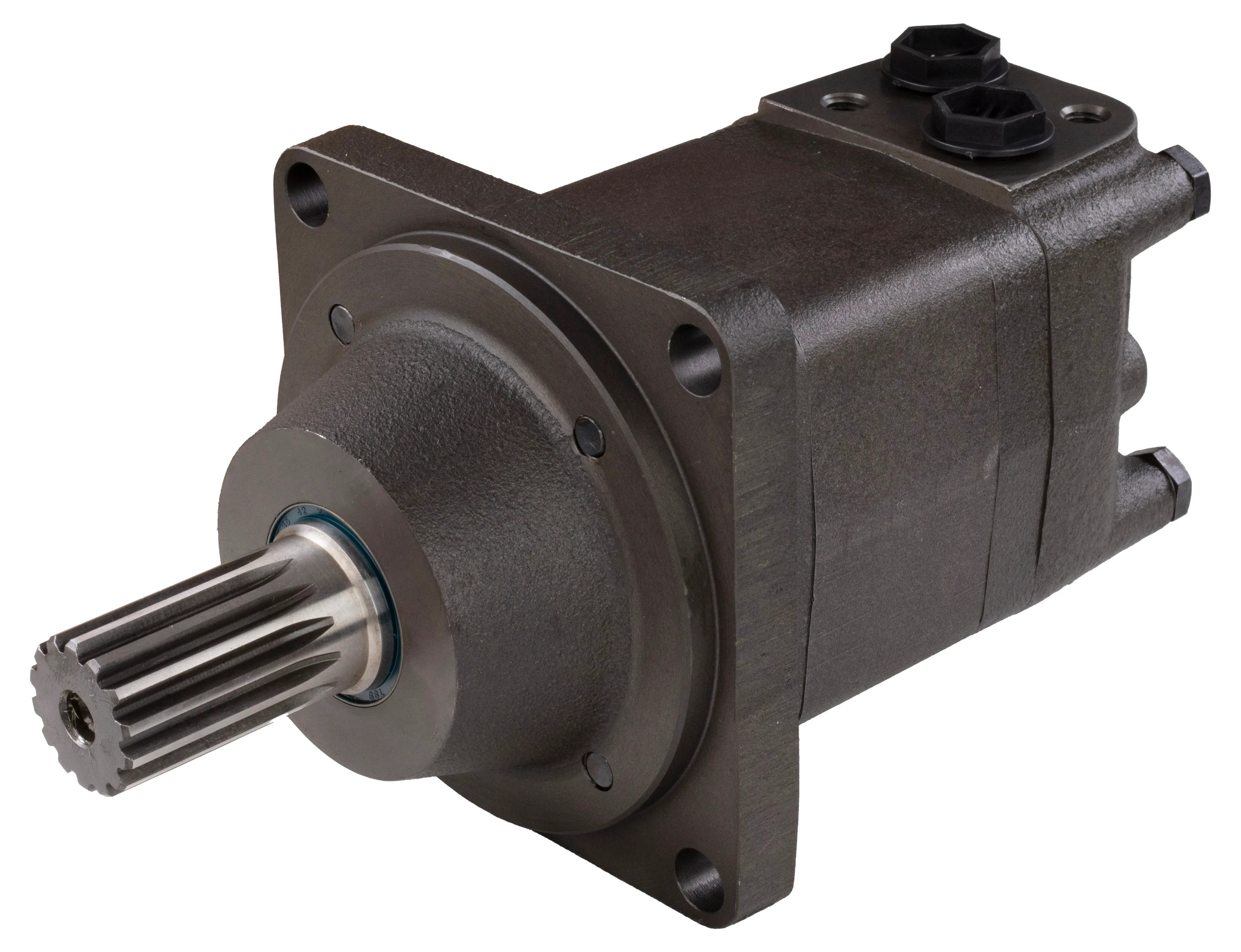

EPMSW - Hydraulic motor (OMSW) with 14-spline shaft and wheel mount
EPMSW motor model with a 14-spline shaft. M+S Hydraulics gerotor motor can be used in applications requiring high durability, such as forestry machines. The hydraulic motor is interchangeable with Danfoss OMS.
- SH shaft with 14-spline shaft ø1¼" splined 14T ANS B92.1-1970
- hub mounting
- 4-bolt SAE A-4 mounting
- side ports G1/2"
- case drain G1/4"
- disc valve motor
- M+S MS series
Code table and cross-references
| Code | M+S code |
|---|---|
| EPMSW-080SH | MSW080SH |
| EPMSW-100SH | MSW100SH |
| EPMSW-125SH | MSW125SH |
| EPMSW-160SH | MSW160SH |
| EPMSW-200SH | MSW200SH |
| EPMSW-250SH | MSW250SH |
| EPMSW-315SH | MSW315SH |
| EPMSW-400SH | MSW400SH |
| EPMSW-475SH | MSW475SH |
| EPMSW-525SH | MSW525SH |
| EPMSW-565SH | MSW565SH |
| Code | Displacement (cm3/r) | Maximum speed (r/min) continuous/instantaneous | Maximum continuous torque (daNm) cont./momentary/shock | Max. cont. power (kW) cont./inst. | Max. cont. op. press. = dP (bar) cont./inst./stroke | Package size (KPL) |
|---|---|---|---|---|---|---|
| EPMSW-315SH | 314,9 | 240/290 | 82,5/100 | 15/17 | 200/240/260 | 1 |
