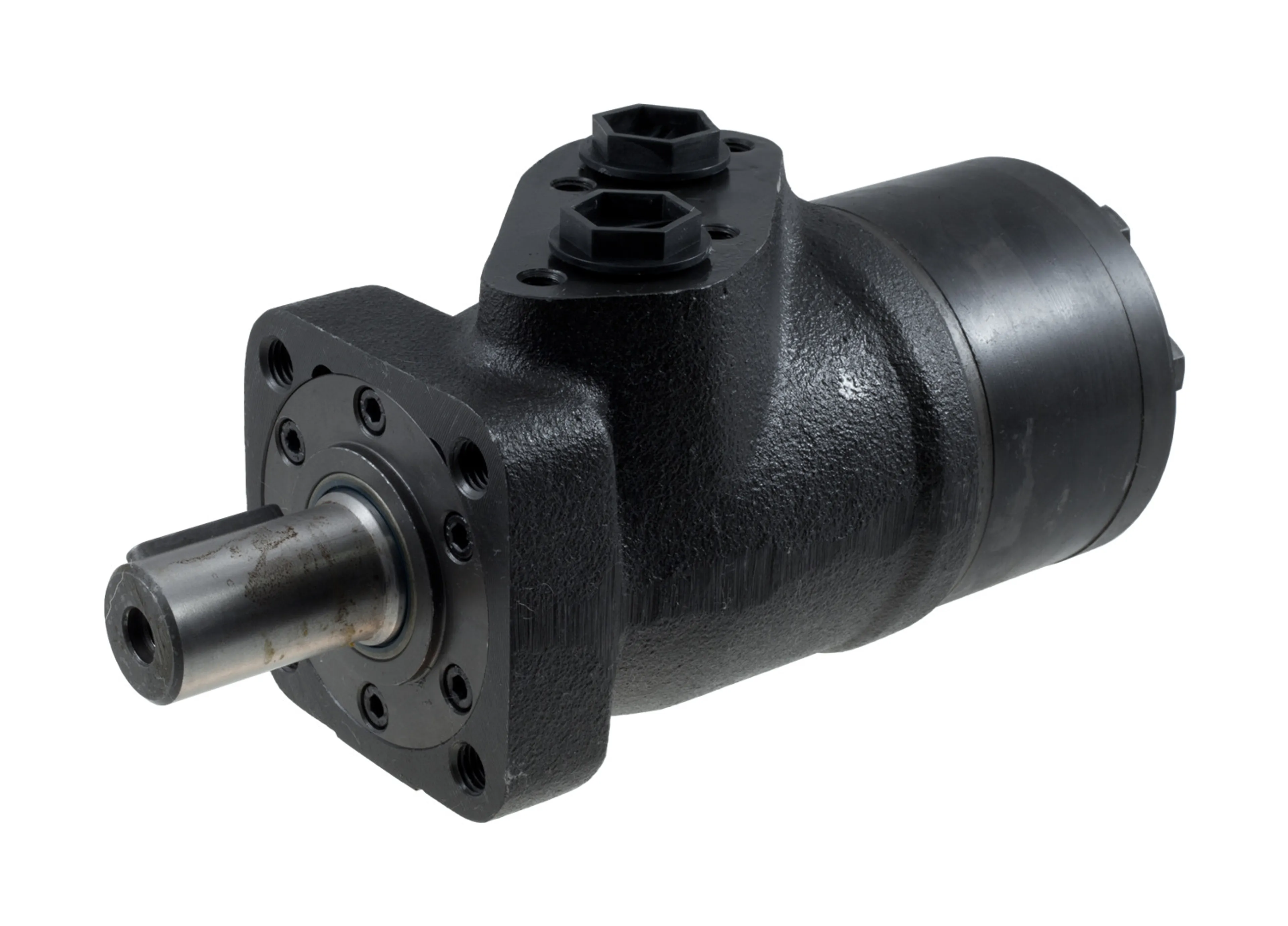

EPMQ - Hydraulic motor (OMP) 25mm cylindrical shaft, 4-bolt mounting
The M+S Hydraulic MP series gerotor motor can be used, for example, in sweepers, field saws, slurry pumps or winches. The hydraulic motor is interchangeable with Sauer Danfoss OMP.
- CD shaft with 25mm cylindrical shaft and keyway
- 4-bolt square mounting
- side ports G1/2"
- case drain G1/4"
- spool valve motor (spool valve)
- M+S MP series
| Code | Displacement (cm3/r) | Maximum speed (r/min) continuous/instantaneous | Maximum continuous torque (daNm) cont./momentary/shock | Max. cont. power (kW) cont./inst. | Max. cont. op. press. = dP (bar) cont./inst./stroke | Package size (KPL) | 3D |
|---|---|---|---|---|---|---|---|
| EPMQ-080CD | 79,2 | 755/945 | 15,1/19,5/22,4 | 10,2/12,5 | 140/175/225 | 1 | |
| EPMQ-100CD | 99 | 605/755 | 19,3/23,7/27,5 | 10,5/12,8 | 140/175/225 | 1 | |
| EPMQ-125CD | 123,8 | 486/605 | 23,7/29,8/36,5 | 10,2/12 | 175/200/225 | 1 |
