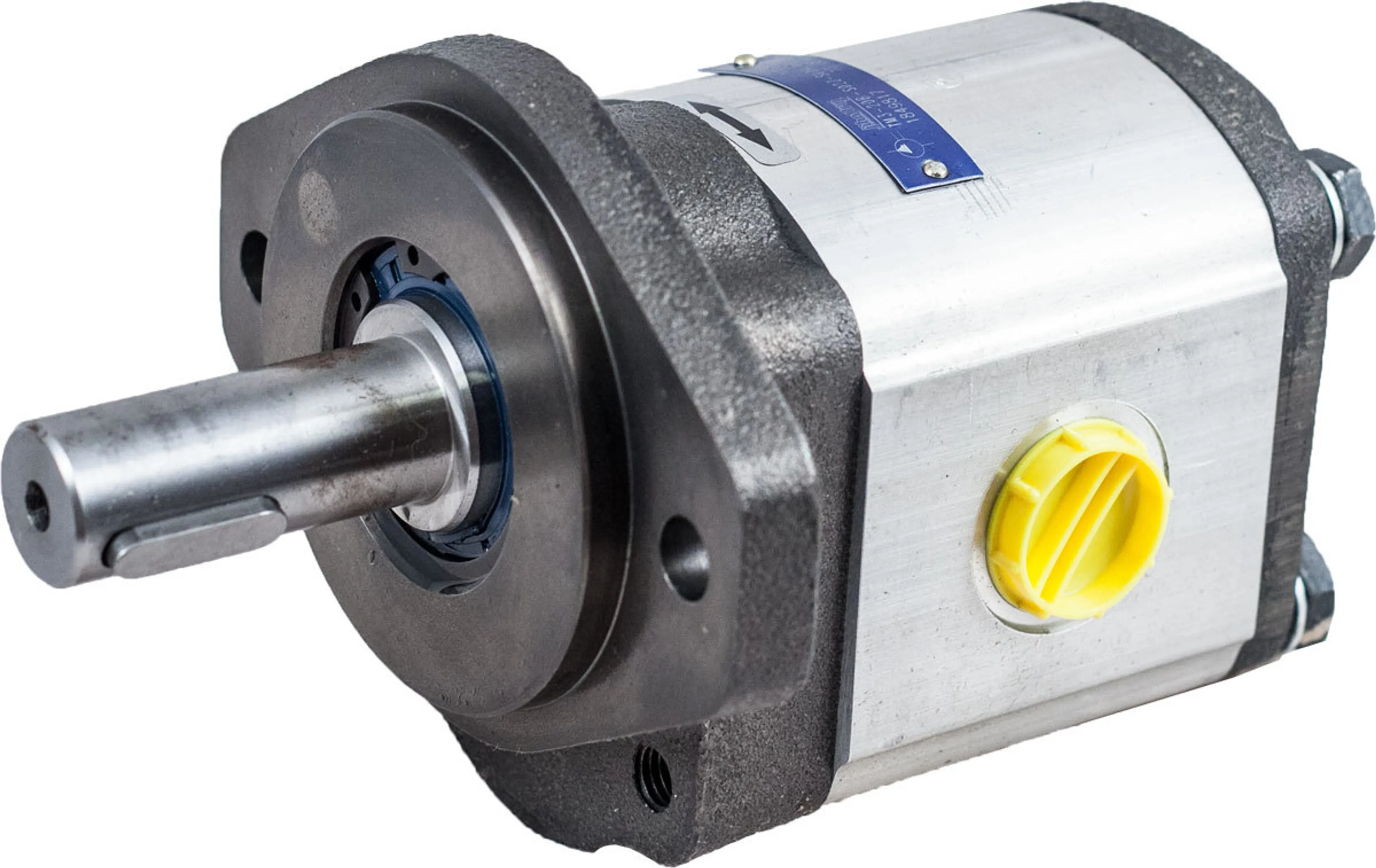

HMT-JA gear motor, 2-series
Gear motor with integrated support bearing. The motor can be used, for example, in Jacobsen lawn mowers.
- Integrated support bearing on the shaft
- Leak port, can be driven in both directions
- Working ports UNF connections 7/8"-14 (-10)
- Leak port 1/4" bsp
- Maximum working pressure 200bar, maximum return pressure 160bar
- Shaft with key 7/8" - 22,23mm, SAE flange, pilot 82,55mm
| Code | Speed (rpm) | Package size (KPL) |
|---|---|---|
| HMT-JA220R | 500-3200 | 1 |
