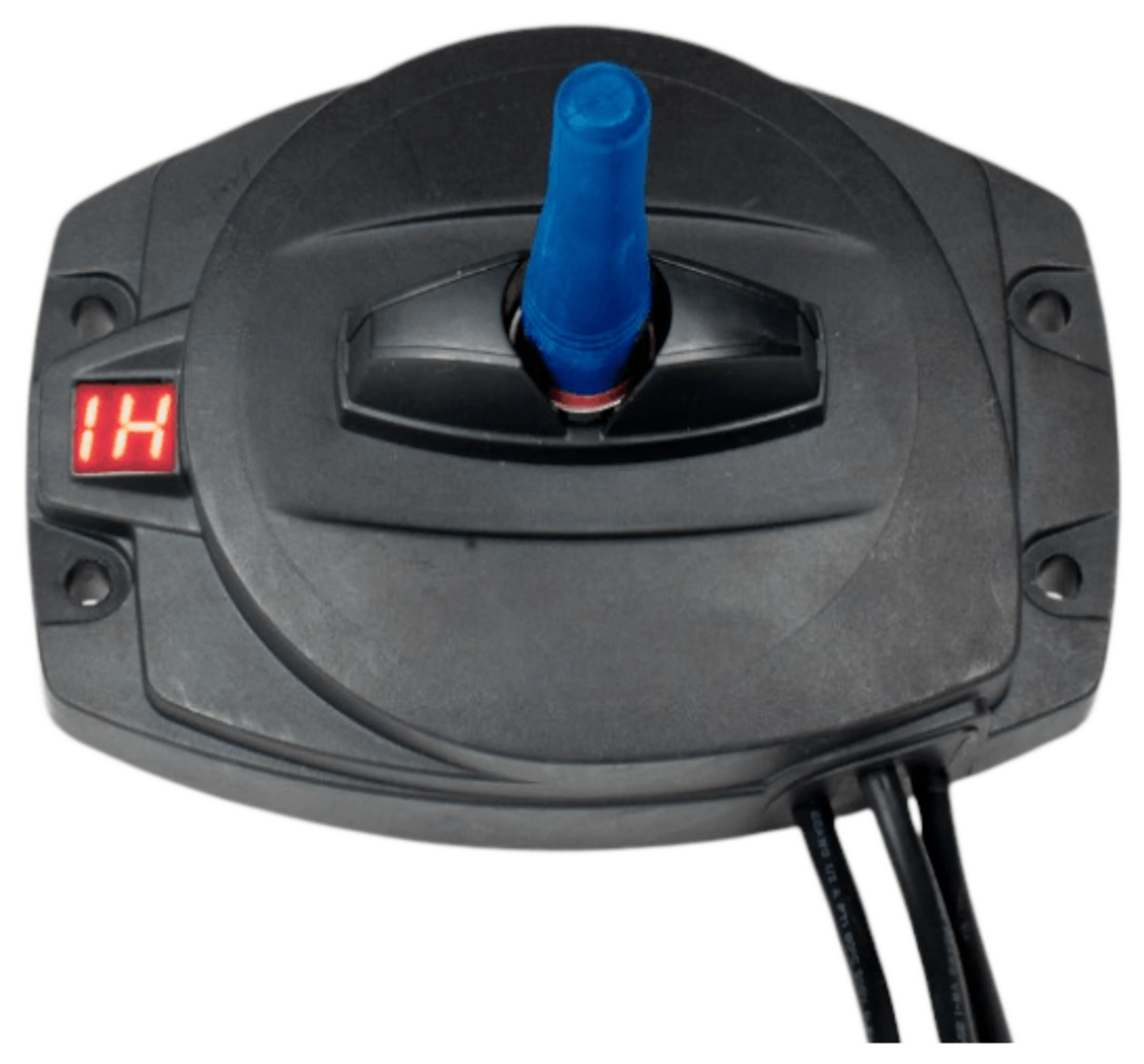

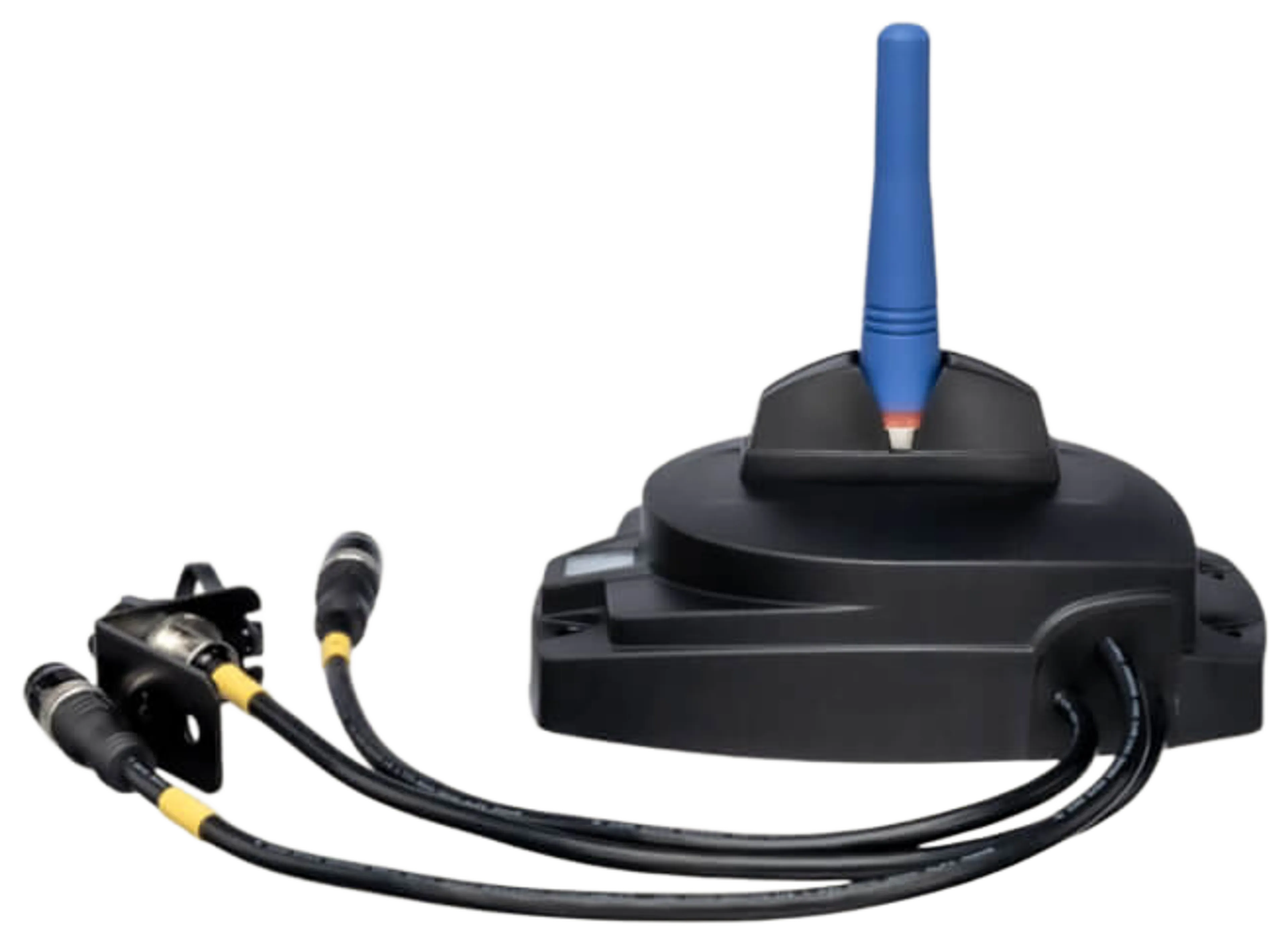

Scanreco G5 CAN receiver
The Scanreco G5 CAN receiver is purpose-built for Pocket and Rocket transmitters and for equipment that already features a master controller (PLC). A single dependable CAN interface (CANopen), supports Rocket stop functions and safety loops. Uses a robust 2.4 GHz frequency-hopping radio for reliable connectivity across markets.
- Platform: G5
- Compatible transmitters: Pocket and Rocket
- CAN bus: CANopen
- Safety level: PL d
- Radio frequency: 2.4 GHz (frequency-hopping)
- Power supply: 12 or 24 VDC (abs. max 9–36 VDC)
- Dimensions (W×H×D): 110 × 140 × 157 mm (incl. antenna)
- Weight: 1.2 kg
- IP class: IP67
- Interface: M12 connectors, cable length 0.3 m or 3 m
- Current consumption: idle 65 mA, operational 100 mA + external loads (24 V)
- Dump valve output: short circuit / overload protected, max 2.7 A (DV2 active when radio/cable link is active)
- Safety loops: dual loops, short circuit proof, max 2.7 A
- Ambient temperature: -25…+70 °C
| Code | Package size (KPL) |
|---|---|
| SR-G5-REC-CAN | 1 |
