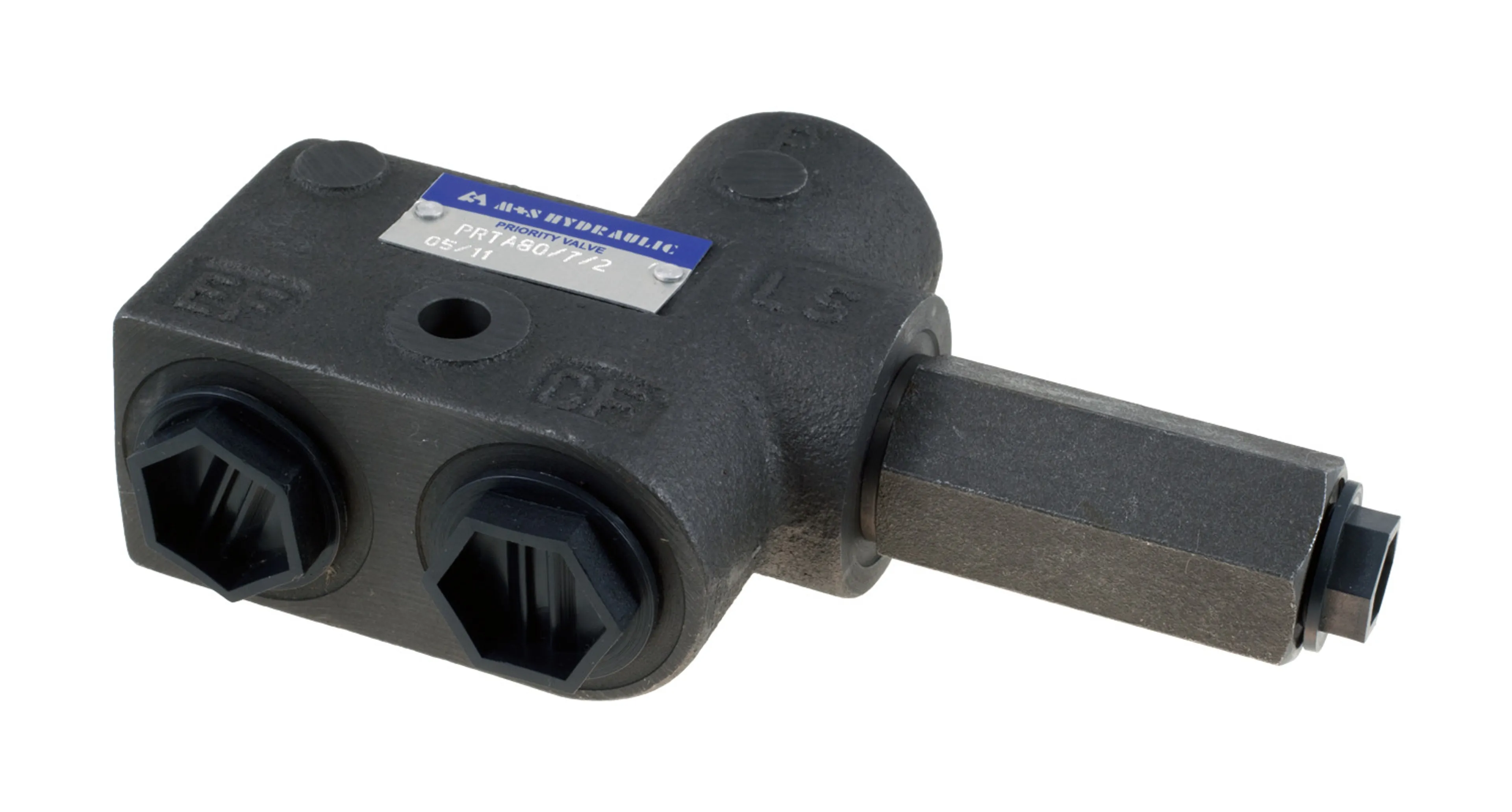

HKUPRTA - Priority valve
Product also in categories: Orbitrol steering units
Priority valve for M+S steering unit. The priority valve is used together with the steering unit when the required oil flow to steering must be ensured. When steering is not used, the pump flow is directed past the steering unit to other functions.
- ports P, EF and CF G1/2"
- LS port G1/4"
- used together with steering units that do not allow modular installation
- distance between the priority valve and the steering unit max 1.5m when using pipe with min. 4mm inner diameter. When using hose, the distance must be shorter
- recommended to be installed as close to the orbitrol as possible

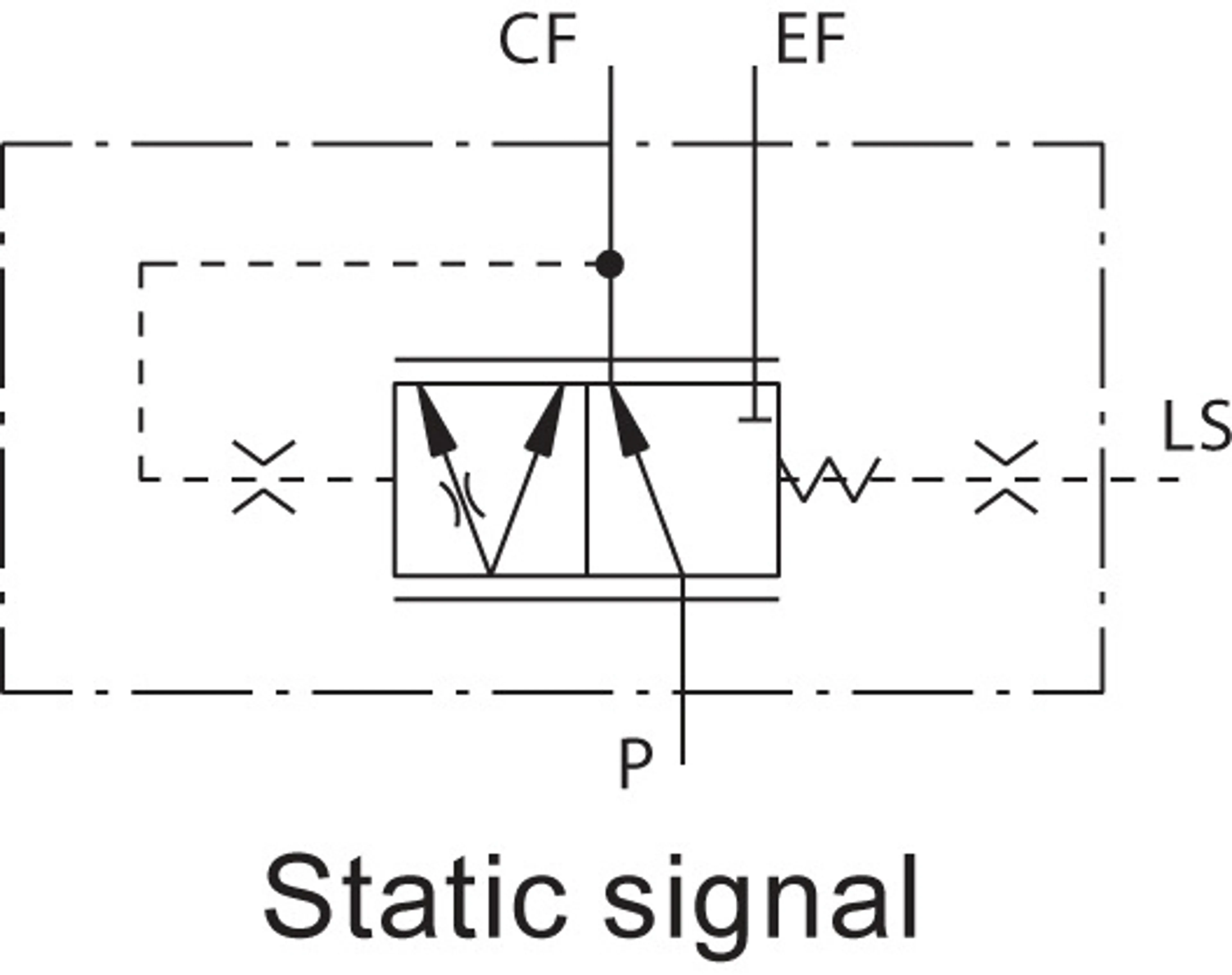

- static LS signal to be connected to the orbitrol LS port

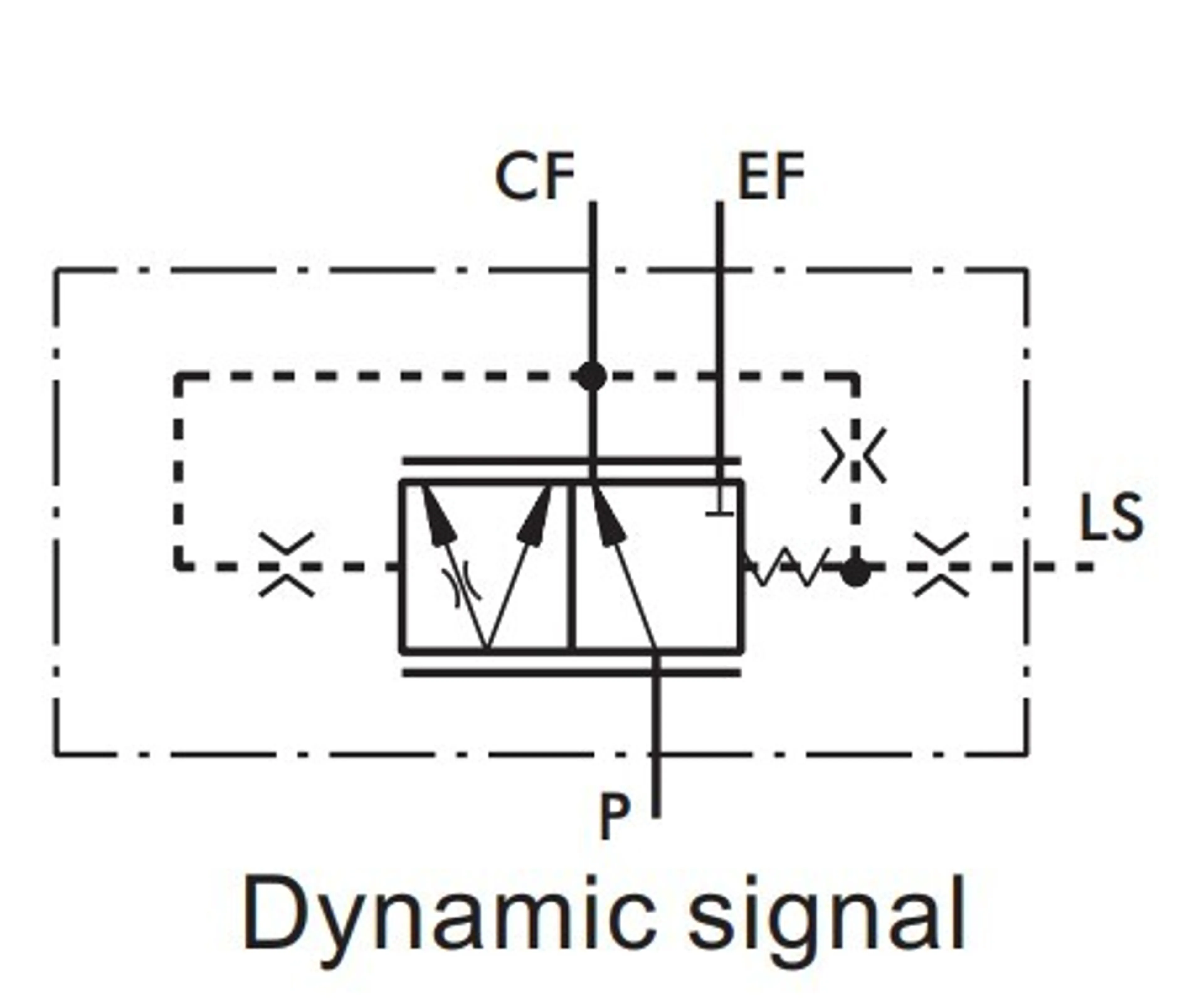

- also available with dynamic LS signal
- recommended flow 80l/min
- maximum pressure in P line 250bar
- maximum pressure in LS line 210bar
- maximum pressure in T line 20bar
| Code | Recommended flow (l/min) | Signal | Adjusting spring (bar) | Package size (KPL) |
|---|---|---|---|---|
| HKUPRTA-80/7 | 80 | Staattinen | 7 | 1 |
| HKUPRTA-80/10 | 80 | Staattinen | 10 | 1 |
| HKUPRTAD-80/7 | 80 | Dynaaminen | 7 | 1 |
