RLH-RV - Mellanfläns
| Kod | För pump | Fläns ytter-Ø (mm) | Bulthålscirkel Ø (mm) | För motorfläns | Förpackningsstorlek (KPL) | 3D |
|---|---|---|---|---|---|---|
| RLH-RV250-110-HP1-30 | Group 1 30mm | 250 | 215 | 112M | 1 | |
| RLH-RV250-120-SAEA | SAE A 2-bolt | 250 | 215 | 112M | 1 | |
| RLH-RV350-188-SAEB2 | SAE B 2-bolt | 350 | 300 | 160L/160M | 1 | |

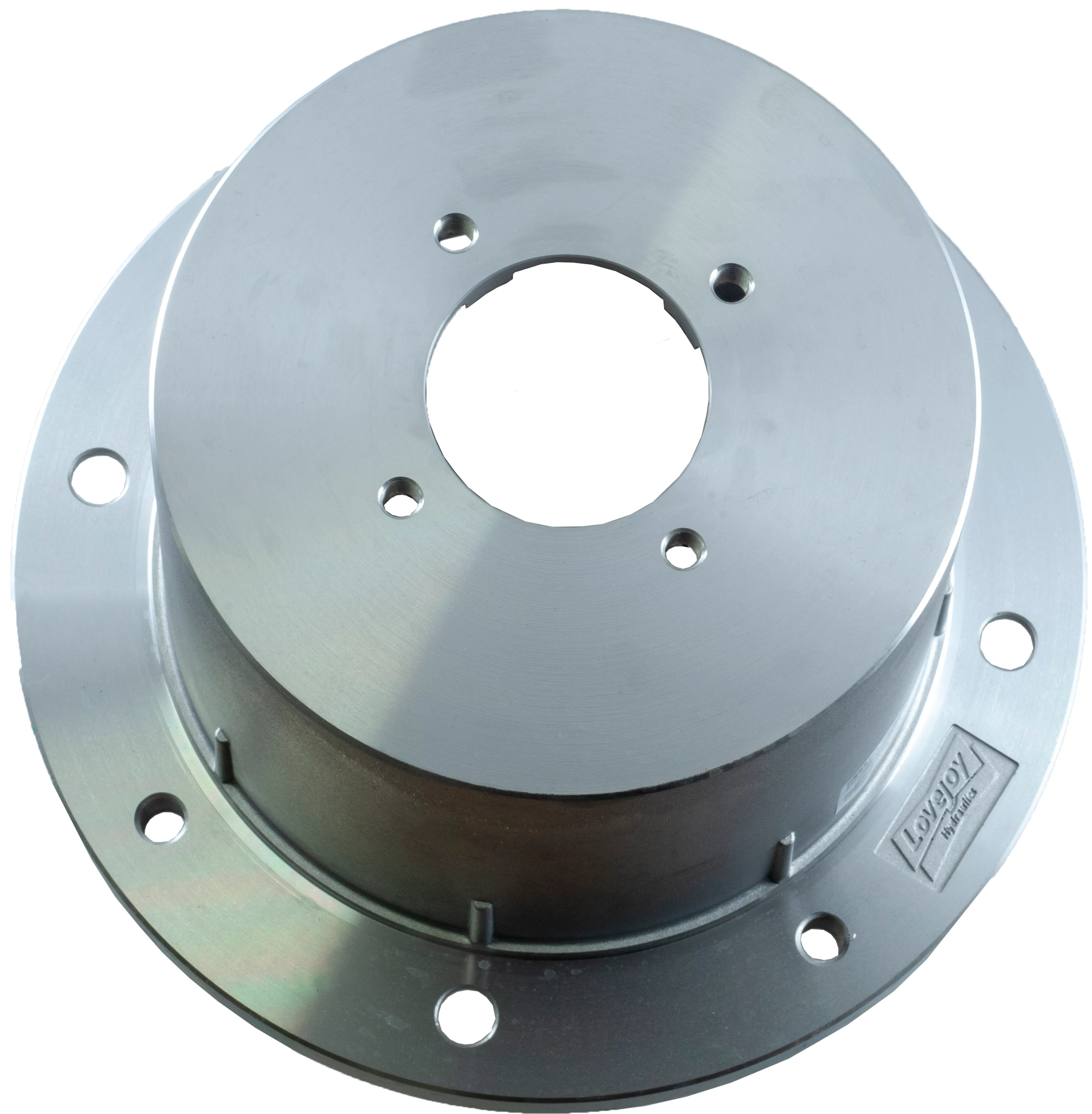

| RLH-RV350-204-118 | ISO 80mm (OMFB HDS/HDT) | 350 | 300 | 160L/160M | 1 | |
| RLH-RV350-204-ISO100 | 100mm ISO 3019-2 | 350 | 300 | 160L/160M | 1 | |
| RLH-RV350-204-193 | SAE B 2-bolt | 350 | 300 | 160L/160M | 1 | |
| RLH-RV350-204-SAEC | SAE C | 350 | 300 | 160L/160M | 1 | |

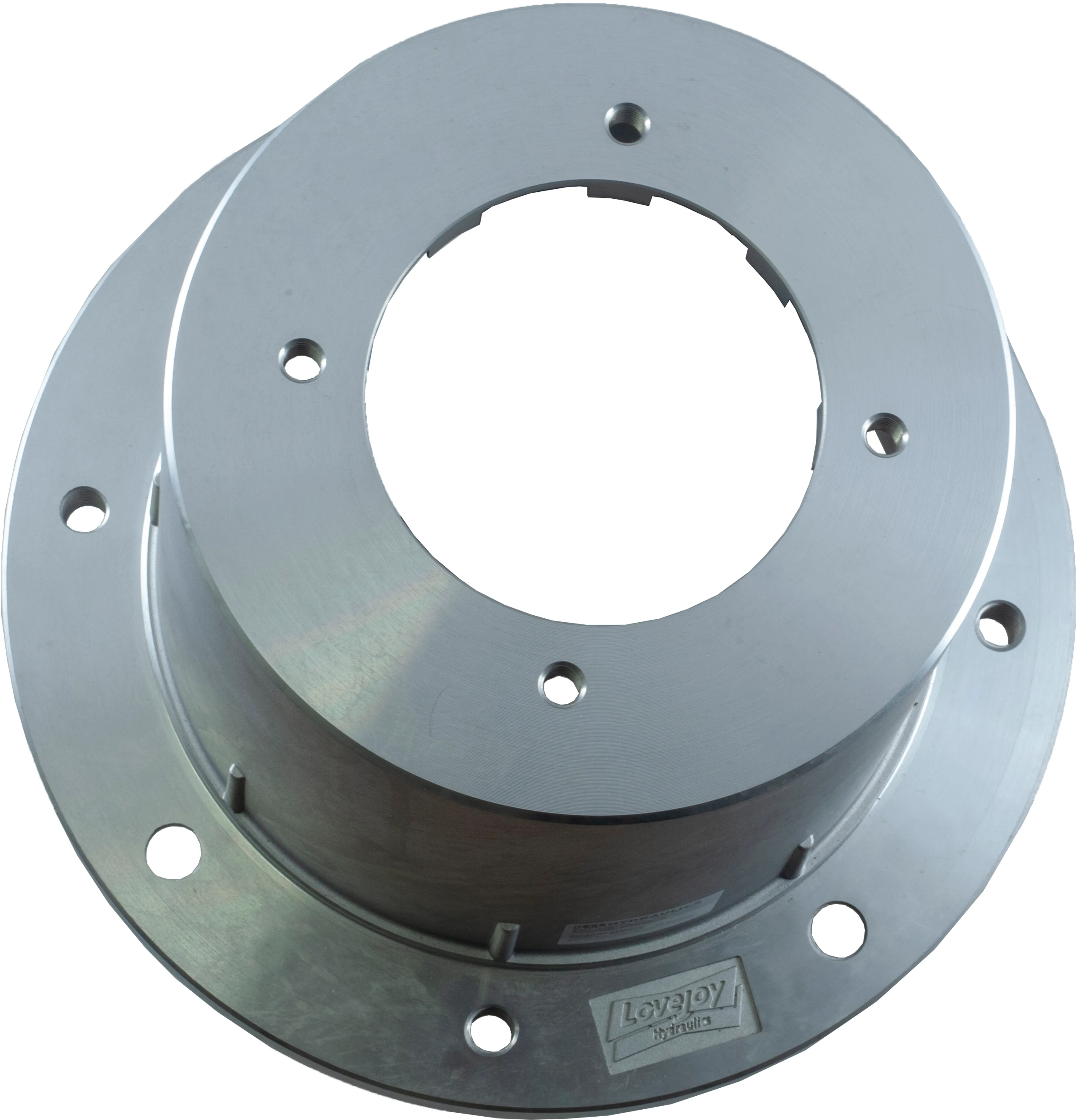

| RLH-RV350-228-ISO125 | 125mm ISO 3019-2 | 350 | 300 | 160L/160M | 1 | |
| RLH-RV350-230-SAEC | SAE C | 350 | 300 | 160L/160M | 1 | |
| RLH-RV400-204-SAEB | SAE B 2-bolt | 400 | 350 | 200L | 1 | |
| RLH-RV400-204-SAEC | SAE C | 400 | 350 | 200L | 1 | |
| RLH-RV450-234-SAEC | SAE C | 450 | 400 | 200L | 1 | |
| RLH-RV550-265-118 | ISO 80mm (OMFB HDS/HDT) | 550 | 500 | 280S/280M | 1 | |
| RLH-RV550-265-SAEC | SAE C | 550 | 500 | 280S/280M | 1 | |
| RLH-RV550-265-SAED | SAE D | 550 | 500 | 280S/280M | 1 |
