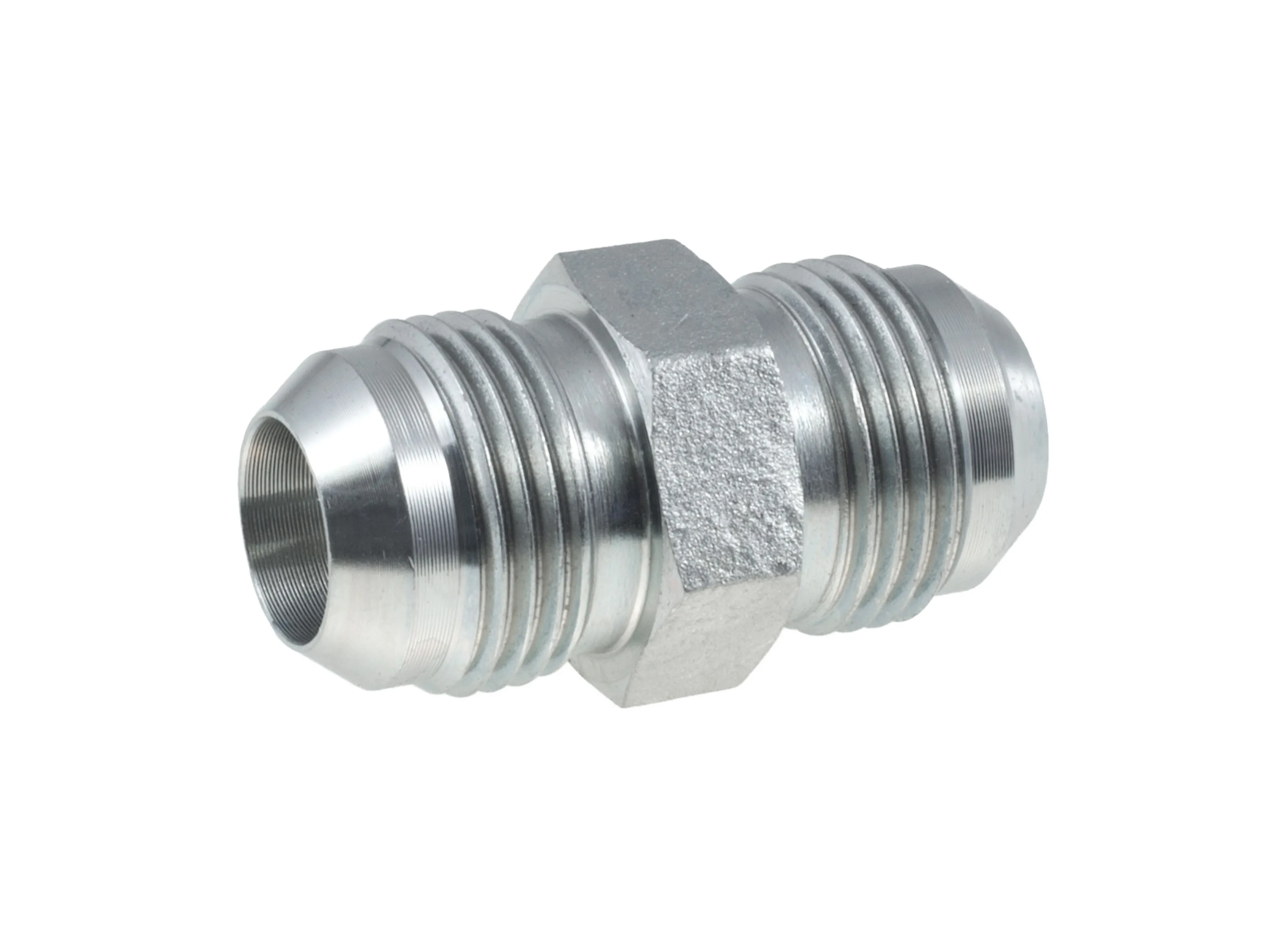

1010 - Skarvkoppling JIC utvändig gänga
Rak koppling hane/hane med utvändig UNF-gänga
| Kod | För rör ytter-Ø (mm) | Gängor (UNF) | Förpackningsstorlek (KPL) | 3D |
|---|---|---|---|---|
| 1010-04 | 6/6 | 7/16-20 / 7/16-20 | 50 | |
| 1010-04-05 | 6/8 | 7/16-20 / 1/2-20 | 1 | |
| 1010-04-06 | 6/8 | 7/16-20 / 9/16-18 | 1 | |
| 1010-05 | 8/8 | 1/2-20 / 1/2-20 | 50 | |
| 1010-05-08 | 8/12 | 1/2-20 / 3/4-16 | 1 | |
| 1010-06 | 10/10 | 9/16-18 / 9/16-18 | 50 | |
| 1010-06-08 | 10/12 | 9/16-18 / 3/4-16 | 1 | |
| 1010-06-10 | 10/14,15,16 | 9/16-18 / 7/8-14 | 1 | |
| 1010-08 | 12/12 | 3/4-16 / 3/4-16 | 50 | |
| 1010-08-10 | 12/14,15,16 | 3/4-16 / 7/8-14 | 1 | |
| 1010-08-12 | 12/18,20 | 3/4-16 / 1 1/16-12 | 1 | |
| 1010-10 | 14,15,16/14,15,16 | 7/8-14 / 7/8-14 | 20 | |
| 1010-10-12 | 14,15,16/18,20 | 7/8-14 / 1 1/16-12 | 1 | |
| 1010-12 | 18,20/18,20 | 1 1/16-12 / 1 1/16-12 | 20 | |
| 1010-12-16 | 18,20/25 | 1 1/16-12 / 1 5/16-12 | 1 | |
| 1010-14 | 1 3/16 | 1 | ||
| 1010-14-16 | 1 3/16 / 1 5/16 | 1 | ||
| 1010-16 | 25/25 | 1 5/16-12 / 1 5/16-12 | 5 | |
| 1010-16-20 | 25/30 | 1 5/16-12 / 1 5/8-12 | 1 | |
| 1010-20 | 30/30 | 1 5/8-12 / 1 5/8-12 | 5 | |
| 1010-20-24 | 30/38 | 1 5/8-12 / 1 7/8-12 | 1 | |
| 1010-24 | 38/38 | 1 7/8-12 / 1 7/8-12 | 5 | |
| 1010-32 | 42/42 | 2 1/2-12 | 1 |
