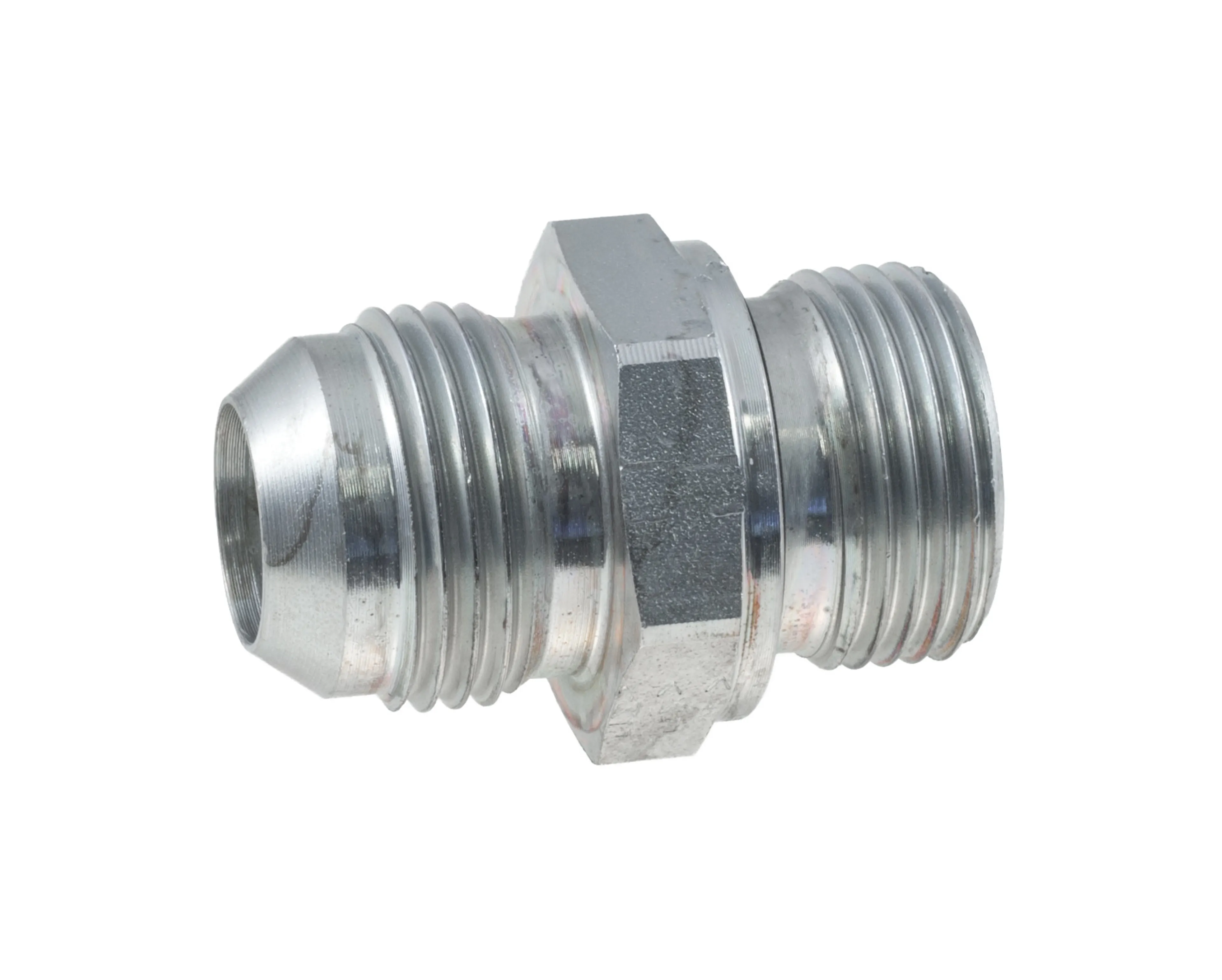

BSP UG / UNF UG ED-tätning
- BSP-gänga utan tätningskon
- Med ED-tätning - Form E (DIN 3852 Part 11)
| Kod | För rör ytter-Ø (mm) | Utvändig gänga (BSP) | Utvändig gänga (UNF) | Förpackningsstorlek (KPL) | 3D |
|---|
| 6013-02-04 | 6 | 1/8" | 7/16-20 | 50 | |
| 6013-02-06 | 10 | 1/8" | 9/16-18 | 50 | |
| 6013-04 | 6 | 1/4" | 7/16-20 | 50 | |
| 6013-04-05 | 6 | 1/4" | 1/2-20 | 50 | |
| 6013-04-06 | 10 | 1/4" | 9/16-18 | 50 | |
| 6013-04-08 | 12 | 1/4" | 3/4-16 | 50 | |
| 6013-06-04 | 6 | 3/8" | 7/16-20 | 50 | |
| 6013-06-05 | 6 | 3/8" | 1/2-20 | 50 | |
| 6013-06 | 10 | 3/8" | 9/16-18 | 50 | |
| 6013-06-08 | 12 | 3/8" | 3/4-16 | 50 | |
| 6013-06-10 | 14,15,16 | 3/8" | 7/8-14 | 20 | |
| 6013-06-12 | 18,20 | 3/8" | 1 1/16-12 | 20 | |
| 6013-08-04 | 6 | 1/2" | 7/16-20 | 20 | |
| 6013-08-06 | 10 | 1/2" | 9/16-18 | 20 | |
| 6013-08 | 12 | 1/2" | 3/4-16 | 20 | |
| 6013-08-10 | 14,15,16 | 1/2" | 7/8-14 | 20 | |
| 6013-08-12 | 18,20 | 1/2" | 1 1/16-12 | 20 | |
| 6013-12-08 | 12 | 3/4" | 3/4-16 | 20 | |
| 6013-12-10 | 14,15,16 | 3/4" | 7/8-14 | 20 | |
| 6013-12 | 18,20 | 3/4" | 1 1/16-12 | 20 | |
| 6013-12-16 | 25 | 3/4" | 1 5/16-12 | 5 | |
| 6013-16-10 | 14,15,16 | 1" | 7/8-14 | 10 | |
| 6013-16-12 | 18,20 | 1" | 1 1/16-12 | 10 | |
| 6013-16 | 25 | 1" | 1 5/16-12 | 10 | |
| 6013-16-20 | 30 | 1" | 1 5/8-12 | 5 | |
| 6013-20-16 | 30 | 1 1/4" | 1 5/16-12 | 5 | |
| 6013-20 | 30 | 1 1/4" | 1 5/8-12 | 5 | |
| 6013-20-24 | 38 | 1 1/4" | 1 7/8 | 5 | |
| 6013-24-20 | 30 | 1 1/2" | 1 5/8-12 | 5 | |
| 6013-24 | 38 | 1 1/2" | 1 7/8 | 5 | |
