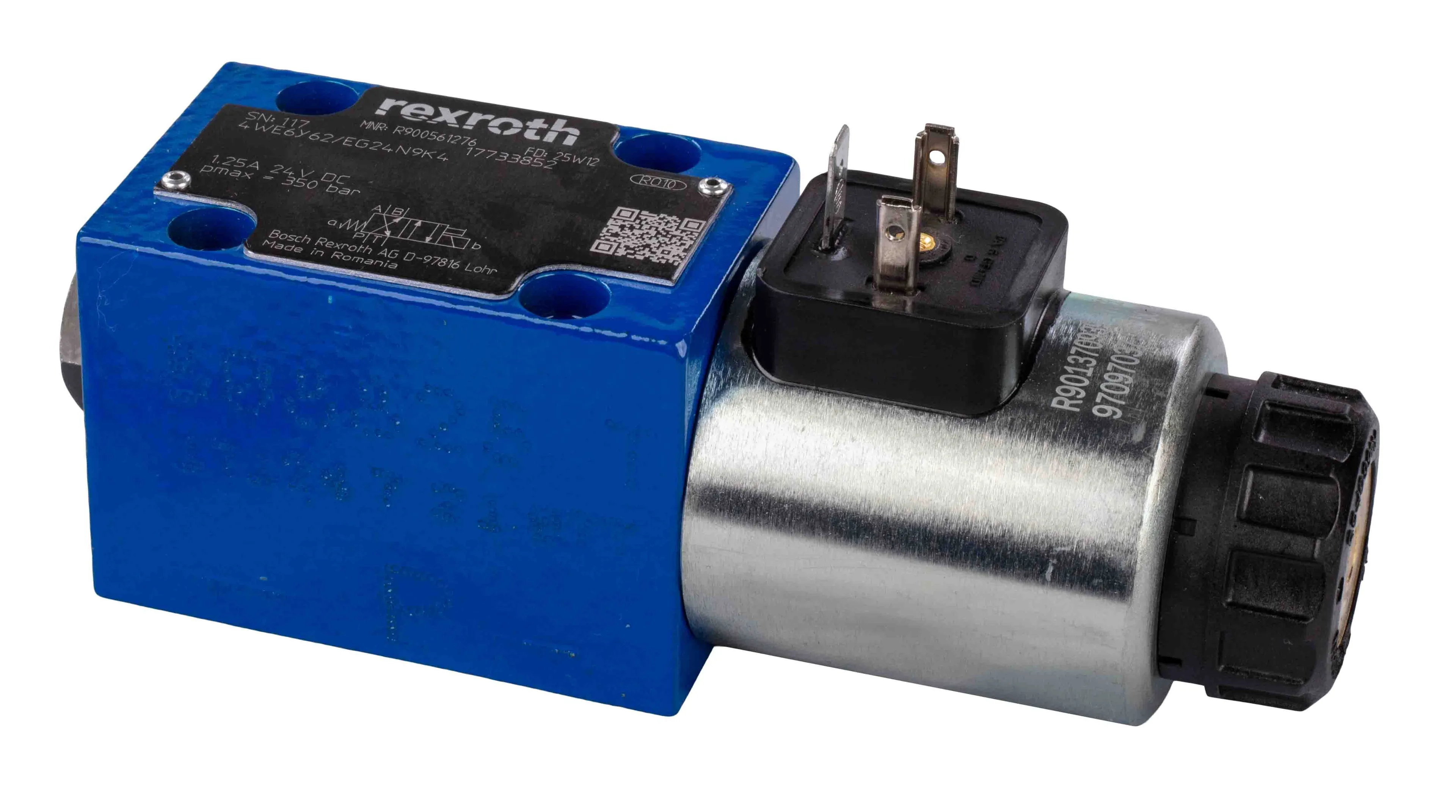

4WE6 Cetop 3/NG6-ventiler Rexroth
Bosch Rexroth plattmonterade Cetop 3/storlek 6-ventiler enligt ISO 4401-03-02-0-05, 70l/min
- Max. arbetstryck 350bar
- Nominellt flöde 70l/min
- Tätningar NBR

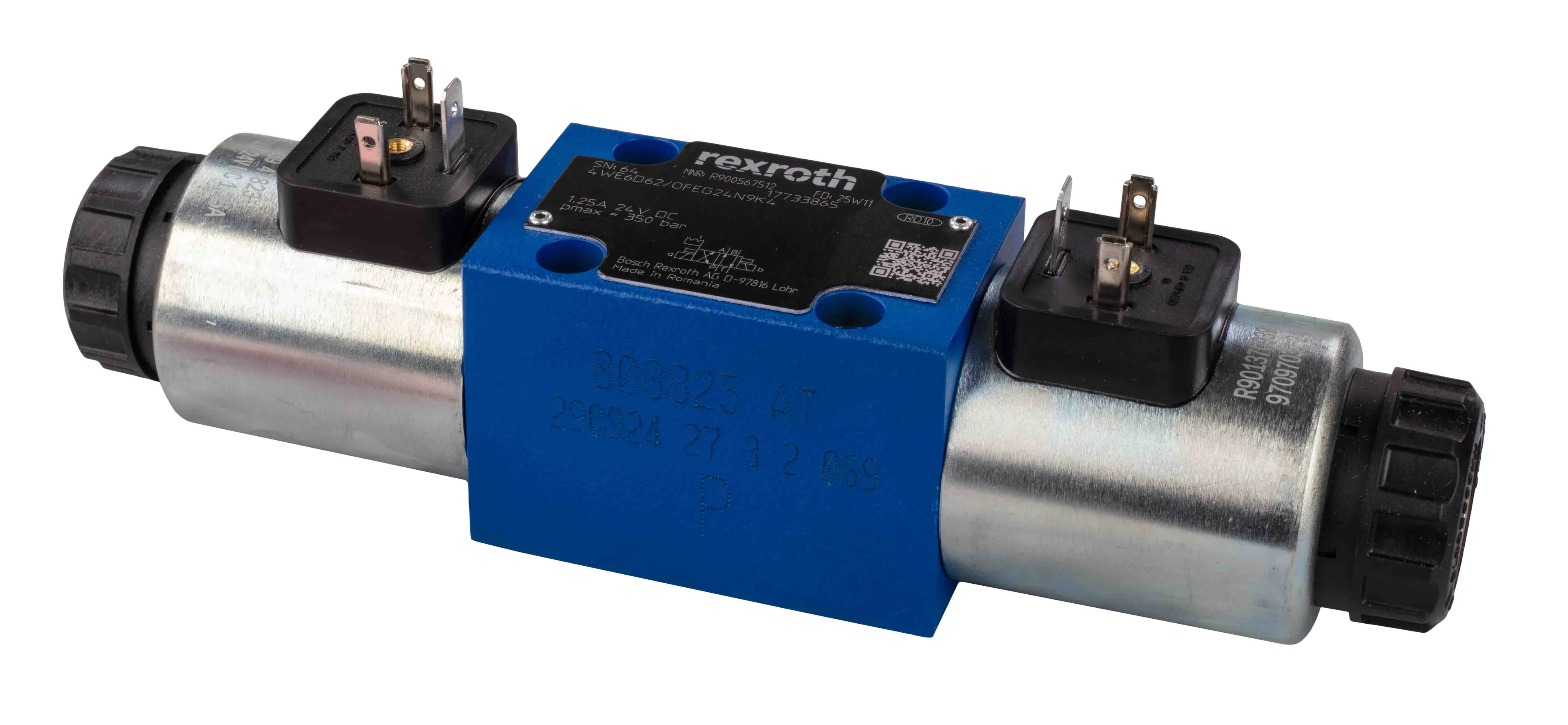

- R900567512 - 4WE6D6X/OFEG24N9K4 utan fjäder och med slidspärr
| Kod | Schema | Slid | Spänning | Tillverkarkod | Förpackningsstorlek (KPL) | 3D |
|---|---|---|---|---|---|---|
| 32-R900561272 | DXF | C | 24 VDC | 4WE6C6X/EG24N9K4 (R900561272) | 1 | |
| 32-R900913281 | DXF | D | 12 VDC | 4WE6D6X/EG12N9K4 (R900913281) | 1 | |
| 32-R900561274 | DXF | D | 24 VDC | 4WE6D6X/EG24N9K4 (R900561274) | 1 | |
| 32-R900546257 | DXF | D | 24 VDC | 4WE6D73-6X/EG24N9K4/A12 (R900546257) | 1 | |
| 32-R900567512 | DXF | D | 24 VDC | 4WE6D6X/OFEG24N9K4 (R900567512) | 1 | |
| 32-R900561276 | DXF | Y | 24 VDC | 4WE6Y6X/EG24N9K4 (R900561276) | 1 | |
| 32-R900561278 | DXF | E | 24 VDC | 4WE6E6X/EG24N9K4 (R900561278) | 1 | |
| 32-R900561282 | DXF | G | 24 VDC | 4WE6G6X/EG24N9K4 (R900561282) | 1 | |
| 32-R900561286 | DXF | H | 24 VDC | 4WE6H6X/EG24N9K4 (R900561286) | 1 | |
| 32-R900549534 | DXF | HA | 24 VDC | 4WE6HA6X/EG24N9K4 (R900549534) | 1 | |
| 32-R900561288 | DXF | J | 24 VDC | 4WE6J6X/EG24N9K4 (R900561288) | 1 | |
| 32-R901084711 | DXF | GA | 12 VDC | 4WE6GA6X/OFEG12N9K4/T06V (R901084711) | 1 |
