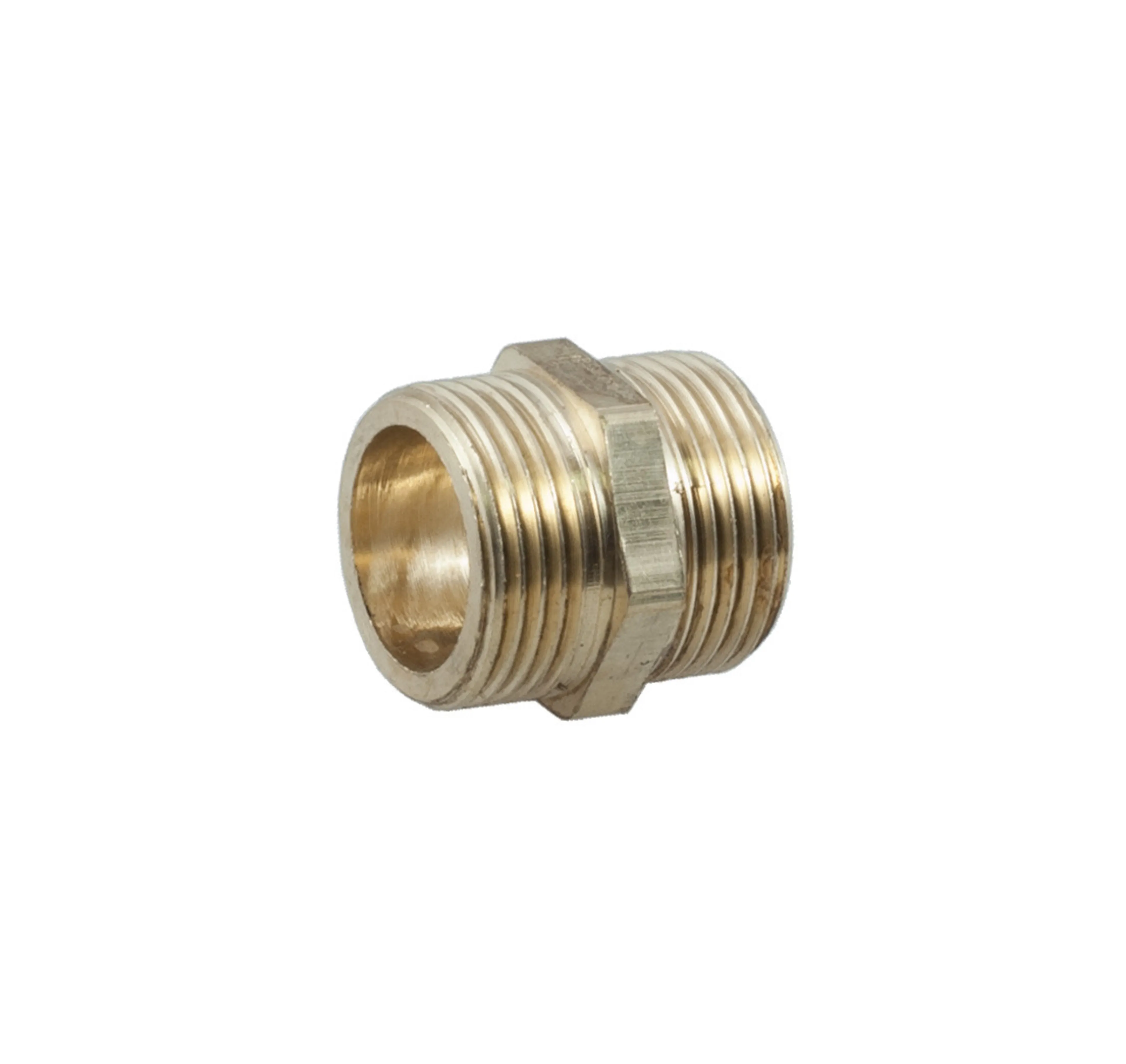

MS12 - Dubbelnippel med utvändiga gängor
- Storlekar 1/8"-1 1/4" max. arbetstryck 16bar
- Storlekar 1 1/2"-2" max. arbetstryck 10bar
| Kod | Utvändig gänga 1 (BSPT) | Utvändig gänga 2 (BSPT) | Förpackningsstorlek (KPL) |
|---|
| MS12-02 | 1/8 | 1/8 | 1 |
| MS12-04 | 1/4 | 1/4 | 1 |
| MS12-04-06 | 1/4 | 3/8 | 500 |
| MS12-04-08 | 1/4 | 1/2 | 300 |
| MS12-04-12 | 1/4 | 3/4 | 1 |
| MS12-06 | 3/8 | 3/8 | 1 |
| MS12-06-08 | 3/8 | 1/2 | 1 |
| MS12-06-12 | 3/8 | 3/4 | 1 |
| MS12-08 | 1/2 | 1/2 | 1 |
| MS12-08-12 | 1/2 | 3/4 | 1 |
| MS12-08-16 | 1/2 | 1 | 1 |
| MS12-08-20 | 1/2 | 1 1/4 | 1 |
| MS12-12 | 3/4 | 3/4 | 1 |
| MS12-12-16 | 3/4 | 1 | 120 |
| MS12-12-20 | 3/4 | 1 1/4 | 1 |
| MS12-16 | 1 | 1 | 1 |
| MS12-16-20 | 1 | 1 1/4 | 1 |
| MS12-16-24 | 1 | 1 1/2 | 50 |
| MS12-16-32 | 1 | 2 | 1 |
| MS12-20 | 1 1/4 | 1 1/4 | 1 |
| MS12-20-24 | 1 1/4 | 1 1/2 | 1 |
| MS12-20-32 | 1 1/4 | 2 | 1 |
| MS12-24 | 1 1/2 | 1 1/2 | 1 |
| MS12-24-32 | 1 1/2 | 2 | 25 |
| MS12-32 | 2 | 2 | 1 |
| MS12-32-40 | 2 | 2 1/2 | 1 |
| MS12-32-48 | 2 | 3 | 1 |
| MS12-40 | 2 1/2 | 2 1/2 | 1 |
| MS12-40-48 | 2 1/2 | 3 | 1 |
| MS12-48 | 3 | 3 | 1 |
| MS12-48-64 | 3 | 4 | 1 |
