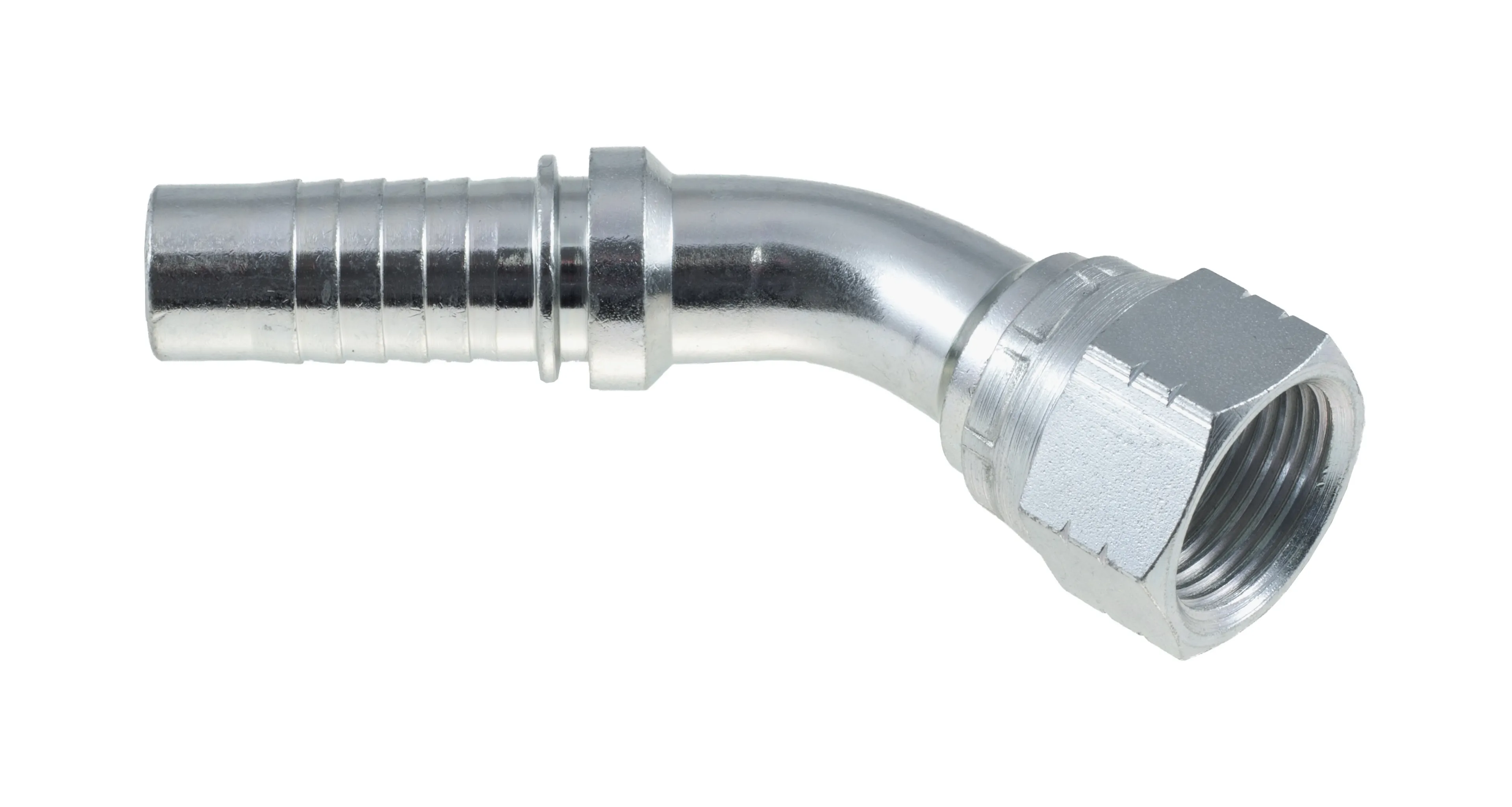

P054 - 45° koppling med invändig UNF-gänga
45° koppling med invändig UNF-gänga och mutter, JIC-tätning
P054-16A = nyckelvidd 38mm
| Kod | Gänga | Slangdiameter (") | Förpackningsstorlek (KPL) | 3D |
|---|---|---|---|---|
| P054-04-03 | 7/16-20 | 3/16 | 50 | |
| P054-04 | 7/16-20 | 1/4 | 50 | |
| P054-05-04 | 1/2-20 | 1/4 | 50 | |
| P054-06 | 9/16-18 | 3/8 | 100 | |
| P054-06-04 | 9/16-18 | 1/4 | 50 | |
| P054-06-05 | 9/16-18 | 5/16 | 50 | |
| P054-08 | 3/4-16 | 1/2 | 50 | |
| P054-08-06 | 3/4-16 | 3/8 | 70 | |
| P054-10 | 7/8-14 | 5/8 | 25 | |
| P054-10-08 | 7/8-14 | 1/2 | 50 | |
| P054-12 | 1 1/16-12 | 3/4 | 20 | |
| P054-12-08 | 1 1/16-12 | 1/2 | 35 | |
| P054-12-10 | 1 1/16-12 | 5/8 | 30 | |
| P054-14-12 | 1 3/16-12 | 3/4 | 20 | |
| P054-16 | 1 5/16-12 | 1 | 10 | |
| P054-16A | 1 5/16-12 | 1 | 1 | |
| P054-16-12 | 1 5/16-12 | 3/4 | 20 | |
| P054-20 | 1 5/8-12 | 1 1/4 | 5 | |
| P054-20-16 | 1 5/8-12 | 1 | 5 | |
| P054-24 | 1 7/8-12 | 1 1/2 | 5 | |
| P054-24-20 | 1 7/8-12 | 1 1/4 | 5 | |
| P054-32 | 2 1/2-12 | 2 | 4 |
