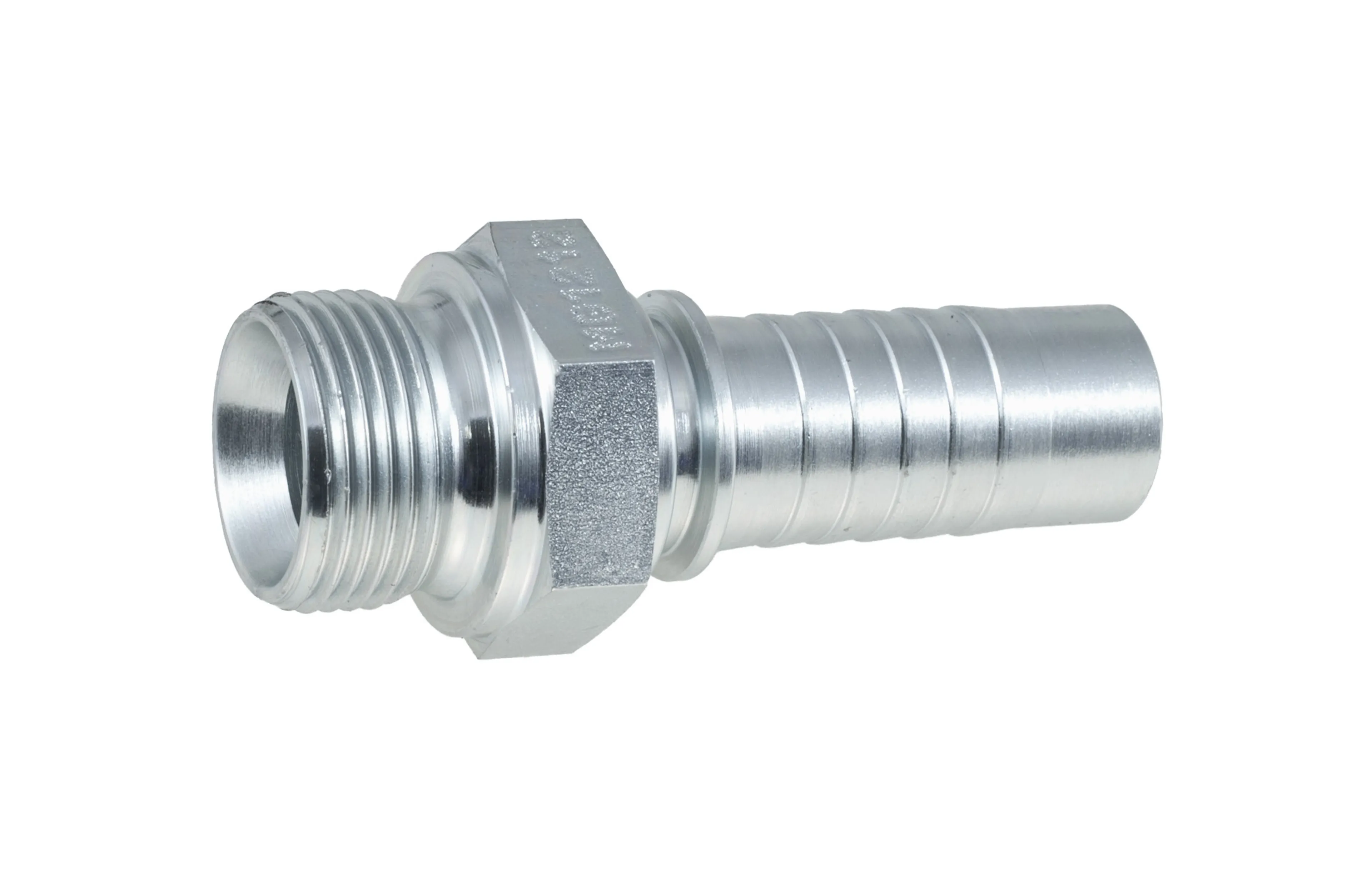

P120 - BSP-koppling med utvändig gänga
| Kod | Gänga | Slangdiameter (") | Förpackningsstorlek (KPL) | 3D |
|---|
| P120-02-03 | 1/8 | 3/16 | 100 | |
| P120-02-04 | 1/8 | 1/4 | 100 | |
| P120-02-06 | 1/8 | 3/8 | 1 | |
| P120-04 | 1/4 | 1/4 | 250 | |
| P120-04-05 | 1/4 | 5/16 | 50 | |
| P120-04-06 | 1/4 | 3/8 | 50 | |
| P120-04-08 | 1/4 | 1/2 | 50 | |
| P120-06 | 3/8 | 3/8 | 150 | |
| P120-06-04 | 3/8 | 1/4 | 150 | |
| P120-06-05 | 1/2 | 5/16 | 150 | |
| P120-06-08 | 3/8 | 1/2 | 50 | |
| P120-08 | 1/2 | 1/2 | 75 | |
| P120-08-04 | 1/2 | 1/4 | 100 | |
| P120-08-05 | 1/2 | 5/16 | 100 | |
| P120-08-06 | 1/2 | 3/8 | 100 | |
| P120-08-10 | 1/2 | 5/8 | 20 | |
| P120-08-12 | 1/2 | 3/42 | 20 | |
| P120-10 | 5/8 | 5/8 | 50 | |
| P120-10-08 | 5/8 | 1/2 | 20 | |
| P120-12 | 3/4 | 3/4 | 100 | |
| P120-12-08 | 3/4 | 1/2 | 50 | |
| P120-12-10 | 3/4 | 5/8 | 20 | |
| P120-12-16 | 3/4 | 1 | 10 | |
| P120-16 | 1 | 1 | 50 | |
| P120-16-12 | 1 | 3/4 | 25 | |
| P120-16-20 | 1 | 1 1/4 | 10 | |
| P120-16-24 | 1 | 1 1/2 | 1 | |
| P120-20 | 1 1/4 | 1 1/4 | 10 | |
| P120-20-16 | 1 1/4 | 1 | 15 | |
| P120-20-24 | 1 1/4 | 1 1/2 | 1 | |
| P120-24-20 | 1 1/2 | 1 1/4 | 10 | |
| P120-24 | 1 1/2 | 1 1/2 | 10 | |
| P120-32-24 | 2 | 1 1/2 | 5 | |
| P120-32 | 2 | 2 | 5 | |
