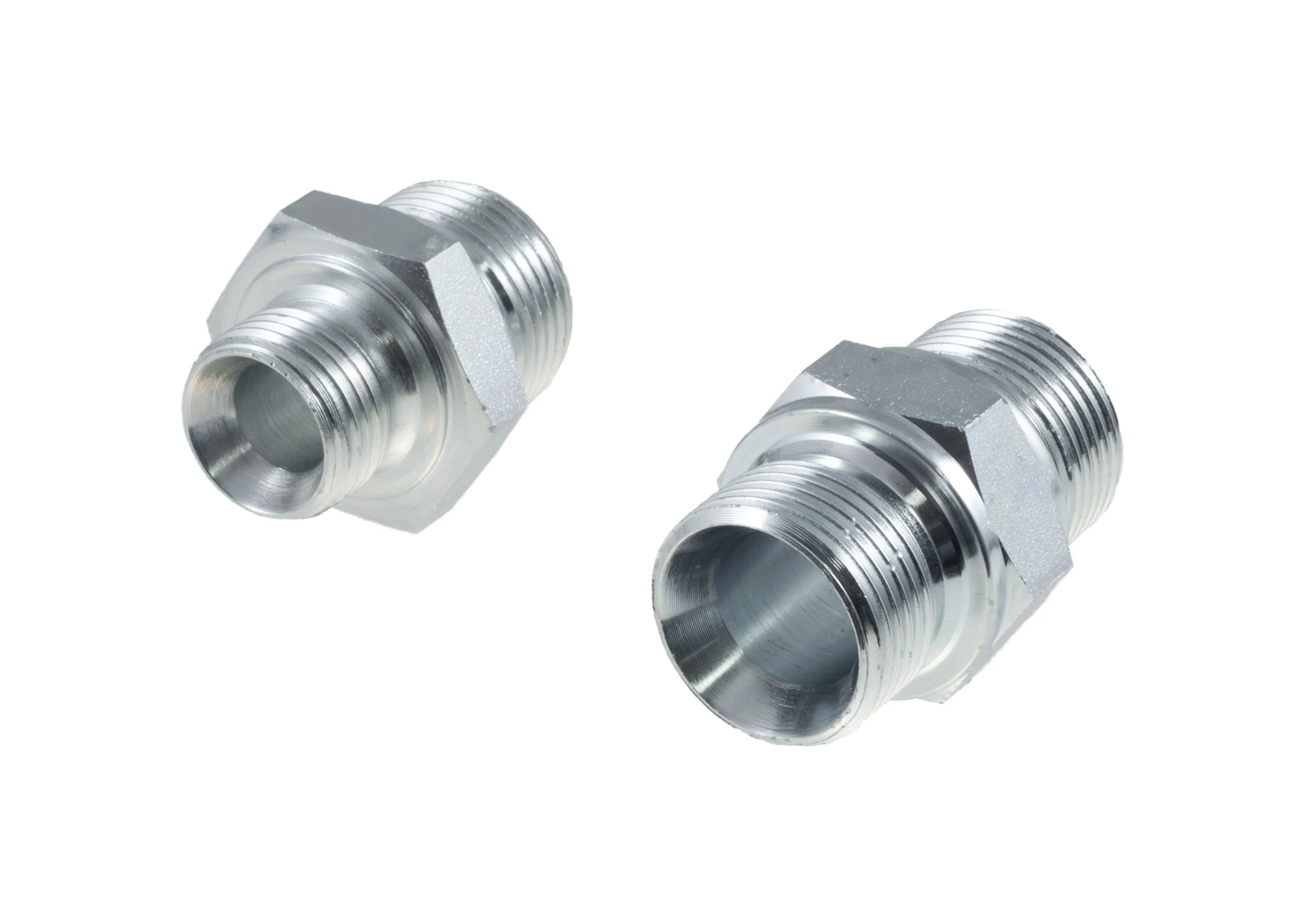

4000 - Dubbelnippel BSP/M utvändig gänga
- 4000-08-M27X2 ökar slangpaketets längd med 17mm + USITR-08
| Kod | Gänga 1 (BSP) | Gänga 2 (M) | Förpackningsstorlek (KPL) | 3D |
|---|
| 4000-02-M12 | 1/8 | M12x1,5 | 100 | |
| 4000-04-M10 | 1/4 | M10x1 | 100 | |
| 4000-04-M105 | 1/4 | M10x1,5 | 1 | |
| 4000-04-M12 | 1/4 | M12x1,5 | 100 | |
| 4000-04-M14 | 1/4 | M14x1,5 | 100 | |
| 4000-04-M16 | 1/4 | M16x1,5 | 75 | |
| 4000-04-M18 | 1/4 | M18x1,5 | 50 | |
| 4000-04-M20 | 1/4 | M20x1,5 | 1 | |
| 4000-06-M12 | 3/8 | M12x1,5 | 50 | |
| 4000-06-M14 | 3/8 | M14x1,5 | 50 | |
| 4000-06-M16 | 3/8 | M16x1,5 | 50 | |
| 4000-06-M18 | 3/8 | M18x1,5 | 150 | |
| 4000-06-M20 | 3/8 | M20x1,5 | 100 | |
| 4000-06-M22 | 3/8 | M22x1,5 | 100 | |
| 4000-08-M12 | 1/2 | M12x1,5 | 50 | |
| 4000-08-M14 | 1/2 | M14x1,5 | 50 | |
| 4000-08-M16 | 1/2 | M16x1,5 | 100 | |
| 4000-08-M18 | 1/2 | M18x1,5 | 100 | |
| 4000-08-M20 | 1/2 | M20x1,5 | 100 | |
| 4000-08-M22 | 1/2 | M22x1,5 | 100 | |
| 4000-08-M24 | 1/2 | M24x1,5 | 20 | |
| 4000-08-M26 | 1/2 | M26x1,5 | 20 | |
| 4000-08-M27 | 1/2 | M27x1,5 | 1 | |
| 4000-08-M27X2 | 1/2 | M27x2 | 1 | |
| 4000-12-M20 | 3/4 | M20x1,5 | 20 | |
| 4000-12-M22 | 3/4 | M22x1,5 | 20 | |
| 4000-12-M26 | 3/4 | M26x1,5 | 20 | |
| 4000-12-M27 | 3/4 | M27x1,5 | 1 | |
| 4000-12-M27X2 | 3/4 | M27x2 | 1 | |
| 4000-12-M30 | 3/4 | M30x1,5 | 20 | |
| 4000-12-M30X2 | 3/4 | M30x2 | 1 | |
| 4000-12-M33 | 3/4 | M33x2 | 1 | |
| 4000-16-M33 | 1 | M33x2 | 1 | |
| 4000-16-M33X15 | 1 | M33x1,5 | 1 | |
