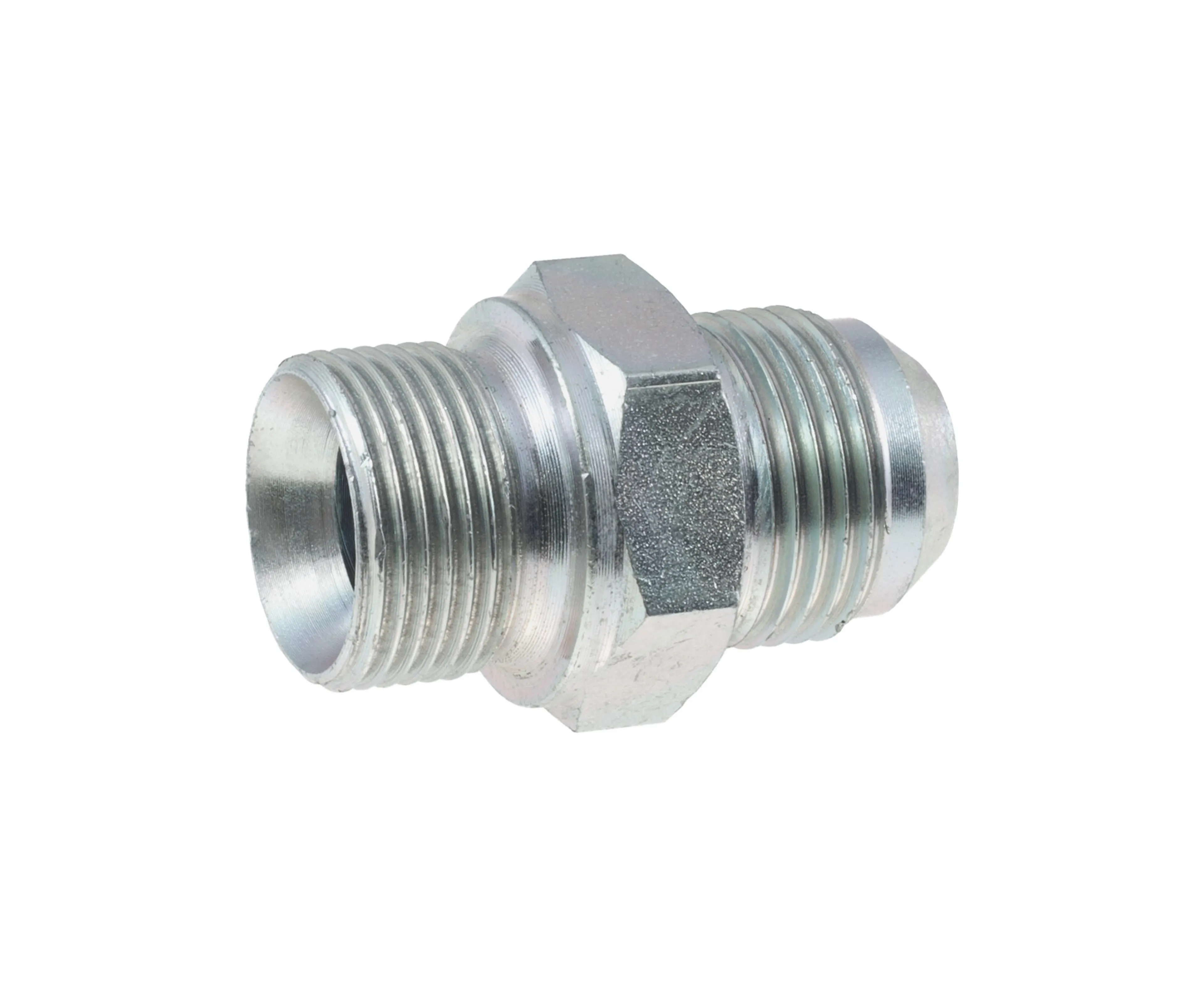

6011 - BSP utv. / UNF utv.
- BSP-utvändig gänga med tätkon
- utan tätning
| Kod | För rör ytter-Ø (mm) | Utvändig gänga R (BSP) | Utvändig gänga (UNF) | Förpackningsstorlek (KPL) | 3D |
|---|
| 6011-02-04 | 6 | 1/8 | 7/16-20 | 25 | |
| 6011-02-06 | 10 | 1/8 | 9/16-18 | 250 | |
| 6011-04 | 6 | 1/4 | 7/16-20 | 100 | |
| 6011-04-05 | 8 | 1/4 | 1/2-20 | 1 | |
| 6011-04-06 | 20 | 1/4 | 9/16-18 | 50 | |
| 6011-04-08 | 12 | 1/4 | 3/4-16 | 50 | |
| 6011-06 | 10 | 3/8 | 9/16-18 | 20 | |
| 6011-06-04 | 6 | 3/8 | 7/16-20 | 75 | |
| 6011-06-08 | 12 | 3/8 | 3/4-16 | 50 | |
| 6011-08-05 | 8 | 1/2 | 1/2-20 | 1 | |
| 6011-08 | 12 | 1/2 | 3/4-16 | 20 | |
| 6011-08-06 | 10 | 1/2 | 9/16-18 | 50 | |
| 6011-08-10 | 14,15,16 | 1/2 | 7/8-14 | 20 | |
| 6011-08-12 | 18,20 | 1/2 | 1 1/16-12 | 65 | |
| 6011-10 | 14,15,16 | 5/8 | 7/8-14 | 1 | |
| 6011-10-08 | 12 | 5/8 | 3/4-16 | 1 | |
| 6011-12 | 18,20 | 3/4 | 1 1/16-12 | 10 | |
| 6011-12-08 | 12 | 3/4 | 3/4-16 | 20 | |
| 6011-12-10 | 14,15,16 | 3/4 | 7/8-14 | 20 | |
| 6011-12-14 | 22 | 3/4 | 1 3/16-12 | 1 | |
| 6011-12-16 | 25 | 3/4 | 1 5/16-12 | 5 | |
| 6011-12-20 | 30 | 3/4 | 1 5/8-12 | 1 | |
| 6011-16 | 25 | 1 | 1 5/16-12 | 5 | |
| 6011-16-12 | 18,20 | 1 | 1 1/16-12 | 5 | |
| 6011-16-20 | 30 | 1 | 1 5/8-12 | 20 | |
| 6011-20 | 30 | 1 1/4 | 1 5/8-12 | 10 | |
| 6011-20-16 | 25 | 1 1/4 | 1 5/16-12 | 5 | |
| 6011-20-24 | 38 | 1 1/4 | 1 7/8 | 25 | |
| 6011-24 | 38 | 1 1/2 | 1 7/8 | 20 | |
| 6011-24-20 | 30 | 1 1/2 | 1 5/8 | 25 | |
| 6011-24-32 | 38 | 1 1/2 | 2 1/2 | 1 | |
| 6011-32 | 50 | 2 | 2 1/2 | 1 | |
| 6011-32-24 | 50 | 2 | 1 7/8 | 1 | |
