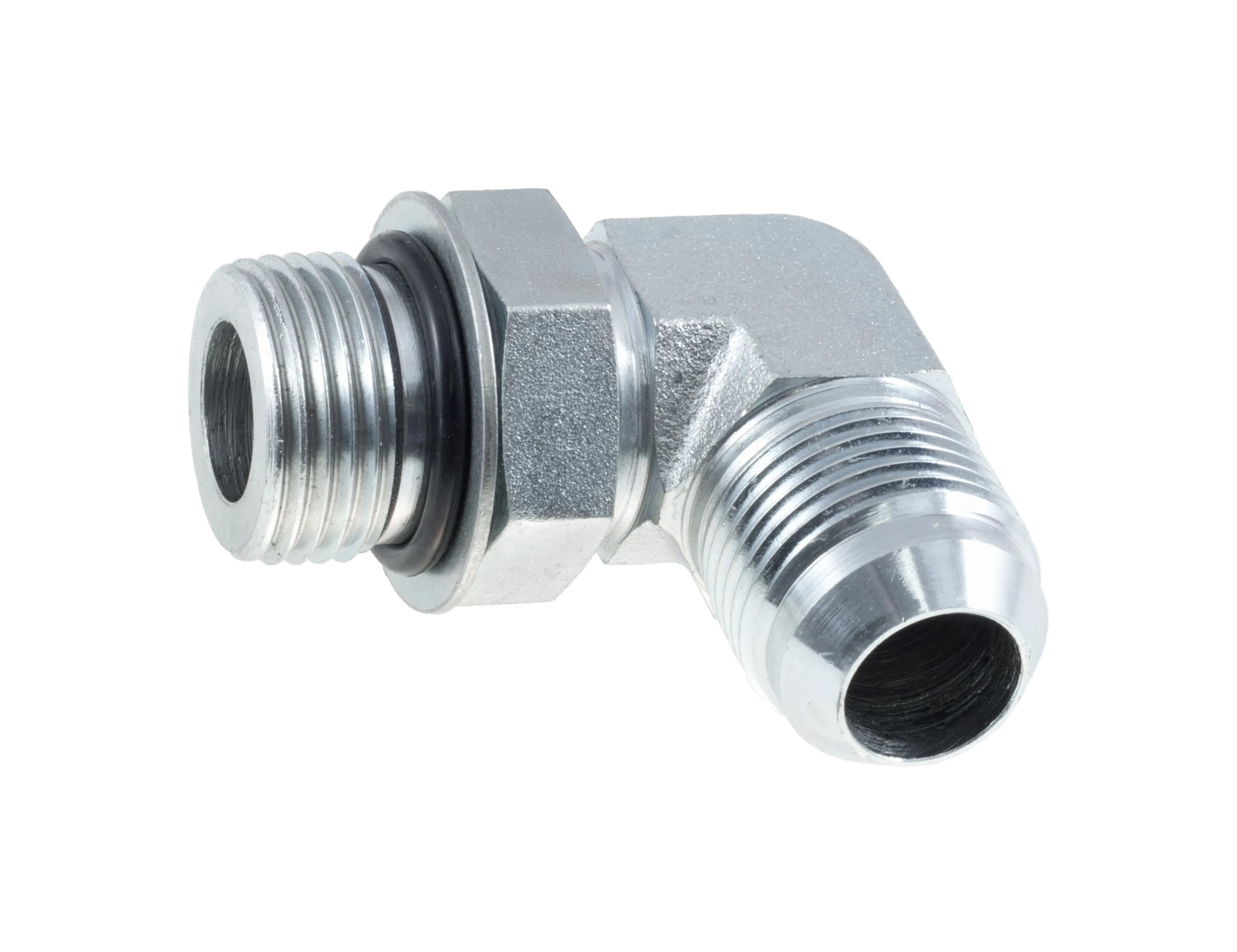

1610 - 90º UNF utv. / UNF utv.
| Kod | För rör ytter-Ø (mm) | Utvändig gänga (UNF) | Utvändig gänga (UNF) | Förpackningsstorlek (KPL) | 3D |
|---|
| 1610-04 | 6 | 7/16-20 | 7/16-20 | 20 | |
| 1610-04-06 | 10 | 7/16-20 | 9/16-18 | 1 | |
| 1610-05 | 8 | 1/2-20 | 1/2-20 | 20 | |
| 1610-06-04 | 6 | 9/16-18 | | 20 | |
| 1610-06 | 10 | 9/16-18 | 9/16-18 | 20 | |
| 1610-06-08 | 12 | 9/16-18 | 3/4-16 | 1 | |
| 1610-08 | 12 | 3/4-16 | 3/4-16 | 20 | |
| 1610-08-06 | 10 | 3/4-16 | 9/16-18 | 20 | |
| 1610-08-10 | 14,15,16 | 3/4-16 | 7/8-14 | 20 | |
| 1610-10 | 14,15,16 | 7/8-14 | 7/8-14 | 10 | |
| 1610-10-08 | 12 | 7/8-14 | 3/4-16 | 10 | |
| 1610-10-12 | 18,20 | 7/8-14 | 1 1/16-12 | 5 | |
| 1610-12 | 18,20 | 1 1/16-12 | 1 1/16-12 | 5 | |
| 1610-12-10 | 14,15,16 | 1 1/16-12 | 7/8-14 | 5 | |
| 1610-12-16 | 25 | 1 1/16-12 | 1 5/16-12 | 5 | |
| 1610-16 | 25 | 1 5/16-12 | 1 5/16-12 | 5 | |
| 1610-16-12 | 18,20 | 1 5/16-12 | 1 1/16-12 | 5 | |
| 1610-16-20 | 30 | 1 5/16-12 | 1 5/8-12 | 1 | |
| 1610-20 | 30 | 1 5/8-12 | 1 5/8-12 | 5 | |
| 1610-20-16 | 25 | 1 5/8-12 | 1 5/16-12 | 1 | |
| 1610-24 | 38 | 1 7/8-12 | 1 7/8-12 | 1 | |
