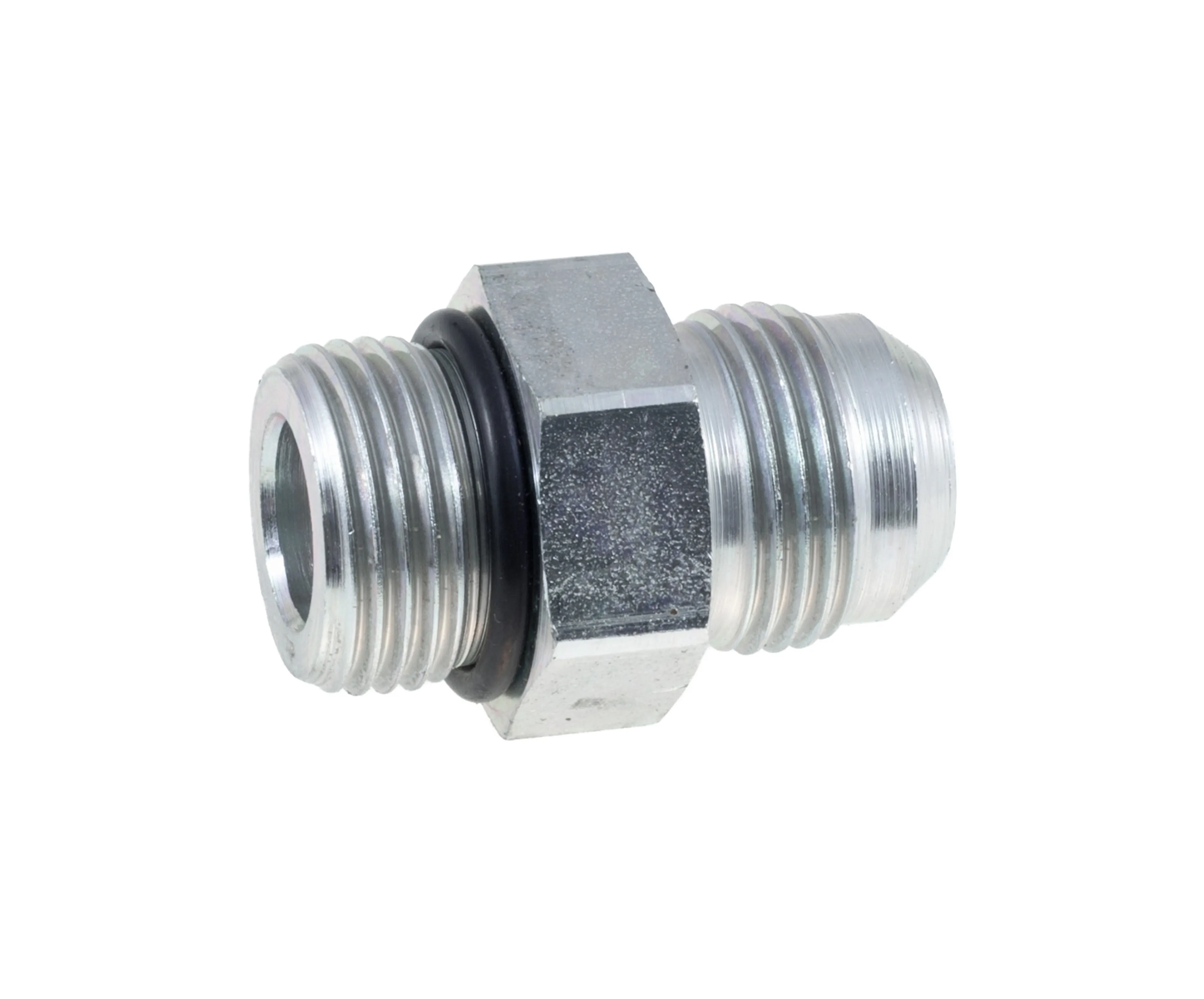

1510 - Rak koppling UNF UG/UNF UG
| Kod | För rör ytter-Ø (mm) | Utvändig gänga (UNF) | Utvändig gänga (UNF) | Förpackningsstorlek (KPL) | 3D |
|---|
| 1510-04 | 6 | 7/16-20 | 7/16-20 | 50 | |
| 1510-04-05 | 8 | 7/16-20 | 1/2-20 | 0 | |
| 1510-04-06 | 10 | 7/16-20 | 9/16-18 | 20 | |
| 1510-05 | 8 | 1/2-20 | 1/2-20 | 20 | |
| 1510-05-04 | 6 | 1/2-20 | 7/16-20 | 1 | |
| 1510-05-06 | 10 | 1/2-20 | 9/16-18 | 20 | |
| 1510-06 | 10 | 9/16-18 | 9/16-18 | 50 | |
| 1510-06-04 | 6 | 9/16-18 | 7/16-20 | 50 | |
| 1510-06-08 | 12 | 9/16-18 | 3/4-16 | 50 | |
| 1510-08-05 | 8 | 3/4-16 | 1/2-20 | 1 | |
| 1510-08-06 | 10 | 3/4-16 | 9/16-18 | 50 | |
| 1510-08 | 12 | 3/4-16 | 3/4-16 | 50 | |
| 1510-08-10 | 14,15,16 | 3/4-16 | 7/8-14 | 20 | |
| 1510-08-12 | 18,20 | 3/4-16 | 1 1/16-12 | 20 | |
| 1510-10 | 14,15,16 | 7/8-14 | 7/8-14 | 20 | |
| 1510-10-08 | 12 | 7/8-14 | 3/4-16 | 20 | |
| 1510-10-12 | 18,20 | 7/8-14 | 1 1/16-12 | 20 | |
| 1510-12 | 18,20 | 1 1/16-12 | 1 1/16-12 | 20 | |
| 1510-12-06 | 10 | | | 1 | |
| 1510-12-08 | 12 | 1 1/16-12 | 3/4-16 | 20 | |
| 1510-12-10 | 14,15,16 | 1 1/16-12 | 7/8-14 | 20 | |
| 1510-12-16 | 25 | 1 1/16-12 | 1 5/16-12 | 5 | |
| 1510-16 | 25 | 1 5/16-12 | 1 5/16-12 | 5 | |
| 1510-16-12 | 18,20 | 1 5/16-12 | 1 1/16-12 | 5 | |
| 1510-16-20 | 30 | 1 5/16-12 | 1 5/8-12 | 20 | |
| 1510-20 | 30 | 1 5/8-12 | 1 5/8-12 | 5 | |
| 1510-20-16 | 25 | 1 5/8-12 | 1 5/16-12 | 5 | |
| 1510-24 | 38 | 1 7/8-12 | 1 7/8-12 | 0 | |
| 1510-24-20 | 38 | 1 7/8-12 | 1 5/8-12 | 1 | |
