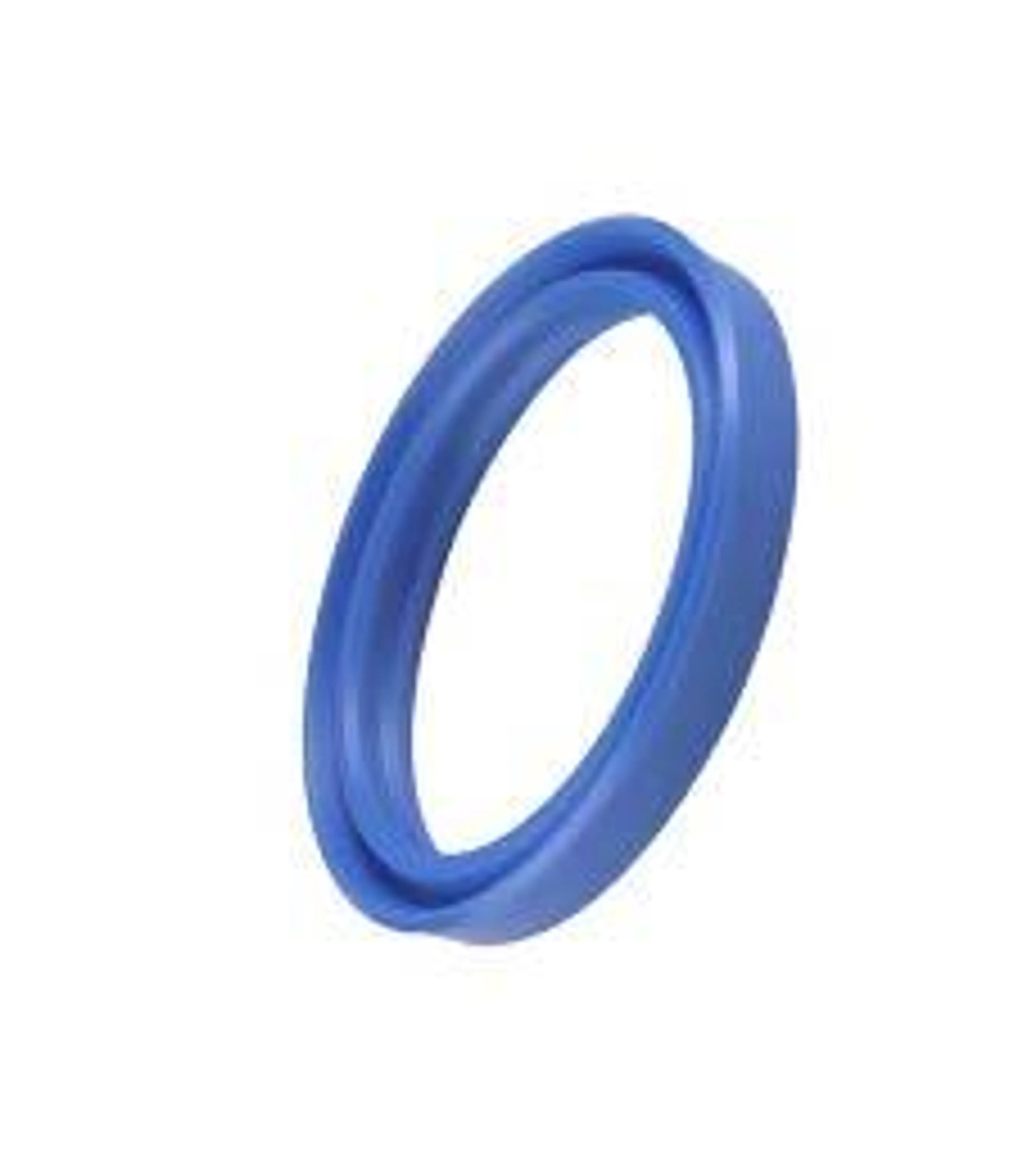

TTI - Stångtätning PU 400bar

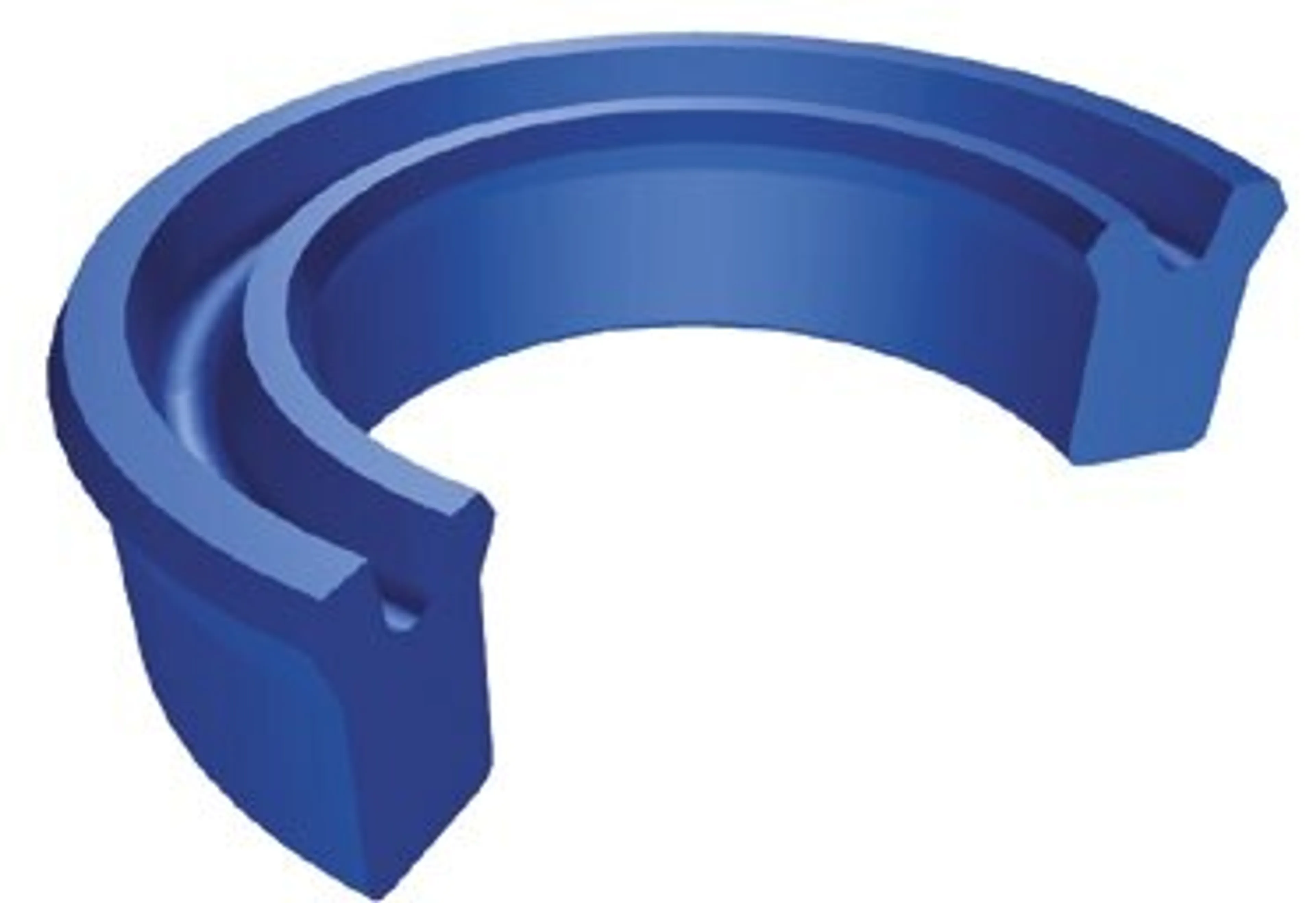

TTI U-ring i polyuretan för tätning av cylinderstänger
- Guarnitec TTI
- Motsvarar bl.a. typerna K22, TM20, UN, MUP, RU0.., RS, T20, MA30, SNI30, SI, RSA, SU-Di-P, Freudenberg NI 300, Parker BS, Hallite 605
| Kod | Innerdiameter d (mm) | Ytterdiameter D (mm) | Monteringsspårets höjd L (mm) | Tätningshöjd H (mm) | Förpackningsstorlek (KPL) |
|---|---|---|---|---|---|
| 89-TTI-8X18X8 | 8 | 18 | 9 | 8 | 1 |
| 89-TTI-14X24X7 | 14 | 24 | 8 | 7 | 1 |
| 89-TTI-18X26X5,3 | 18 | 26 | 6,3 | 5,3 | 1 |
| 89-TTI/L-18X26X6 | 18 | 26 | 7 | 6 | 1 |
| 89-TTI-20X30X8 | 20 | 30 | 9 | 8 | 1 |
| 89-TTI/L-25X33X6,5 | 25 | 33 | 7,5 | 6,5 | 1 |
| 89-TTI/L-25X33X8 | 25 | 33 | 9 | 8 | 1 |
| 89-TTI-25X33X10 | 25 | 33 | 11 | 10 | 1 |
| 89-TTI-25X35X8 | 25 | 35 | 9 | 8 | 1 |
| 89-TTI/L-25X35X8 | 25 | 35 | 9 | 8 | 1 |
| 89-TTI/L-25X35X10 | 25 | 35 | 11 | 10 | 1 |
| 89-TTI-30X38X8 | 30 | 38 | 9 | 8 | 1 |
| 89-TTI/L-30X40X6,5 | 30 | 40 | 7,5 | 6,5 | 1 |
| 89-TTI-30X40X10 | 30 | 40 | 11 | 10 | 1 |
| 89-TTI/L-30X40X10 | 30 | 40 | 11 | 10 | 1 |
| 89-TTI/L-30X45X10 | 30 | 45 | 11 | 10 | 1 |
| 89-TTI/L-32X40X7 | 32 | 40 | 8 | 7 | 1 |
| 89-TTI/L-32X40X8 | 32 | 40 | 9 | 8 | 1 |
| 89-TTI-32X42X7 | 32 | 42 | 8 | 7 | 1 |
| 89-TTI-32X47X10 | 32 | 47 | 11 | 10 | 1 |
| 89-TTI/L-32X42X10 | 32 | 42 | 11 | 10 | 1 |
| 89-TTI/L-35X45X7 | 35 | 45 | 8 | 7 | 1 |
| 89-TTI/L-35X45X10 | 35 | 45 | 11 | 10 | 1 |
| 89-TTI-35X46X8 | 35 | 46 | 9 | 8 | 1 |
| 89-TTI/L-36X44X6 | 36 | 44 | 7 | 6 | 1 |
| 89-TTI/L-36X46X10 | 36 | 46 | 11 | 10 | 1 |
| 89-TTI-36X48X8 | 36 | 48 | 9 | 8 | 1 |
| 89-TTI-40X48X8 | 40 | 48 | 9 | 8 | 1 |
| 89-TTI/L-40X50X6 | 40 | 50 | 7 | 6 | 1 |
| 89-TTI/L-40X50X10 | 40 | 50 | 11 | 10 | 1 |
| 89-TTI-40X52X8 | 40 | 52 | 9 | 8 | 1 |
| 89-TTI/L-45X55X6 | 45 | 55 | 7 | 6 | 1 |
| 89-TTI/L-45X55X10 | 45 | 55 | 11 | 10 | 1 |
| 89-TTI/L-50X57X10 | 50 | 57 | 11 | 10 | 1 |
| 89-TTI/L-50X60X10 | 50 | 60 | 11 | 10 | 1 |
| 89-TTI/L-50X65X10 | 50 | 65 | 11 | 10 | 1 |
| 89-TTI/L-50X65X11 | 50 | 65 | 12 | 11 | 1 |
| 89-TTI-50X70X10 | 50 | 70 | 11 | 10 | 1 |
| 89-TTI/L-55X63X8 | 55 | 63 | 9 | 8 | 1 |
| 89-TTI/L-55X63X11,5 | 55 | 63 | 13,5 | 12,5 | 1 |
| 89-TTI/L-55X65X10 | 55 | 65 | 11 | 10 | 1 |
| 89-TTI/L-AI-55X65X12 | 55 | 65 | 13 | 12 | 1 |
| 89-TTI/L-55X65X13 | 55 | 65 | 14 | 13 | 1 |
| 89-TTI-56X66X10 | 56 | 66 | 11 | 10 | 1 |
| 89-TTI-56X71X10 | 56 | 71 | 11 | 10 | 1 |
| 89-TTI-60X70X12 | 60 | 70 | 13 | 12 | 1 |
| 89-TTI-60X70X7 | 60 | 70 | 8 | 7 | 1 |
| 89-TTI/L-60X70X10 | 60 | 70 | 11 | 10 | 1 |
| 89-TTI/L-60X70X11,5 | 60 | 70 | 12,5 | 11,5 | 1 |
| 89-TTI-63X73X10 | 63 | 73 | 11 | 10 | 1 |
| 89-TTI/L-60X75X10 | 60 | 75 | 11 | 10 | 1 |
| 89-TTI/L-60X80X12 | 60 | 80 | 13 | 12 | 1 |
| 89-TTI/L-63X73X12 | 63 | 73 | 13 | 12 | 1 |
| 89-TTI/L-63X75X10 | 63 | 75 | 11 | 10 | 1 |
| 89-TTI-63X78X10 | 63 | 78 | 11 | 10 | 1 |
| 89-TTI/L-AI-63X78X11,5 | 63 | 78 | 12,5 | 11,5 | 1 |
| 89-TTI/L-63X78X12,5 | 63 | 78 | 13,5 | 12,5 | 1 |
| 89-TTI/L-63X83X13,5 | 63 | 83 | 14,5 | 13,5 | 1 |
| 89-TTI/L-65X75X12 | 65 | 75 | 13 | 12 | 1 |
| 89-TTI-65X77X9 | 65 | 77 | 10 | 9 | 1 |
| 89-TTI/L-69,8X82,5X9 | 69,8 | 82,5 | 10 | 9 | 1 |
| 89-TTI/L-70X78X11,5 | 70 | 78 | 12,5 | 11,5 | 1 |
| 89-TTI/L-70X80X7 | 70 | 80 | 8 | 7 | 1 |
| 89-TTI/L-70X80X8 | 70 | 80 | 9 | 8 | 1 |
| 89-TTI/L-70X80X11,5 | 70 | 80 | 12,5 | 11,5 | 1 |
| 89-TTI-70X80X12 | 70 | 80 | 13 | 12 | 1 |
| 89-TTI/L-75X85X11,5 | 75 | 85 | 12,5 | 11,5 | 1 |
| 89-TTI-70X90X12 | 70 | 90 | 13 | 12 | 1 |
| 89-TTI-75X90X10 | 75 | 90 | 11 | 10 | 1 |
| 89-TTI/L-80X90X12 | 80 | 90 | 13 | 12 | 1 |
| 89-TTI-80X100X12 | 80 | 100 | 13 | 12 | 1 |
| 89-TTI/L-80X100X12 | 80 | 100 | 13 | 12 | 1 |
| 89-TTI-80X95X10 | 80 | 95 | 11 | 10 | 1 |
| 89-TTI-80X95X12 | 80 | 95 | 13 | 12 | 1 |
| 89-TTI/L-85X93X11,5 | 85 | 93 | 12,5 | 11,5 | 1 |
| 89-TTI/L-90X100X11,5 | 90 | 100 | 12,5 | 11,5 | 1 |
| 89-TTI-90X105X8,5 | 90 | 105 | 9,5 | 8,5 | 1 |
| 89-TTI/L-90X105X9 | 90 | 105 | 10 | 9 | 1 |
| 89-TTI/L-90X105X12 | 90 | 105 | 13 | 12 | 1 |
| 89-TTI-90X110X12 | 90 | 110 | 13 | 12 | 1 |
| 89-TTI/L-90X110X12 | 90 | 110 | 13 | 12 | 1 |
| 89-TTI/L-100X108X11,5 | 100 | 108 | 12,5 | 11,5 | 1 |
| 89-TTI-100X115X12 | 100 | 115 | 13 | 12 | 1 |
| 89-TTI-100X115X9 | 100 | 115 | 10 | 9 | 1 |
| 89-TTI-100X120X12 | 100 | 120 | 13 | 12 | 1 |
| 89-TTI/L-100X120X12 | 100 | 120 | 13 | 12 | 1 |
| 89-TTI-105X115X10 | 105 | 115 | 11 | 10 | 1 |
| 89-TTI/L-105X115X11,5 | 105 | 115 | 12,5 | 11,5 | 1 |
| 89-TTI-110X125X9,6 | 110 | 125 | 10,6 | 9,6 | 1 |
| 89-TTI-110X130X12 | 130 | 110 | 13 | 12 | 1 |
| 89-TTI/L-115X123X11,5 | 115 | 123 | 12,5 | 11,5 | 1 |
| 89-TTI/L-115X125X13 | 115 | 125 | 14 | 13 | 1 |
| 89-TTI/L-AI-115X125X12 | 115 | 125 | 13 | 12 | 1 |
| 89-TTI/L-120X128X11,5 | 120 | 128 | 12,5 | 11,5 | 1 |
| 89-TTI/L-120X130X11,5 | 120 | 130 | 12,5 | 11,5 | 1 |
| 89-TTI-130X138X11,5 | 130 | 138 | 12,5 | 11,5 | 1 |
| 89-TTI/L-132X140X11,5 | 132 | 140 | 12,5 | 11,5 | 1 |
| 89-TTI/L-140X148X11,5 | 140 | 148 | 12,5 | 11,5 | 1 |
| 89-TTI/L-140X150X11,5 | 140 | 150 | 12,5 | 11,5 | 1 |
| 89-TTI/L-145X155X12 | 145 | 155 | 13 | 12 | 1 |
| 89-TTI/L-150X170X15 | 150 | 170 | 16 | 15 | 1 |
| 89-TTI-140X160X12 | 140 | 160 | 13 | 12 | 1 |
| 89-TTI-150X170X12 | 150 | 170 | 13 | 12 | 1 |
| 89-TTI-150X170X15 | 150 | 170 | 16 | 15 | 1 |
| 89-TTI/L-160X170X11,5 | 160 | 170 | 12,5 | 11,5 | 1 |
| 89-TTI-160X180X12 | 160 | 180 | 13 | 12 | 1 |
| 89-TTI-160X180X15 | 160 | 180 | 16 | 15 | 1 |
| 89-TTI/L-180X195X12,5 | 180 | 195 | 13,5 | 12,5 | 1 |
| 89-TTI-190X210X15 | 190 | 210 | 16 | 15 | 1 |
| 89-TTI-220X240X15 | 220 | 240 | 16 | 15 | 1 |
| 89-TTI-240X260X15 | 240 | 260 | 16 | 15 | 1 |
