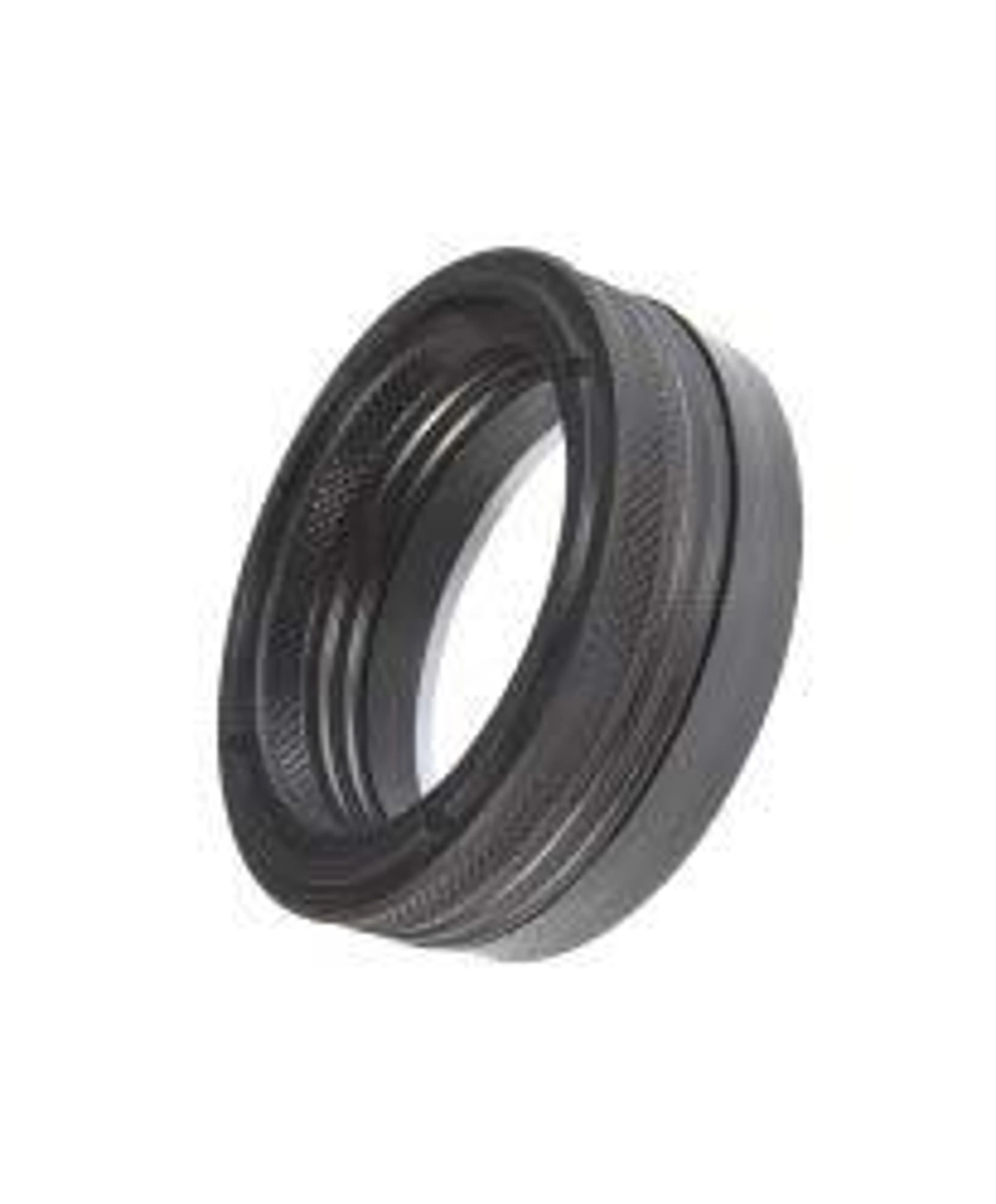

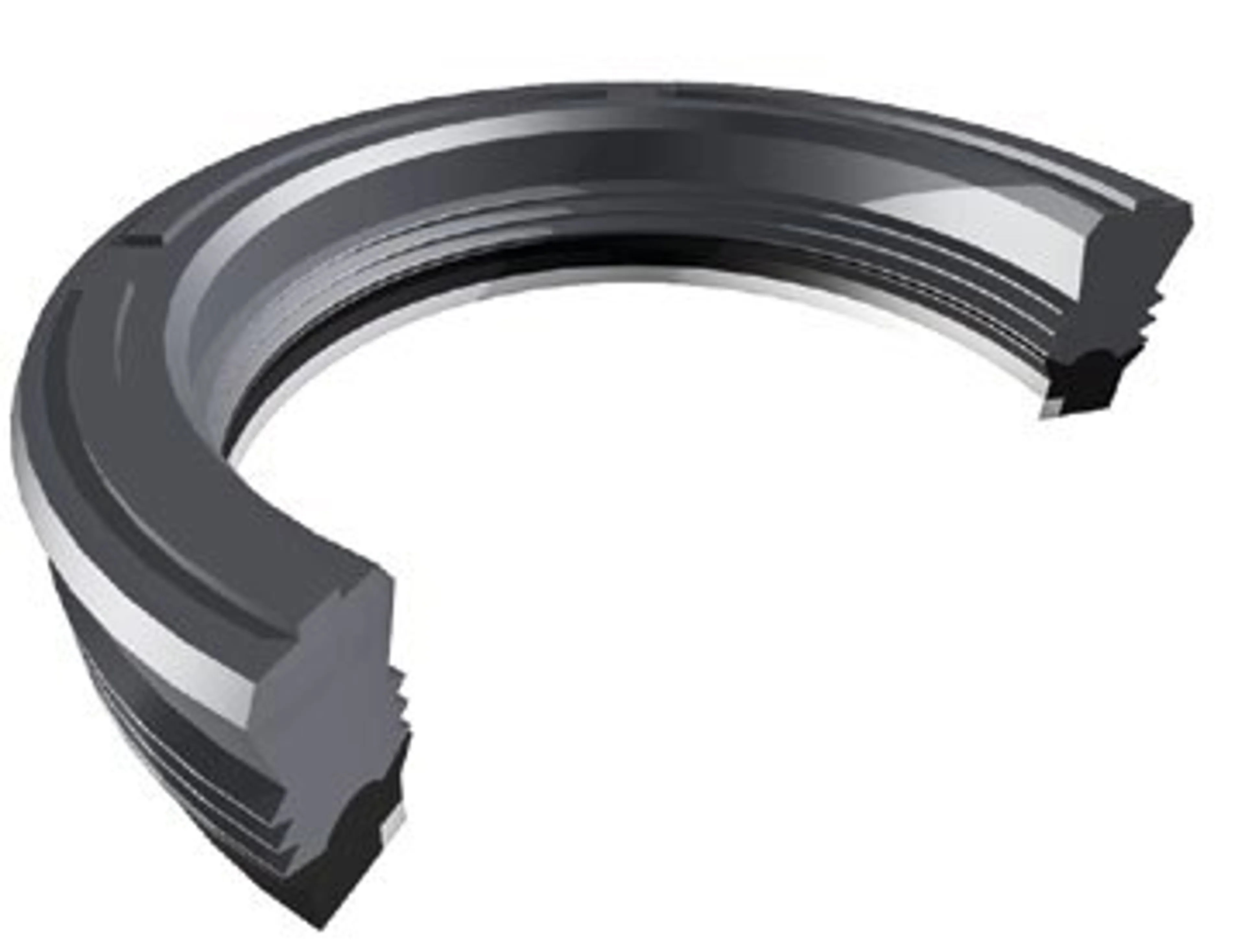

PSE - Stångtätning

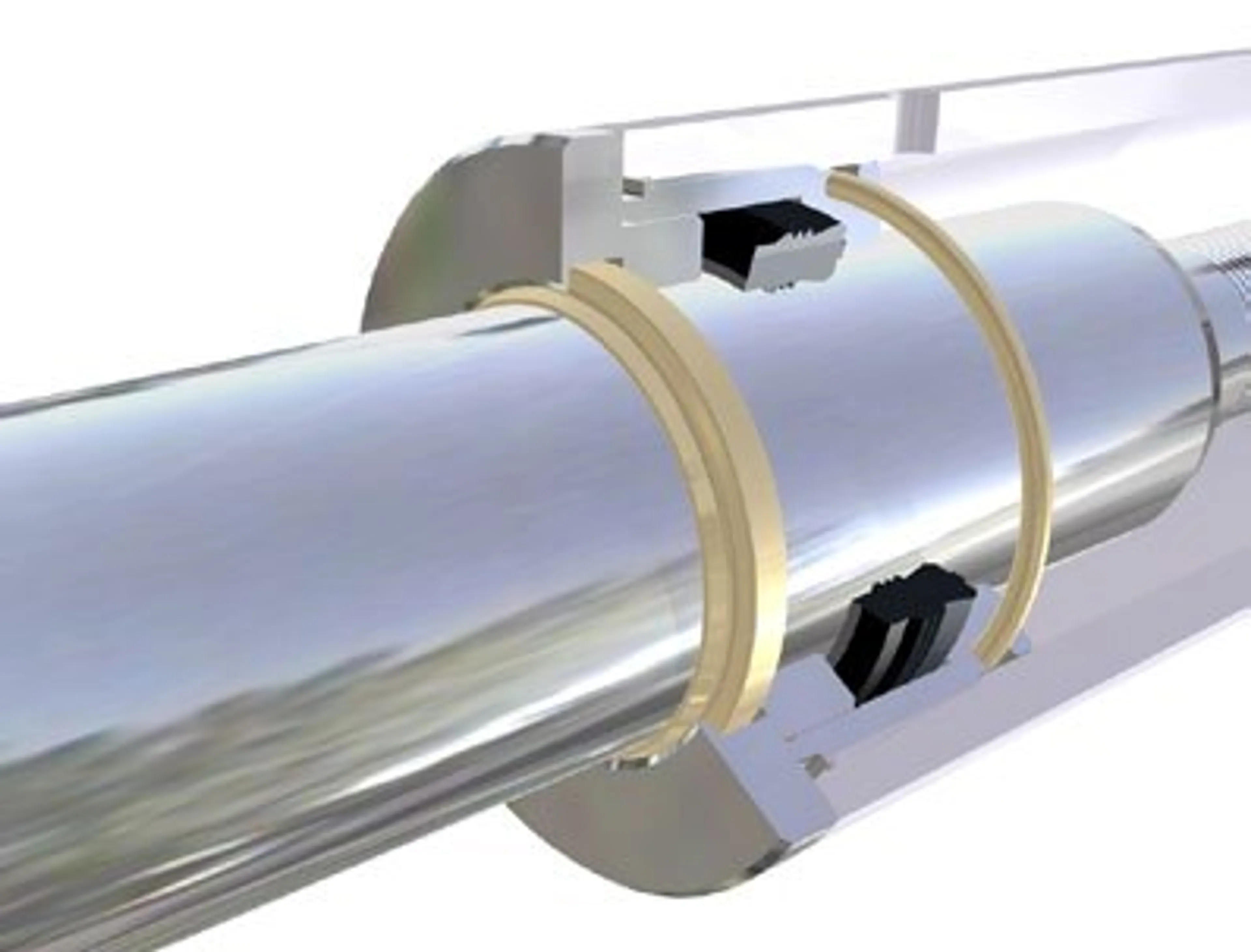

PSE-tätningsring för tätning av cylinderstången
- Guarnitec PSE
- Motsvarar bl.a. typerna K34, MGM, GM-Ei,
| Kod | Innerdiameter d (mm) | Ytterdiameter D (mm) | Tätningshöjd H (mm) | Förpackningsstorlek (KPL) |
|---|---|---|---|---|
| 89-PSE-30X43X20 | 30 | 43 | 20 | 1 |
| 89-PSE-32X47X22,5 | 32 | 47 | 22,5 | 1 |
| 89-PSE-35X50X22,5 | 35 | 50 | 22,5 | 1 |
| 89-PSE-40X50X17,5 | 40 | 50 | 17,5 | 1 |
| 89-PSE-40X55X22,6 | 40 | 55 | 22,6 | 1 |
| 89-PSE-45X60X22,5 | 45 | 60 | 22,5 | 1 |
| 89-PSE-45X65X28 | 45 | 65 | 28 | 1 |
| 89-PSE-50X63X20 | 50 | 63 | 20 | 1 |
| 89-PSE-50X65X24,5 | 50 | 65 | 24,5 | 1 |
| 89-PSE-50X70X30 | 50 | 70 | 30 | 1 |
| 89-PSE-55X70X25 | 55 | 70 | 25 | 1 |
| 89-PSE-56X71X25 | 56 | 71 | 25 | 1 |
| 89-PSE-56X76X28 | 56 | 76 | 28 | 1 |
| 89-PSE-60X77X27 | 60 | 77 | 27 | 1 |
| 89-PSE-60X80X30 | 60 | 80 | 30 | 1 |
| 89-PSE-60X80X32 | 60 | 80 | 32 | 1 |
| 89-PSE-63X83X27 | 63 | 83 | 27 | 1 |
| 89-PSE-63X83X29 | 63 | 83 | 29 | 1 |
| 89-PSE-63X83X30 | 63 | 83 | 30 | 1 |
| 89-PSE-65X85X29 | 65 | 85 | 29 | 1 |
| 89-PSE-70X85X22,5 | 70 | 85 | 22,5 | 1 |
| 89-PSE-70X85X25 | 70 | 85 | 25 | 1 |
| 89-PSE-70X90X30 | 70 | 90 | 30 | 1 |
| 89-PSE-80X100X30 | 80 | 100 | 30 | 1 |
| 89-PSE-85X105X30 | 85 | 105 | 30 | 1 |
| 89-PSE-90X105X25 | 90 | 105 | 25 | 1 |
| 89-PSE-90X110X30 | 90 | 110 | 30 | 1 |
| 89-PSE-100X120X30 | 100 | 120 | 30 | 1 |
| 89-PSE-105X125X30 | 105 | 125 | 30 | 1 |
| 89-PSE-110X130X32,5 | 110 | 130 | 32,5 | 1 |
| 89-PSE-120X140X30 | 120 | 140 | 30 | 1 |
| 89-PSE-130X150X28 | 130 | 150 | 28 | 1 |
| 89-PSE-140X160X28 | 140 | 160 | 28 | 1 |
| 89-PSE-140X160X30 | 140 | 160 | 30 | 1 |
| 89-PSE-150X170X28 | 150 | 170 | 28 | 1 |
| 89-PSE-160X180X28 | 160 | 180 | 28 | 1 |
| 89-PSE-170X195X35 | 170 | 195 | 35 | 1 |
| 89-PSE-180X205X35 | 180 | 205 | 35 | 1 |
| 89-PSE-280X305X35 | 280 | 305 | 35 | 1 |
