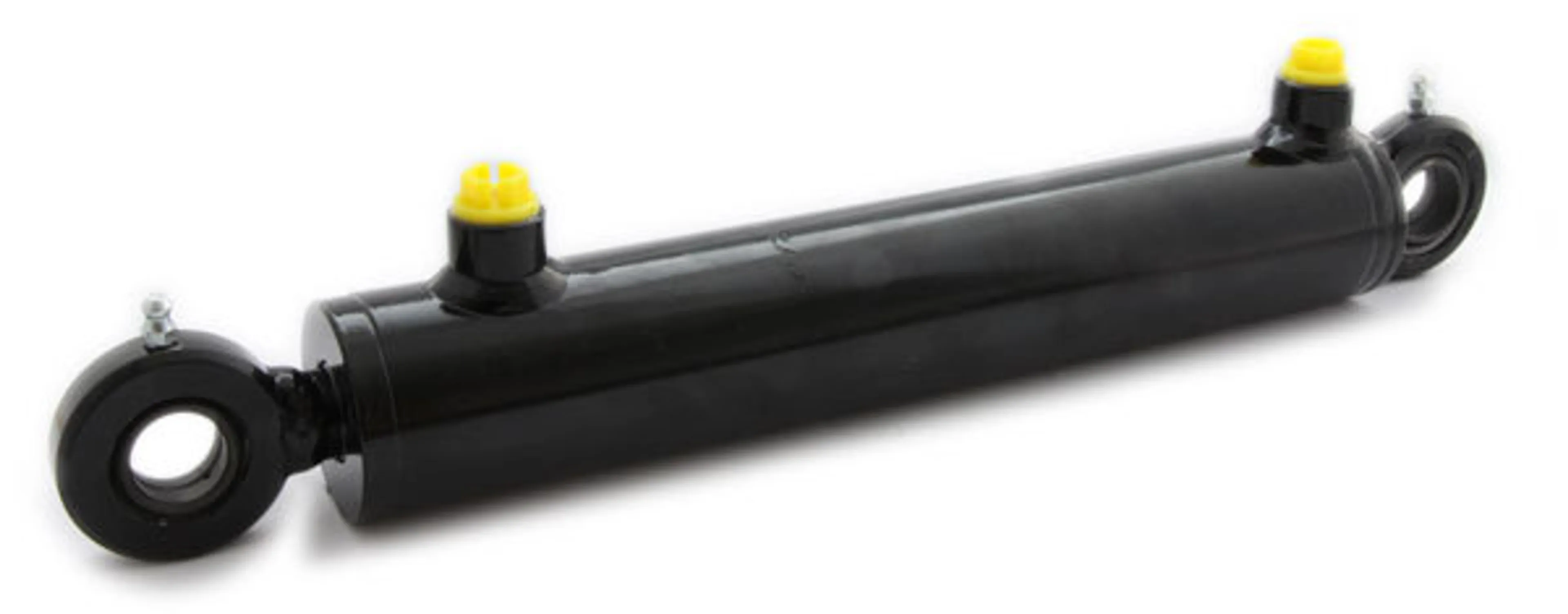

Hydraulcylindrar med ledlagerinfästning
Hydraulcylindrarna levereras som standard dubbelverkande med ledlagerinfästning. Cylindern kan göras enkelverkande genom att montera ett avluftningsfilter i den ena gänganslutningen. Andra modeller finns även på beställning.
- standardslaglängder i steg om 50mm
- Max. arbetstryck 250bar
Produktkod t.ex. HS-100x50x0200,
där 100 är cylinderns kolvdiameter (100mm), 50 är cylinderns kolvstångsdiameter (50mm) och 0200 är cylinderns slaglängd (200mm)
Exakta monteringsmått m.m. finns i bilagan!
| Kod | Slaglängd (mm) | Anslutningsgängor (BSP) | Ledlager Ø (mm) | Monteringsmått | Förpackningsstorlek (KPL) | 3D |
|---|---|---|---|---|---|---|
| HS-25X16X0050M | 50 | 1/4" | 15 | 189mm | 1 | |
| HS-25X16X0100M | 100 | 1/4" | 15 | 239mm | 1 | |
| HS-25X16X0150M | 150 | 1/4" | 15 | 289mm | 1 | |
| HS-25X16X0200M | 200 | 1/4" | 15 | 339mm | 1 | |
| HS-25X16X0250M | 250 | 1/4" | 15 | 389mm | 1 | |
| HS-25X16X0300M | 300 | 1/4" | 15 | 439mm | 1 | |
| HS-25X16X0350M | 350 | 1/4" | 15 | 489mm | 1 | |
| HS-25X16X0400M | 400 | 1/4" | 15 | 539mm | 1 | |
| HS-25X16X0450M | 450 | 1/4" | 15 | 589mm | 1 | |
| HS-25X16X0500M | 500 | 1/4" | 15 | 639mm | 1 | |
| HS-25X16X0600M | 600 | 1/4" | 15 | 739mm | 1 | |
| HS-32X20X0050M | 50 | 1/4" | 15 | 189mm | 1 | |
| HS-32X20X0100M | 100 | 1/4" | 15 | 239mm | 1 | |
| HS-32X20X0150M | 150 | 1/4" | 15 | 289mm | 1 | |
| HS-32X20X0200M | 200 | 1/4" | 15 | 339mm | 1 | |
| HS-32X20X0250M | 250 | 1/4" | 15 | 389mm | 1 | |
| HS-32X20X0300M | 300 | 1/4" | 15 | 439mm | 1 | |
| HS-32X20X0350M | 350 | 1/4" | 15 | 489mm | 1 | |
| HS-32X20X0400M | 400 | 1/4" | 15 | 539mm | 1 | |
| HS-32X20X0450M | 450 | 1/4" | 15 | 589mm | 1 | |
| HS-32X20X0500M | 500 | 1/4" | 15 | 639mm | 1 | |
| HS-32X20X0600M | 600 | 1/4" | 15 | 739mm | 1 | |
| HS-32X20X0700M | 700 | 1/4" | 15 | 839mm | 1 | |
| HS-32X20X0800M | 800 | 1/4" | 15 | 939mm | 1 | |
| HS-32X20X1000M | 1000 | 1/4" | 15 | 1139mm | 1 | |
| HS-32X20X1100M | 1100 | 1/4" | 15 | 1239mm | 1 | |
| HS-40X20X0050M | 50 | 1/4" | 20 | 200mm | 1 | |
| HS-40X20X0080M | 80 | 1/4" | 20 | 230mm | 1 | |
| HS-40X20X0100M | 100 | 1/4" | 20 | 250mm | 1 | |
| HS-40X20X0150M | 150 | 1/4" | 20 | 300mm | 1 | |
| HS-40X20X0200M | 200 | 1/4" | 20 | 350mm | 1 | |
| HS-40X20X0300M-480 | 300 | 1/4" | 20 | 480mm | 1 | |
| HS-40X25X0250M | 250 | 1/4" | 20 | 400mm | 1 | |
| HS-40X25X0300M | 300 | 1/4" | 20 | 450mm | 1 | |
| HS-40X25X0350M | 350 | 1/4" | 20 | 500mm | 1 | |
| HS-40X25X0400M | 400 | 1/4" | 20 | 550mm | 1 | |
| HS-40X25X0450M | 450 | 1/4" | 20 | 600mm | 1 | |
| HS-40X25X0500M | 500 | 1/4" | 20 | 650mm | 1 | |
| HS-40X25X0550M | 550 | 1/4" | 20 | 700mm | 1 | |
| HS-40X25X0600M | 600 | 1/4" | 20 | 750mm | 1 | |
| HS-40X25X0650M | 650 | 1/4" | 20 | 800mm | 1 | |
| HS-40X25X0700M | 700 | 1/4" | 20 | 850mm | 1 | |
| HS-40X25X0750M | 750 | 1/4" | 20 | 900mm | 1 | |
| HS-40X25X0800M | 800 | 1/4" | 20 | 950mm | 1 | |
| HS-40X25X0900M | 900 | 1/4" | 20 | 1050mm | 1 | |
| HS-40X25X1000M | 1000 | 1/4" | 20 | 1150mm | 1 | |
| HS-40X25X1100M | 1100 | 1/4" | 20 | 1250mm | 1 | |
| HS-40X25X1200M | 1200 | 1/4" | 20 | 1350mm | 1 | |
| HS-50X25X0200M | 200 | 3/8" | 25 | 392mm | 1 | |
| HS-50X25X0300M | 300 | 3/8" | 25 | 492mm | 1 | |
| HS-50X30X0050M | 50 | 3/8" | 25 | 242mm | 1 | |
| HS-50X30X0100M | 100 | 3/8" | 25 | 292mm | 1 | |
| HS-50X30X0120M | 120 | 3/8" | 25 | 312mm | 1 | |
| HS-50X30X0150M | 150 | 3/8" | 25 | 342mm | 1 | |
| HS-50X30X0200M | 200 | 3/8" | 25 | 392mm | 1 | |
| HS-50X30X0250M | 250 | 3/8" | 25 | 442mm | 1 | |
| HS-50X30X0300M | 300 | 3/8" | 25 | 492mm | 1 | |
| HS-50X30X0350M | 350 | 3/8" | 25 | 542mm | 1 | |
| HS-50X30X0350EGM | 350 | 3/8" | 25 | 570mm | 1 | |
| HS-50X30X0400M | 400 | 3/8" | 25 | 592mm | 1 | |
| HS-50X30X0450M | 450 | 3/8" | 25 | 642mm | 1 | |
| HS-50X30X0450M-725 | 450 | 3/8" | 25 | 725mm | 1 | |
| HS-50X30X0500M | 500 | 3/8" | 25 | 692mm | 1 | |
| HS-50X30X0550M | 550 | 3/8" | 25 | 742mm | 1 | |
| HS-50X30X0600M | 600 | 3/8" | 25 | 792mm | 1 | |
| HS-50X30X0650M | 650 | 3/8" | 25 | 842mm | 1 | |
| HS-50X30X0700M | 700 | 3/8" | 25 | 892mm | 1 | |
| HS-50X30X0800M | 800 | 3/8" | 25 | 992mm | 1 | |
| HS-50X30X0900M | 900 | 3/8" | 25 | 1092mm | 1 | |
| HS-50X30X1000M | 1000 | 3/8" | 25 | 1192mm | 1 | |
| HS-50X30X1500M | 1500 | 3/8" | 25 | 1692mm | 1 | |
| HS-60X30X0100M | 100 | 3/8" | 25 | 303mm | 1 | |
| HS-60X30X0150M | 150 | 3/8" | 25 | 353mm | 1 | |
| HS-60X30X0200M | 200 | 3/8" | 25 | 403mm | 1 | |
| HS-60X30X0250M | 250 | 3/8" | 25 | 453mm | 1 | |
| HS-60X30X0300M | 300 | 3/8" | 25 | 503mm | 1 | |
| HS-60X30X0350M | 350 | 3/8" | 25 | 553mm | 1 | |
| HS-60X30X0400M | 400 | 3/8" | 25 | 603mm | 1 | |
| HS-60X30X0450M | 450 | 3/8" | 25 | 653mm | 1 | |
| HS-60X30X0500M | 500 | 3/8" | 25 | 703mm | 1 | |
| HS-60X30X0550M | 550 | 3/8" | 25 | 753mm | 1 | |
| HS-60X30X0600M | 600 | 3/8" | 25 | 803mm | 1 | |
| HS-60X30X0650M | 650 | 3/8" | 25 | 853mm | 1 | |
| HS-60X30X0700M | 700 | 3/8" | 25 | 903mm | 1 | |
| HS-60X30X0800M | 800 | 3/8" | 25 | 1003mm | 1 | |
| HS-60X30X0900M | 900 | 3/8" | 25 | 1103mm | 1 | |
| HS-63X40X0100M | 100 | 3/8" | 30 | 308mm | 1 | |
| HS-63X40X0150M | 150 | 3/8" | 30 | 358mm | 1 | |
| HS-63X40X0200M | 200 | 3/8" | 30 | 408mm | 1 | |
| HS-63X40X0250M | 250 | 3/8" | 30 | 458mm | 1 | |
| HS-63X40X0300M | 300 | 3/8" | 30 | 508mm | 1 | |
| HS-63X40X0350M | 350 | 3/8" | 30 | 558mm | 1 | |
| HS-63X40X0400M | 400 | 3/8" | 30 | 608mm | 1 | |
| HS-63X40X0450M | 450 | 3/8" | 30 | 658mm | 1 | |
| HS-63X40X0500M | 500 | 3/8" | 30 | 708mm | 1 | |
| HS-63X40X0550M | 550 | 3/8" | 30 | 758mm | 1 | |
| HS-63X40X0600M | 600 | 3/8" | 30 | 808mm | 1 | |
| HS-63X40X0650M | 650 | 3/8" | 30 | 858mm | 1 | |
| HS-63X40X0700M | 700 | 3/8" | 30 | 908mm | 1 | |
| HS-63X40X0800M | 800 | 1/2" | 30 | 1008mm | 1 | |
| HS-63X40X0900M | 900 | 3/8" | 30 | 1108mm | 1 | |
| HS-63X40X1000M | 1000 | 3/8" | 30 | 1208mm | 1 | |
| HS-70X40X0100M | 100 | 1/2" | 30 | 308mm | 1 | |
| HS-70X40X0150M | 150 | 1/2" | 30 | 358mm | 1 | |
| HS-70X40X0200M | 200 | 1/2" | 30 | 408mm | 1 | |
| HS-70X40X0250M | 250 | 1/2" | 30 | 458mm | 1 | |
| HS-70X40X0300M | 300 | 1/2" | 30 | 508mm | 1 | |
| HS-70X40X0350M | 350 | 1/2" | 30 | 558mm | 1 | |
| HS-70X40X0400M | 400 | 1/2" | 30 | 608mm | 1 | |
| HS-70X40X0450M | 450 | 1/2" | 30 | 658mm | 1 | |
| HS-70X40X0500M | 500 | 1/2" | 30 | 708mm | 1 | |
| HS-70X40X0550M | 550 | 1/2" | 30 | 758mm | 1 | |
| HS-70X40X0600M | 600 | 1/2" | 30 | 808mm | 1 | |
| HS-70X40X0650M | 650 | 1/2" | 30 | 858mm | 1 | |
| HS-70X40X0700M | 700 | 1/2" | 30 | 908mm | 1 | |
| HS-70X40X0800M | 800 | 1/2" | 30 | 1008mm | 1 | |
| HS-70X40X0900M | 900 | 1/2" | 30 | 1108mm | 1 | |
| HS-70X40X1000M | 1000 | 1/2" | 30 | 1208mm | 1 | |
| HS-70X40X1100M | 1100 | 1/2" | 30 | 1308mm | 1 | |
| HS-80X40X0100M | 100 | 1/2" | 35 | 323mm | 1 | |
| HS-80X40X0150M | 150 | 1/2" | 35 | 373mm | 1 | |
| HS-80X40X0200M | 200 | 1/2" | 35 | 423mm | 1 | |
| HS-80X40X0250M | 250 | 1/2" | 35 | 473mm | 1 | |
| HS-80X40X0300M | 300 | 1/2" | 35 | 523mm | 1 | |
| HS-80X50X0200M | 200 | 1/2" | 35 | 423mm | 1 | |
| HS-80X50X0250M | 250 | 1/2" | 35 | 473mm | 1 | |
| HS-80X50X0300M | 300 | 1/2" | 35 | 523mm | 1 | |
| HS-80X50X0300M-CON | 300 | 1/2" | 40 | 574mm | 1 | |
| HS-80X50X0350M | 350 | 1/2" | 35 | 573mm | 1 | |
| HS-80X50X0400M | 400 | 1/2" | 35 | 623mm | 1 | |
| HS-80X50X0450M | 450 | 1/2" | 35 | 673mm | 1 | |
| HS-80X50X0500M | 500 | 1/2" | 35 | 723mm | 1 | |
| HS-80X50X0550M | 550 | 1/2" | 35 | 773mm | 1 | |
| HS-80X50X0600M | 600 | 1/2" | 35 | 823mm | 1 | |
| HS-80X50X0650M | 650 | 1/2" | 35 | 873mm | 1 | |
| HS-80X50X0700M | 700 | 1/2" | 35 | 923mm | 1 | |
| HS-80X50X0800M | 800 | 1/2" | 35 | 1023mm | 1 | |
| HS-80X50X0900M | 900 | 1/2" | 35 | 1123mm | 1 | |
| HS-80X50X1000M | 1000 | 1/2" | 35 | 1223mm | 1 | |
| HS-80X50X1100M | 1100 | 1/2" | 35 | 1323mm | 1 | |
| HS-80X50X1200M | 1200 | 1/2" | 35 | 1423mm | 1 | |
| HS-90X60X0200M | 200 | 1/2" | 40 | 444mm | 1 | |
| HS-90X60X0250M | 250 | 1/2" | 40 | 494mm | 1 | |
| HS-90X60X0300M | 300 | 1/2" | 40 | 544mm | 1 | |
| HS-90X60X0350M | 350 | 1/2" | 40 | 594mm | 1 | |
| HS-90X60X0400M | 400 | 1/2" | 40 | 644mm | 1 | |
| HS-90X60X0450M | 450 | 1/2" | 40 | 694mm | 1 | |
| HS-90X60X0500M | 500 | 1/2" | 40 | 744mm | 1 | |
| HS-90X60X0550M | 550 | 1/2" | 40 | 794mm | 1 | |
| HS-90X60X0600M | 600 | 1/2" | 40 | 844mm | 1 | |
| HS-90X60X0700M | 700 | 1/2" | 40 | 944mm | 1 | |
| HS-90X60X0800M | 800 | 1/2" | 40 | 1044mm | 1 | |
| HS-90X60X0900M | 900 | 1/2" | 40 | 1144mm | 1 | |
| HS-100X60X0100M | 100 | 1/2" | 50 | 371mm | 1 | |
| HS-100X60X0150M | 150 | 1/2" | 50 | 421mm | 1 | |
| HS-100X60X0200M | 200 | 1/2" | 50 | 471mm | 1 | |
| HS-100X60X0250M | 250 | 1/2" | 50 | 521mm | 1 | |
| HS-100X60X0300M | 300 | 1/2" | 50 | 571mm | 1 | |
| HS-100X60X0350M | 350 | 1/2" | 50 | 621mm | 1 | |
| HS-100X60X0400M | 400 | 1/2" | 50 | 671mm | 1 | |
| HS-100X60X0450M | 450 | 1/2" | 50 | 721mm | 1 | |
| HS-100X60X0500M | 500 | 1/2" | 50 | 771mm | 1 | |
| HS-100X60X0600M | 600 | 1/2" | 50 | 871mm | 1 | |
| HS-100X60X0650M | 650 | 1/2" | 50 | 921mm | 1 | |
| HS-100X60X0700M | 700 | 1/2" | 50 | 971mm | 1 | |
| HS-100X60X0800M | 800 | 1/2" | 50 | 1071mm | 1 | |
| HS-100X60X0900M | 900 | 1/2" | 50 | 1171mm | 1 | |
| HS-100X60X1000M | 1000 | 1/2" | 50 | 1271mm | 1 | |
| HS-100X60X1100M | 1100 | 1/2" | 50 | 1371mm | 1 | |
| HS-100X60X1200M | 1200 | 1/2" | 50 | 1471mm | 1 | |
| HS-80X50X0150M | 1 |
