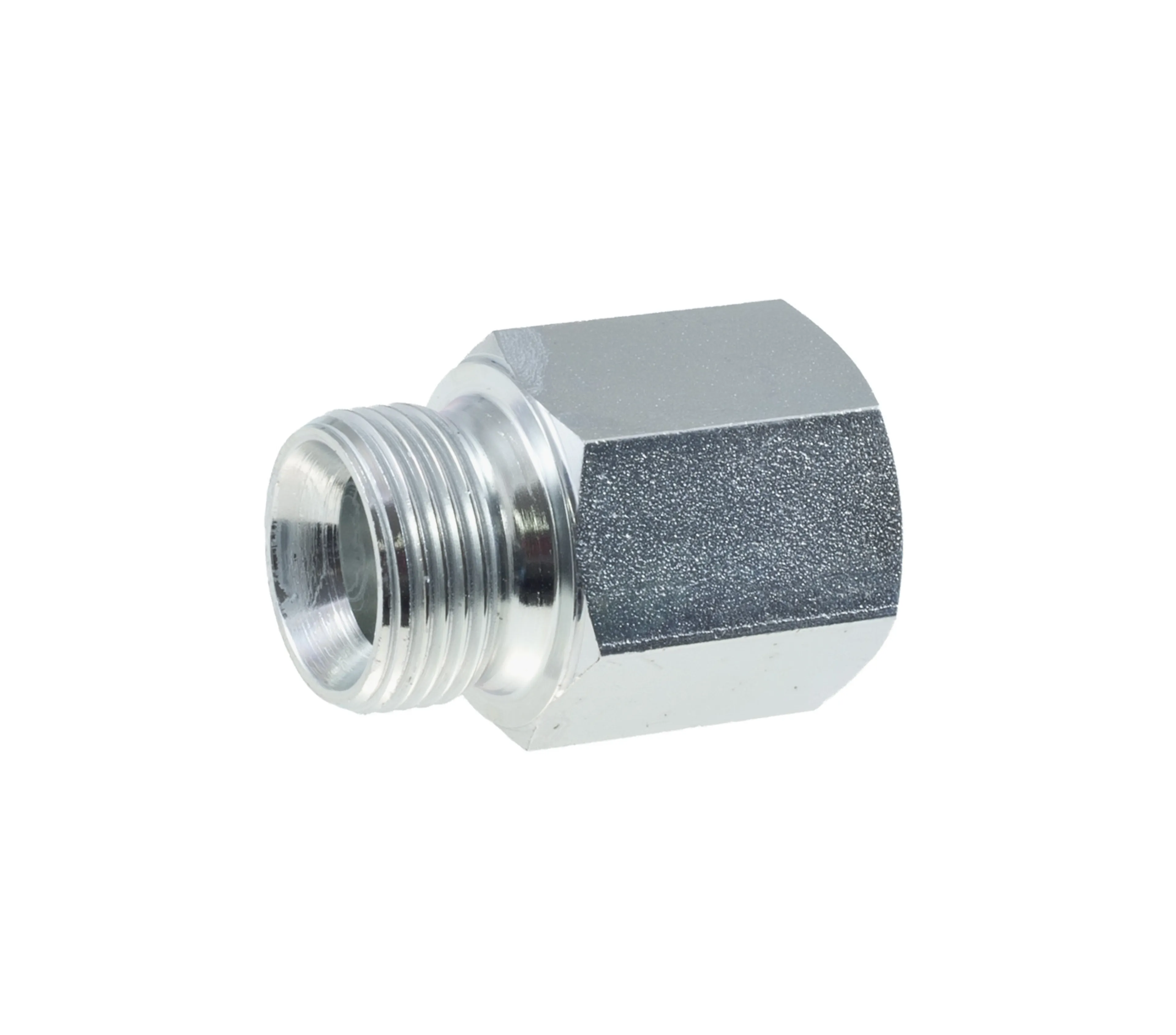

4015 - Förlängningsnippel BSP UG/IG
| Kod | Utvändig gänga (BSP) | Invändig gänga (BSP) | Längd L (mm) | Förpackningsstorlek (KPL) | 3D |
|---|
| 4015-02 | 1/8 | 1/8 | 30,5 | 50 | |
| 4015-02-04 | 1/8 | 1/4 | 28 | 1 | |
| 4015-04 | 1/4 | 1/4 | 33 | 1 | |
| 4015-06 | 3/8 | 3/8 | 35 | 150 | |
| 4015-06-L54 | 3/8 | 3/8 | 54 | 150 | |
| 4015-06-04 | 3/8 | 1/4 | 35 | 150 | |
| 4015-08 | 1/2 | 1/2 | 35 | 50 | |
| 4015-08-L40 | 1/2 | 1/2 | 40 | 50 | |
| 4015-08-L45 | 1/2 | 1/2 | 45 | 50 | |
| 4015-08-04 | 1/2 | 1/4 | 41 | 75 | |
| 4015-08-06 | 1/2 | 3/8 | 41 | 75 | |
| 4015-08-10 | 1/2 | 5/8 | 40 | 1 | |
| 4015-08-12 | 1/2 | 3/4 | 46 | 50 | |
| 4015-12 | 3/4 | 3/4 | 48 | 40 | |
| 4015-12-06 | 3/4 | 3/8 | 42 | 35 | |
| 4015-12-08 | 3/4 | 1/2 | 43 | 40 | |
| 4015-12-10 | 3/4 | 5/8 | 40 | 1 | |
| 4015-16 | 1 | 1 | 54 | 25 | |
| 4015-16-06 | 1 | 3/8 | 49,5 | 15 | |
| 4015-16-08 | 1 | 1/2 | 49,5 | 15 | |
| 4015-16-12 | 1 | 3/4 | 64 | 20 | |
| 4015-20 | 1 1/4 | 1 1/4 | 62 | 15 | |
| 4015-20-16 | 1 1/4 | 1 | 61 | 10 | |
| 4015-24 | 1 1/2 | 1 1/2 | 65 | 15 | |
| 4015-24-20 | 1 1/2 | 1 1/4 | 62 | 10 | |
| 4015-32 | 2 | 2 | 57 | 15 | |
| 4015-32-16 | 2 | 1 | 57 | 15 | |
| 4015-32-40 | 2 | 2 1/2 | 70 | 1 | |
| 4015-40-32 | 2 1/2 | 2 | 72 | 1 | |
| 4015-48-24 | 3 | 1 1/2 | 45 | 1 | |
| 4015-48-32 | 3 | 2 | 45 | 1 | |
